6
IN
OUT

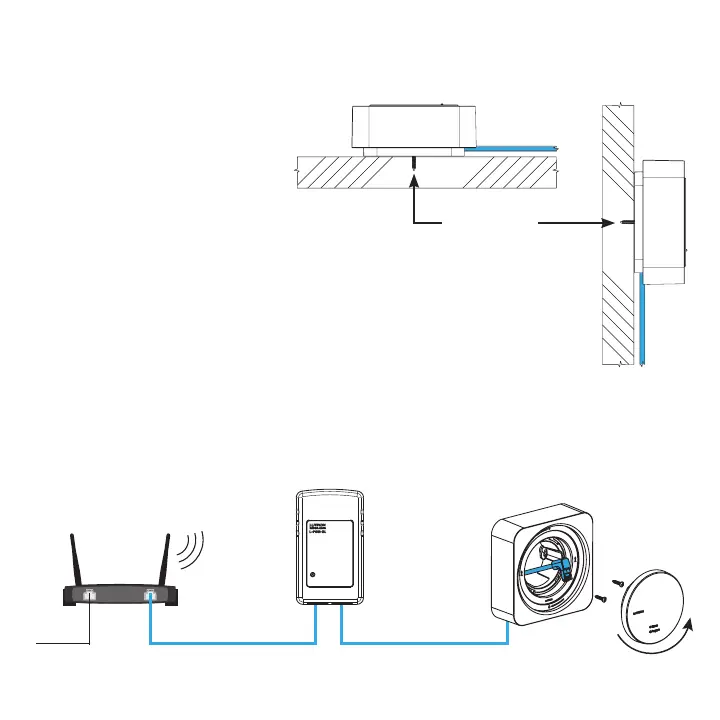

Step 4c — Installation using the Shelf-Mount Adapter
WiFi router
PoE injector
Wireless processor
Ethernet cable (included)
6 ft (1.8 m)
Ethernet cable (included)
3 ft (1 m)
Internet
VerticalHorizontal
Wall
Level
Surface
#6 (M3) screw
recommended
(2 included)
• Hold the adapter to the wall in
the desired location
• Using a pencil, mark the location
of the screw holes
• If using drywall, prep for anchors
• Partially drive two (2) screws
at least 1/4 in (6.3 mm) into the
wall or the drywall anchors
• Feed right-angle connector of
the 6 ft (1.8 m) Ethernet cable
through the adapter BEFORE
tightening screws
• Tighten screws
• Select and attach the
appropriate region-specific
adapter plug to the PoE injector
• Plug in PoE injector
• Attach processor to adapter
To Next Page
