Radius A Series - Single Action Actuator Springs; Spring Set Configurations

8
RADIUS LLC
4922 Technical Drive
Milford, Mi 48381
SERIES A
OPERATION AND
INSTRUCTION MANUAL
SINGLE ACTION ACTUATOR
When it is necessary to replace the springs of a single action actuator, make sure that the springs are
installed in the same position as before.

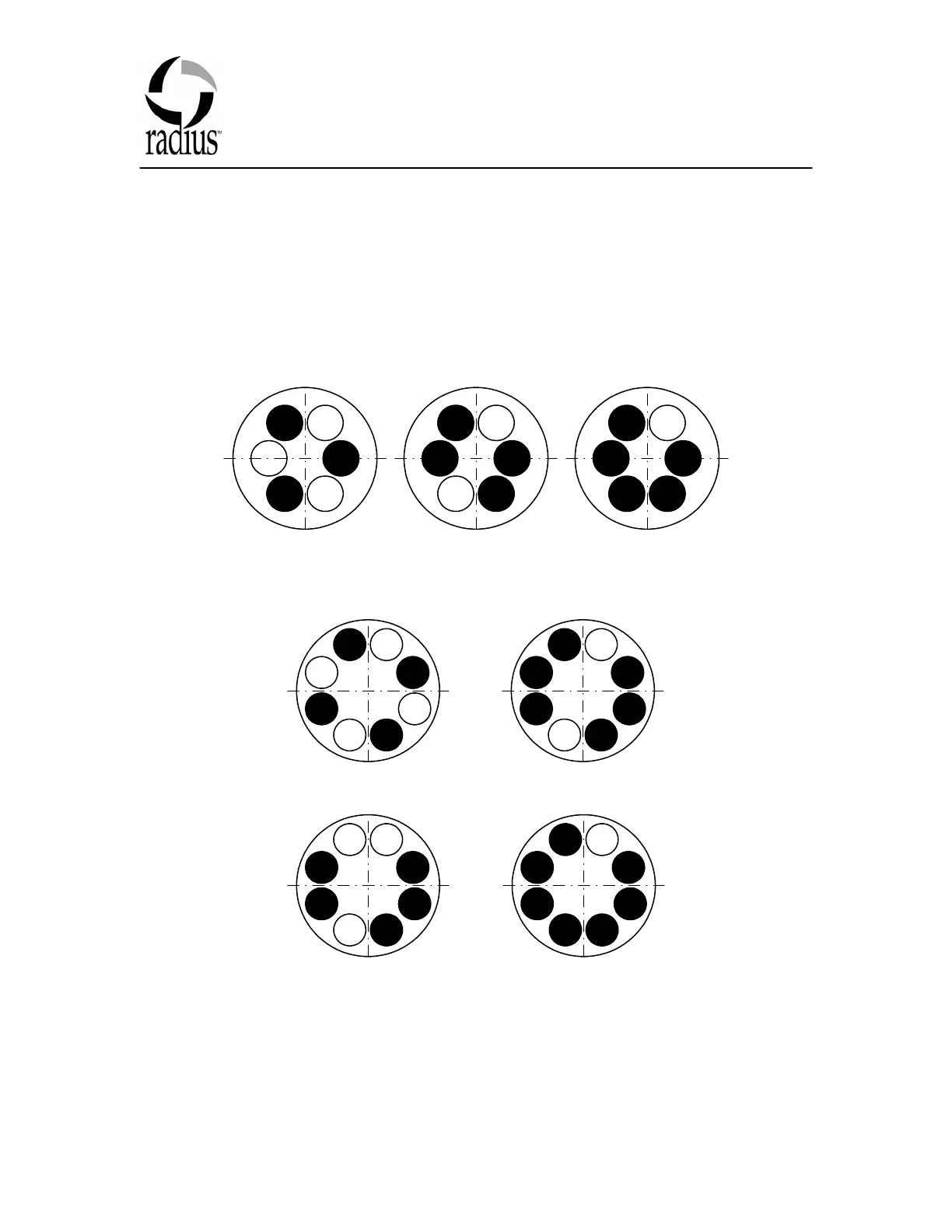

When less springs than usual are used, they must be installed as shown below.
AS005A / (AS003A)
6(3) Spring Set 8(4) Spring Set 10(5) Spring Set
AS008A / AS012A / AS020A
8 Spring Set 12 Spring Set
10 Spring Set
14 Spring Set
