ESC Programming
1 2 3 4 5 6 7 8
1. Running Mode
Forward
with Brake
Forward/Reverse
with Brake
2. Drag Brake Force 0%
5%
10% 15% 20% 25% 30% 40%
3. Low Voltage
Cut-Off Threshold
Non-Protection
2.6V
/Cell
2.8V
/Cell
3.0V
/Cell
3.2V
/Cell
3.4V
/Cell
4.Start Mode
(Punch)
Level1
(Soft)
Level2 Level3
Level4
(Very Aggressive)
5. Maximum Brake Force 25% 50% 75% 100%
Programmable
Items
Programmable Value

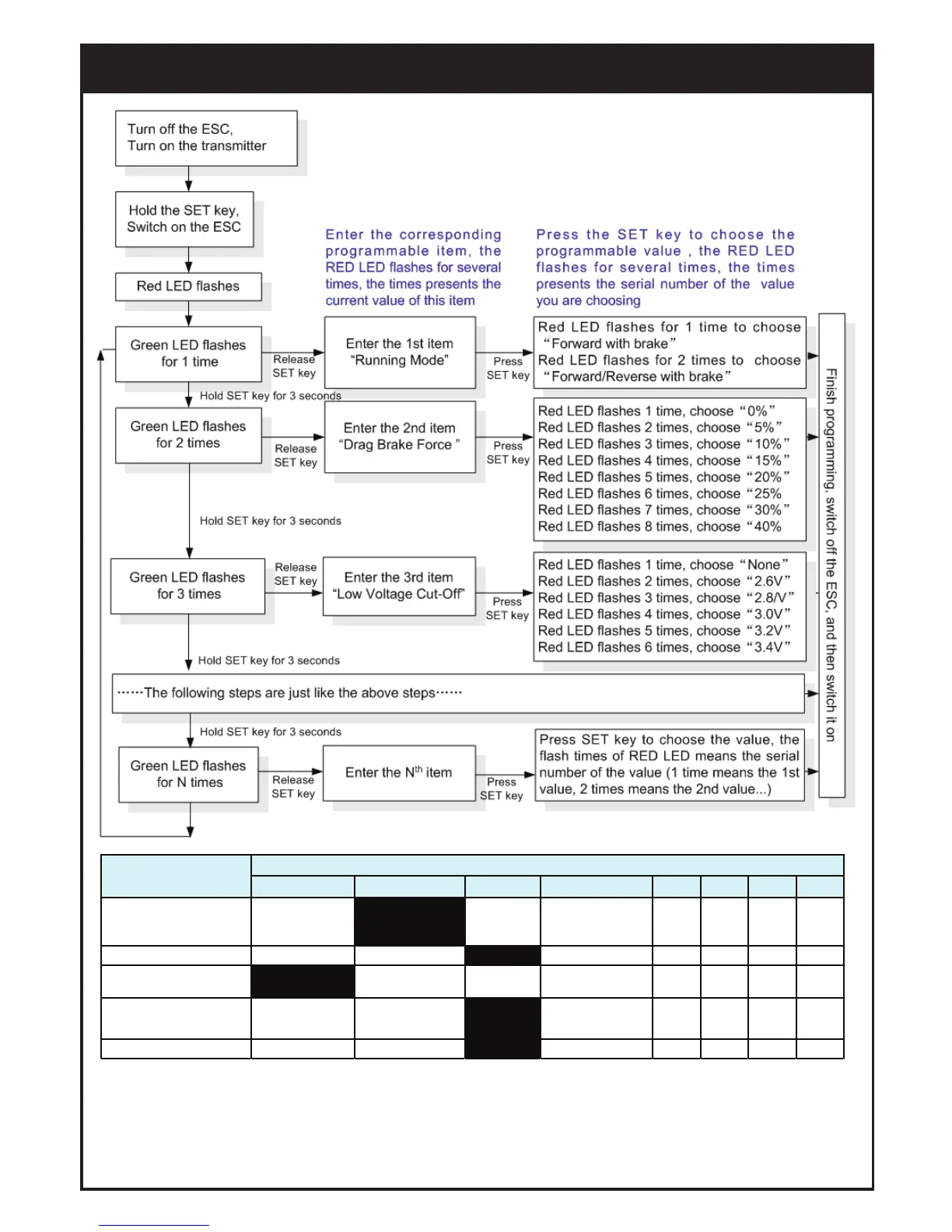

In the program process, the motor will emit “Beep” tone at the same time when the LED is flashing.
We use a long time flash and long “Beep---” tone to represent number “5”, so it is easy to identify the items of the big number.
For example, if the LED flashes as the following:
A long time flash” (Motor sounds “B---”) = the No. 5 Item
A long time flash + a short time flash” (Motor sounds “B---B”) = the No. 6 Item
A long time flash + 2 short times flash” (Motor sounds “B---BB”) = the No. 7 Item
