STARTING AND OPERATING 191

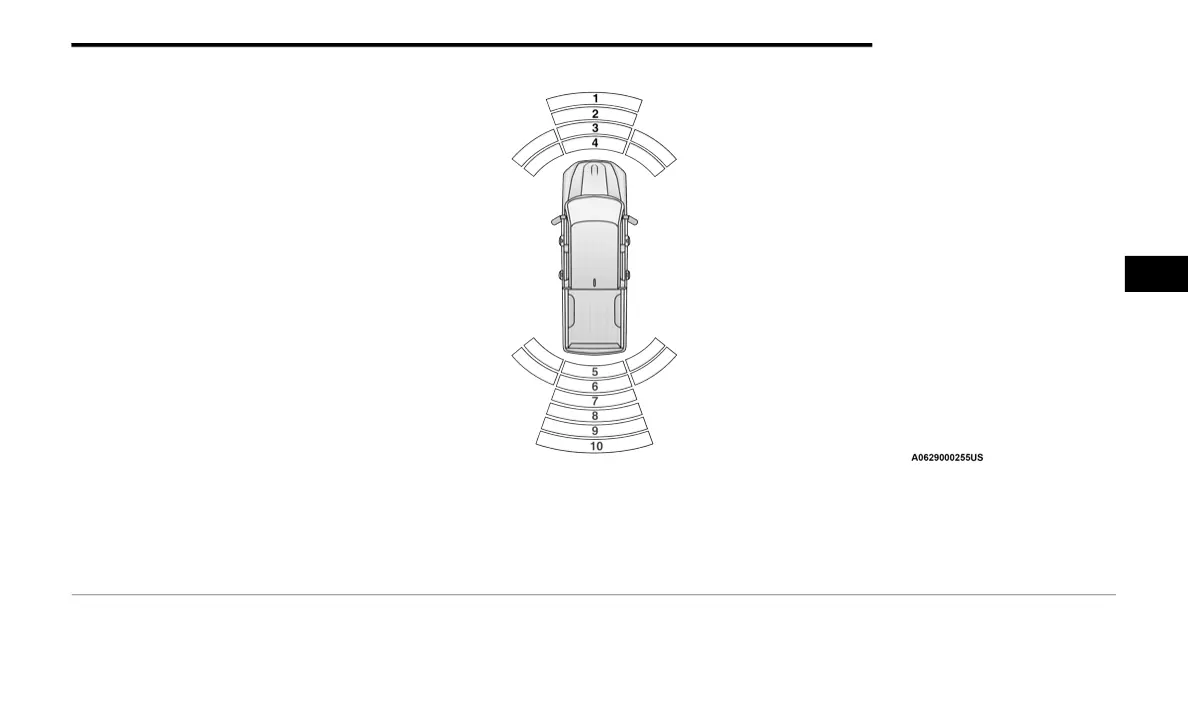

Front/Rear ParkSense Arcs
The vehicle is close to the obstacle when the display shows one flashing arc and sounds a continuous tone. The following chart shows the warning alert
operation when the system is detecting an obstacle:
1 — No Tone/Solid Arc 6 — Fast Tone/Flashing Arc
2 — No Tone/Flashing Arc 7 — Fast Tone/Flashing Arc
3 — Fast Tone/Flashing Arc 8 — Slow Tone/Solid Arc
4 — Continuous Tone/Solid Arc 9 — Slow Tone/Solid Arc
5 — Continuous Tone/Solid Arc 10 — Single 1/2 Second Tone/Solid Arc
4
21_DT_OM_EN_USC_t.book Page 191
