Replacing Exterior Bulbs
BASE QUAD: LOW BEAM HEADLAMP, HIGH
BEAM HEADLAMP, FRONT PARK AND TURN —
IF EQUIPPED
Low Beam
See the following steps to replace:
1. Open the hood.
2. Disconnect and isolate the negative battery cable.
3. Reach into the front wheel house ahead of the front
wheel, remove the fastener, and lift the cover over
the access hole in the front of the wheel house splash
shield. Access to the rear of the lamp can be gained
through this access hole.

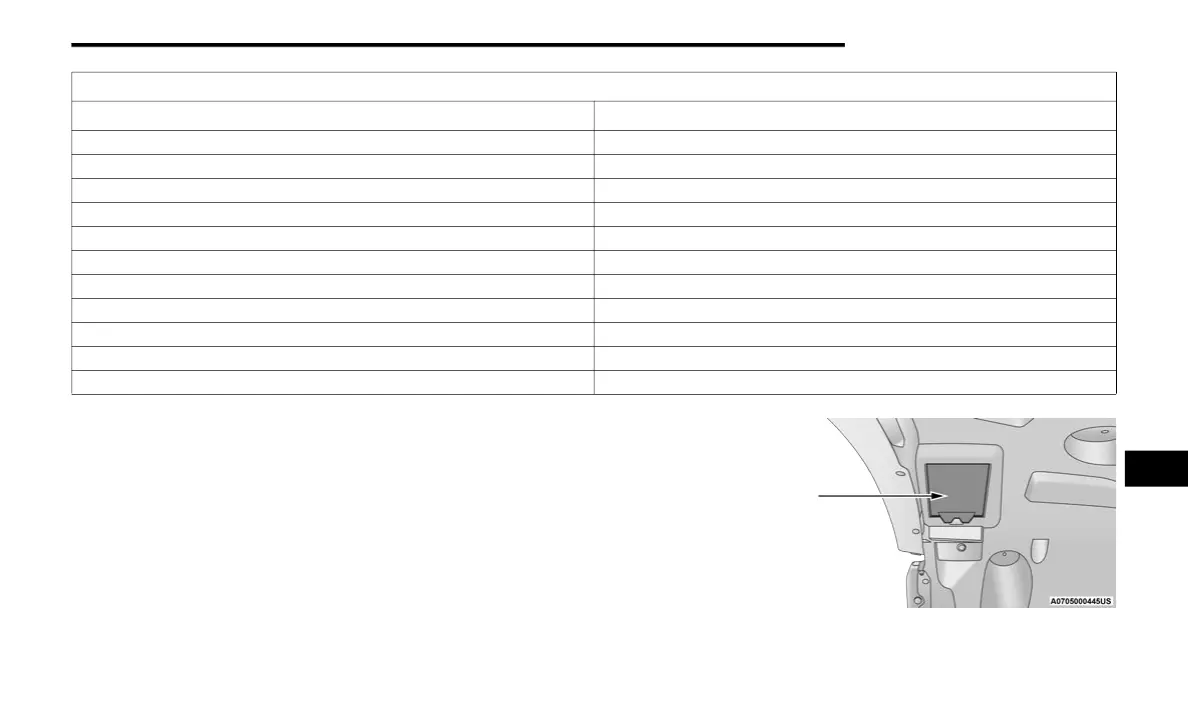

Splash Shield Access Cover
Front Fog Lamps (LED Headlamps) LED
Side Indicators (Front And Side View Mirror) LED
Base Rear Tail/Turn and Stop Lamp 3157K
Premium Rear Tail/Turn and Stop Lamp LED
Base Tail/Backup Lamp W21/5W
Center High Mounted Stop Lamp (CHMSL) 921
Cab Roof Marker Lamps LED
Rear Lamp Bar ID Marker Lamp LED
Side Marker Lamps (Dual Rear Wheels) LED
Base Turn/Tail Lamp PWY24W
Rear License Plate Lamp LED
