CD Triggers
• e Empath mixer provides two CD triggers:
°

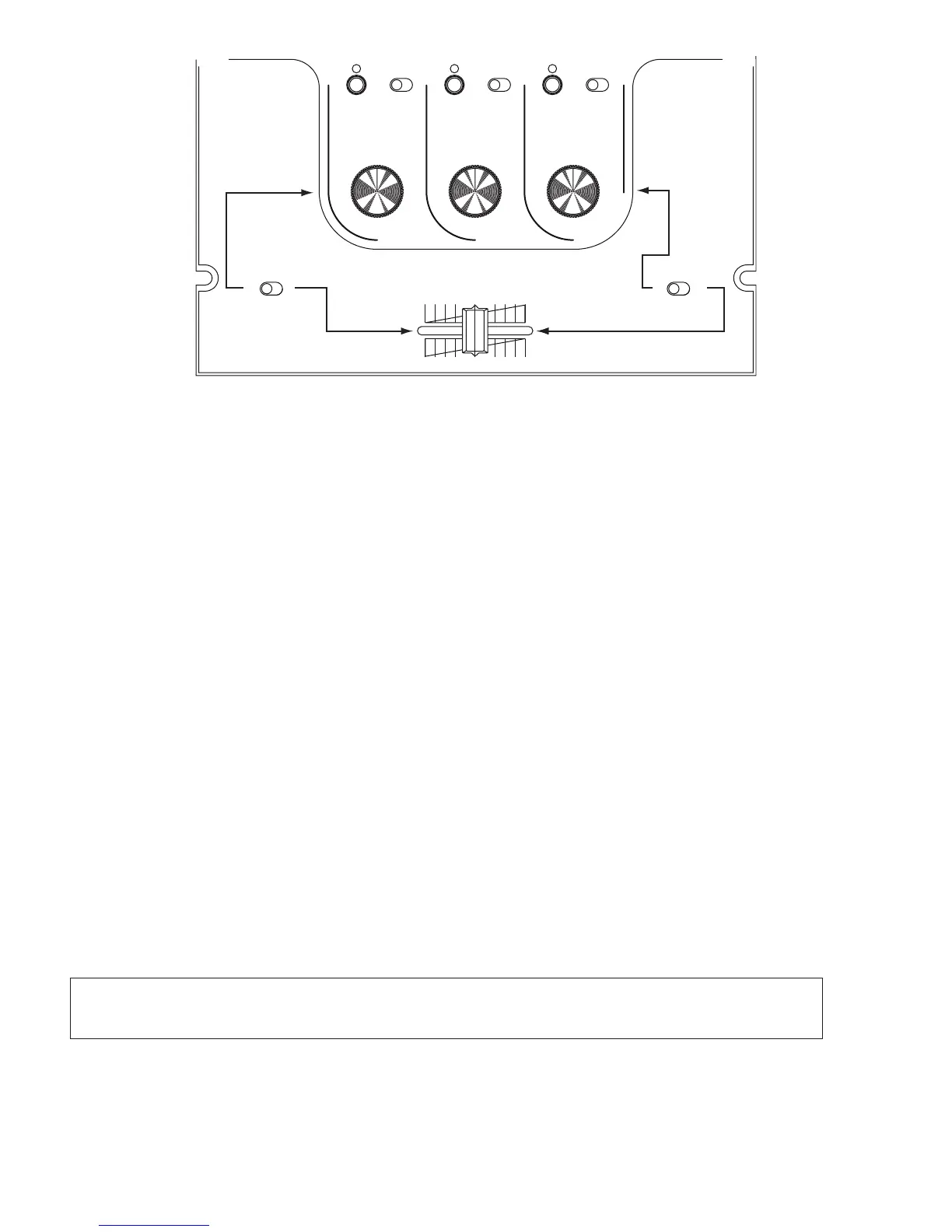

CD1 TRIGGER switch determines trigger source
1 —› Input Fader 1 is the source
OFF —› No trigger
A —› A-side Crossfader is the source
°
CD2 TRIGGER switch determines trigger source
3 —› Input Fader 3 is the source
OFF —› No trigger
B —› B-side Crossfader is the source
• Standard CD trigger format
°
⅛" (3.5 mm) mini TRS jacks
°
Start pulse on Tip.
°
Stop pulse on Ring/Sleeve.
°
Normally high – Active low.
°
Pulse width is 20 ms.
°
Start threshold is at –65 dB of control attenuation.
°
Stop threshold is at –75 dB of control attenuation.
• CD triggers may be used with some external effects processors and drum machines
°
See manufacturers specifications for details.
Internal switching power supply
• Plug in virtually anywhere
• IEC inlet with power switch
• Universal internal switching power supply
• 100 to 240 VAC ±10%
• 50/60 Hz, 20 watts
• US 120 volt cord provided
Note: e internal fuse F1 should be replaced only by qualified service personnel with the same type and rating:
(Wickman, type TR5, #372-1100-000, 250 volt, 1.0 amp, time delay).
