FUSE DETAILS
2.6 RANGE ROVER

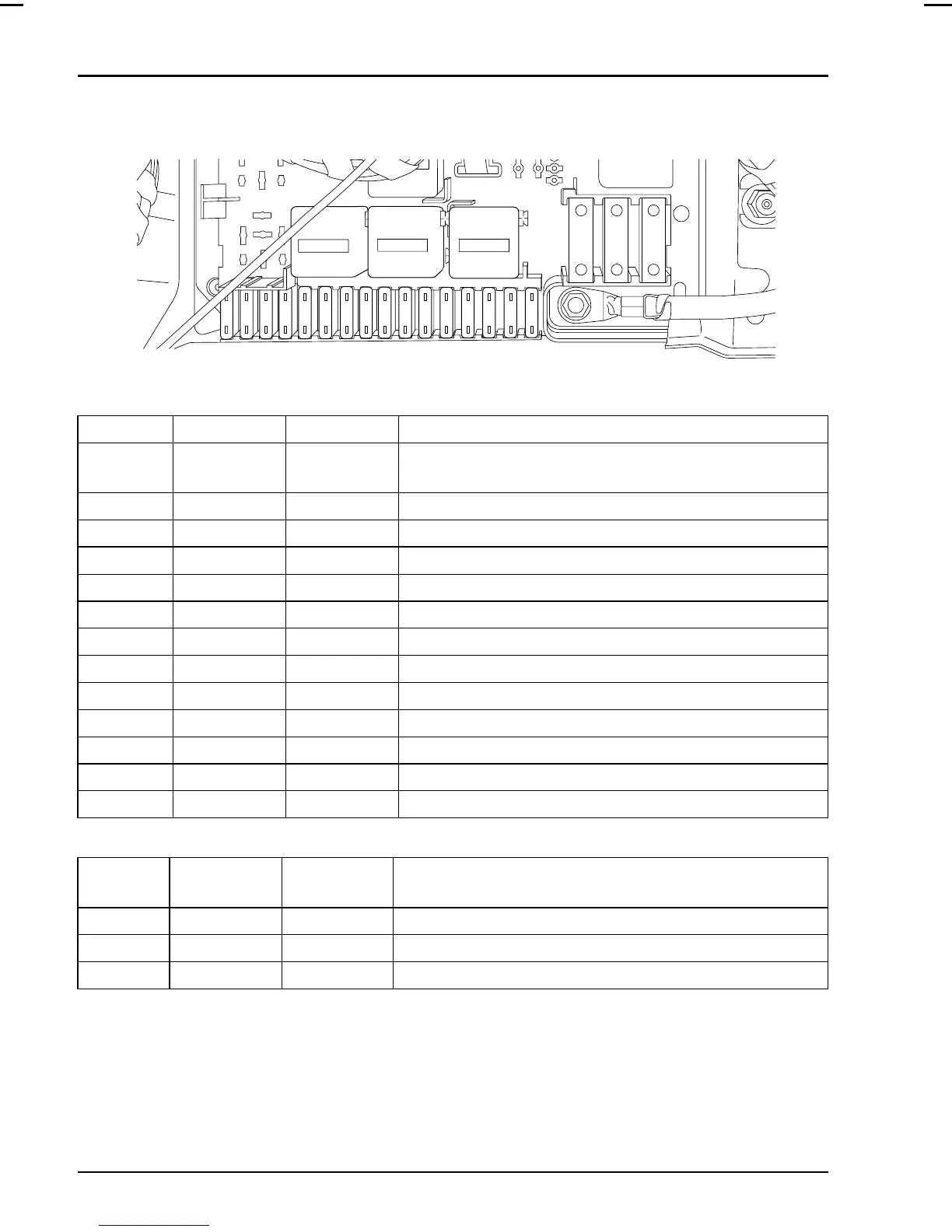

REAR FUSE BOX
Fuse Rating Vehicle Function
F1 20 A All Front cigar lighter, Rear cigar lighter, Front
accessory socket.
F2 25 A All Relay 4.
F3 25 A All Relay 2.
F4 15 A All Trailer pick-up.
F6 20 A All Trailer pick-up.
F7 20 A All Rear accessory socket.
F9 30 A All Heated rear window relay.
F10 20 A All Rear screen wiper motor.
F11 20 A All Seat heat relay.
F12 15 A All Rear blower motor relay.
F14 5 A All RF receiver.
F15 25 A All Fuel pump relay.
F16 10 A All Tail door relay.
Maxi-
fuse
Rating Vehicle Function
MF17 50 A All Trailer ECU.
MF18 50 A All Air suspension relay.
MF19 50 A All Not used.
F1
F2
F3
F4
F5
F6
F7
F8
F9
F10
F11
F12
F13
F14
F15
F16
MF17
MF18
MF19
R1 R2 R3
