OPERATION
2

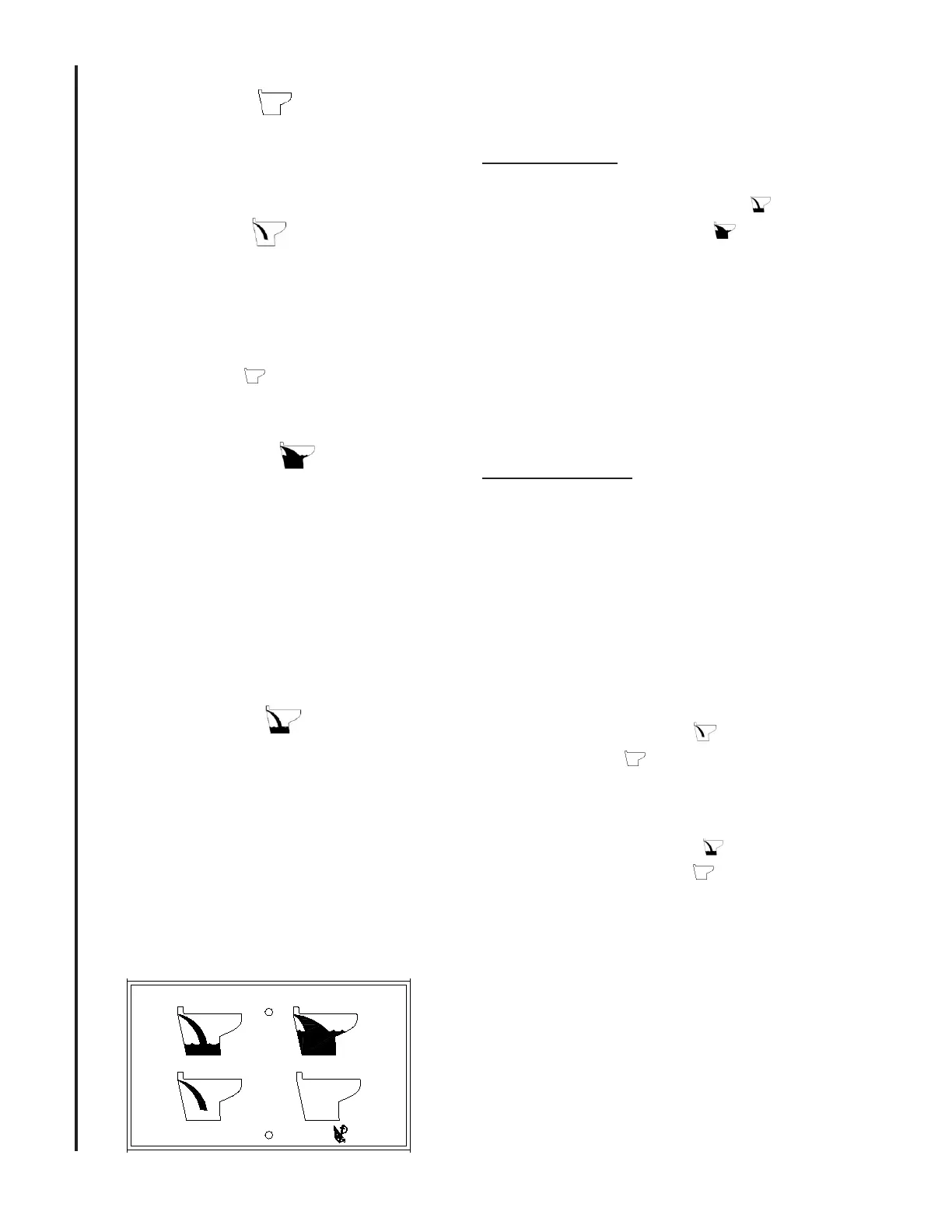

Multifunction Smart Toilet Control:
1. EMPTY ONLY
Press to evacuate the bowl. Discharge pump
runs as long as this button is held with an
eight second limit. If holding tank full LED
is on this button still works.
2. WATER ONLY
Press to add water in the bowl. Inlet water
solenoid/pump runs as long as button is
pressed with an eight second limit. After limit
is reached, this button is disabled to prevent
overflow of the bowl. To enable again,
EMPTY ONLY button must be pressed.
If Holding Tank Full LED is on, this button
still works.
3. NORMAL FLUSH
Press to start timed ushing cycle. If Holding
Tank Full LED is on, this button is disabled.
There are three cycles of inlet and discharge.
First cycle removes most of the waste.
Second cycle removes remaining waste if
any left after rst cycle. Third cycle clears all
discharge housing and lines with clean water.
Last ll is to retain water in the bowl for next
use. This button is disabled if Holding Tank
Full LED is on.
4. WATER SAVER
Press to start water saver cycle. If Holding
Tank Full LED is on, this button does not
work. This cycle has only one cycle of inlet
and discharge to clear liquid waste. Last ll is
to retain water in the bowl for next use. This
button is disabled if Holding Tank Full LED
is on.
NOTE: Holding Tank Full light will only
illuminate if the tank sensor has been added
to the control.
HOLDING TANK FULL
WATER
ONLY
RARITAN
EMPTY
ONLY
TOILET FLUSH CONTROL
WATER
SAVER
NORMAL
FLUSH
Changing ush mode from Sequential to Continuous
and vise versa:
1. Hold the WATER ONLY and
EMPTY ONLY buttons down together for
three seconds. The Holding Tank Full LED will
ash THREE times indicating you have entered
program mode.
2. Push the WATER SAVER button once.
3. Push the EMPTY ONLY button. Flush mode
will switch from Sequential to Continuous or vice
versa.
The Holding Tank Full LED will ash THREE times
indication you have left program mode.
Programming of Toilet Flush Control
The Raritan Smart Toilet Control oers two dierent
ush modes to choose from:
Sequential Flush: In this mode, the toilet will add water
and discharge waste separately. This ll/empty cycle
will repeat once in WATER SAVER and three times
during the NORMAL FLUSH cycle. At the end of
this sequence cycle, a short pause will be followed by a
nal ll to leave water remaining in the bowl.
This mode is designed to provide the most ecient ush
possible while using the least amount of water. It keeps
the discharge pump ooded while providing powerful
suction to remove waste from the bowl.
NOTE: All toilets as shipped from factory are set to
the Sequential mode.
Continuous Flush: In this mode, the toilet will add
water to wet the bowl rst and then follow with the
inlet and discharge motors ushing together for the
remainder of the cycle. At the end of this continuous
cycle, a short pause will be followed by a nal ll to
leave water in the bowl.
This mode may be more suitable for installations in
which a continuous ow of water is desired and water
use is not as great a concern.
Programming your Smart Toilet Control:
The Raritan Smart Toilet Control is factory set to work
in most installations and no programming is required.
The following instructions can be used to modify
timings if desired:
All ush cycles have an initial ll time (T1), Discharge/
Empty time (T2) and water retention ll time (T3).
L480 0216jlc
