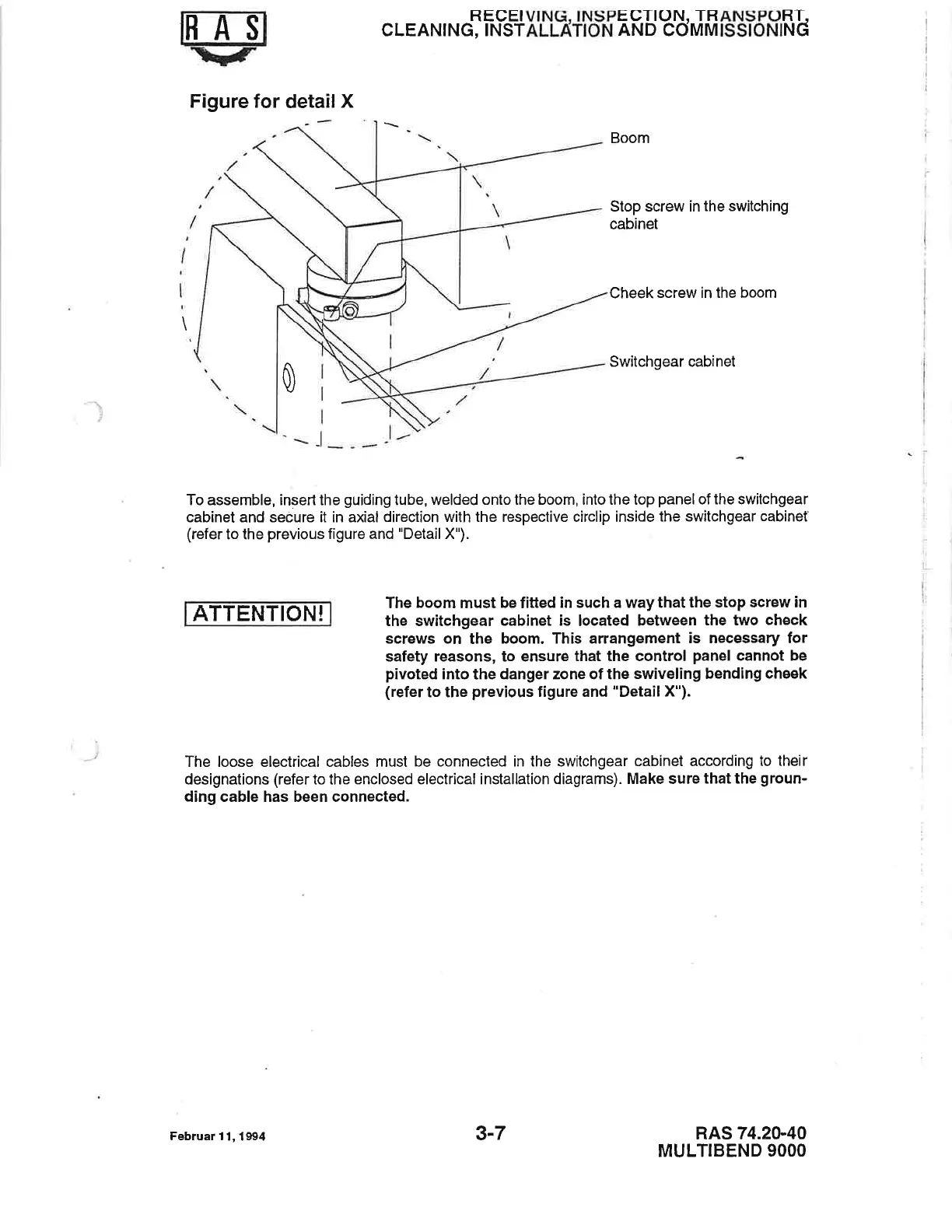

Figure
for detail
X
Boom
Stop screw in the switching
cabinet
Cheek
screw in the boom
Switchgear cabinet
_t
To assemble, insert the
guiding
tube, welded
onto
the
boom, into the top
panel
of the switchgear
cabinet
and
secure it in axial
direction
with the respective
circlip inside the
switchgear cabinet
(refer
to the
previous
figure
and
"Detail
X").
ATTENTION!
The boom must be fitted
in such a way that
the stop screw in
the switchgear cabinet
is
located
between
the two
check
screws on
the
boom. This arrangement
is necessary for
safety reasons, to ensure that the
control
panel
cannot be
pivoted
into
the
danger zone of the
swiveling bending
cheek
(refer
to the
previous
figure and
"Detail
X").
The loose
electrical
cables must be connecled
in the switchgear
cabinet according
to
their
designations
(refer
to the enclosed
electrical installation diagrams).
Make sure
that the
groun-
ding cable has been connected.
