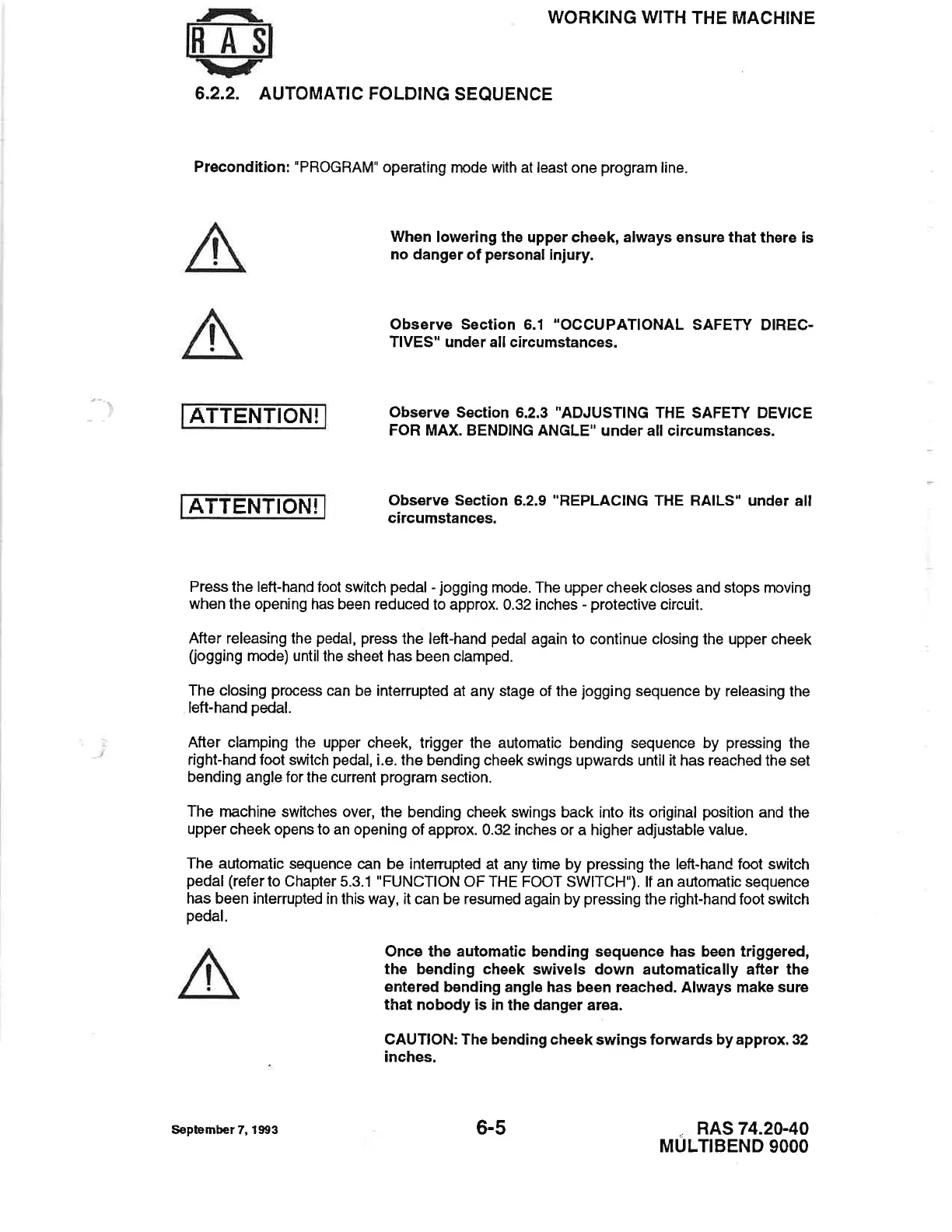

6.2.2. AUTOMATIC FOLDING
SEQUENCE
Precondition:
"PROGRAM"
operating
mode with at
least one
program
line.
When
lowering the
upper
cheek, always ensure
that there is
no
danger
of
personal
injury.
Observe Section
6.1
"OCCUPATIONAL
SAFEW
DIREC-
TIVES" under all circumstances.
ATTENTION!
Observe
Section 6.2.3
"ADJUSTING THE SAFETY
DEVICE
FOR MAX. BENDING
ANGLE' under all circumstances.
ATTENTION!
Observe Section
6.2.9
"REPLACING
THE
RAILS" under all
circumstances.
Press the
left-hand foot switch
pedal -
jogging
mode. The upper cheek closes and stops moving
when
the opening has been reduced
lo approx. 0.32 inches
-
protective
circuit.
After releasing the
pedal,
press
the left-hand
pedal
again to continue closing the upper cheek
fiogging
mode) untilthe
sheet has been clamped.
The closing
process
can be interrupted
at any stage of the
jogging
sequence by
releasing the
left-hand
pedal.
Afier clamping
the upper cheek,
trigger the autornatic bending sequence by
pressing
the
right-hand foot
switch
pedal,
i.e. the bending cheek
swings upwards until it has reached the set
bending
angle for the
current
program
section.
The
nnchine switches over, the
bending cheek swings back
into
its
original
position
and the
upper
cheek opens to an
opening of approx. 0.32 inches or
a higher adjustable
value.
The automatic sequence
can be intenupted at any
time by
pressing
the left-hand foot
switch
pedal
(refer
to
Chapter 5.3.1 "FUNCTION OF
THE FOOT SWITCH"). lf an automatic sequence
has been interrupted
in this way, it can
be resumed again by
pressing
the right-hand foot switch
pedal.
Once the automatic bending sequence has been
triggered,
the bending
cheek swivels down automatically after the
entered bending
angle has been reached. Always make sure
that
nobody
is
in the danger area.
CAUTION: The bending
cheek swings forwards
by
approx.
32
inches.
