RAS MULTIBEND 9000 - Page 77

HAS

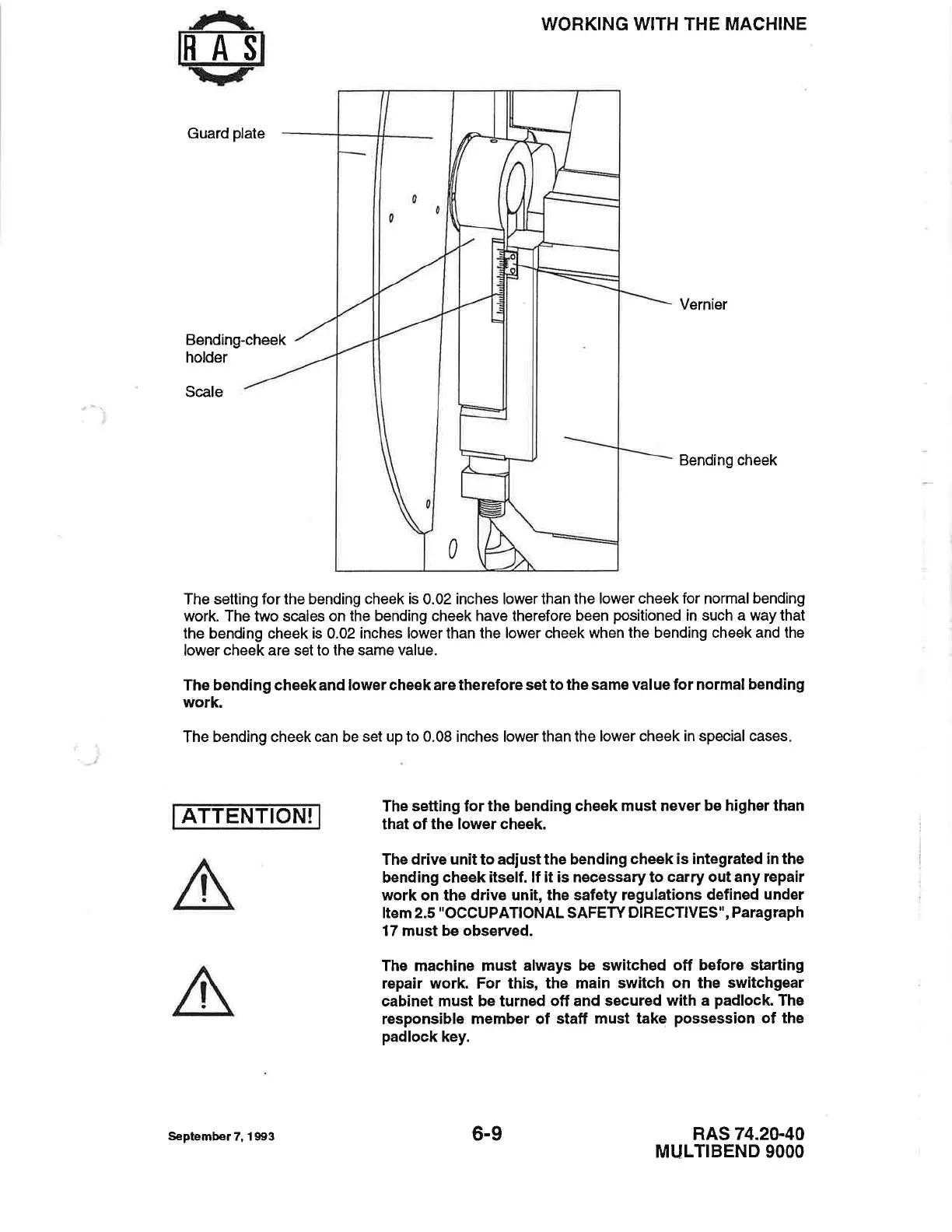

WORKING WITH THE MACHINE
Guard
plate
Vernier
Bending-cheek
holder
Scale
Bending
cheek
The setting for the bending
cheek
is 0.02 inches lower than
the lower cheek
for
normal
bending
work. The two scales on the
bending cheek have
therefore
been
positioned
in such a way that
the
bending
cheek is 0.02 inches lower than the
lower cheek when
the bending cheek and the
lower cheek are set to lhe
same value.
The bending cheekand lowercheekaretherefore
settothe
same value for normal bending
work.
The
bending cheek can be set up
to
0.08 inches lower
than the lower
cheek in special cases
ATTENTION!
The setting for the bending
cheek must never
be higher than
that
of
the lower
cheek.
The drive unit to adjust
the bending
cheek is
integrated
in the
bending cheek itself.
lf it is necessary to carry
out any repair
work on the
drive
unit,
the safety regulations
defined under
Item 2.5 "OCCUPATIONAL
SAFETY
DIRECTIVES", Paragraph
17 must be obserued.
The machine must always
be switched off before
starting
repair work For this, the main
switch on the switchgear
cabinet must be turned
off and secured with a
padlock.
The
responsible
member of staff must
take
possession
of
the
padlock
key.
RAS 74.20.40
MULTIBEND 9OOO
[J
r
a
September 7, 1993
6-9
