WORKTNG
WITH
THE
MACHINE

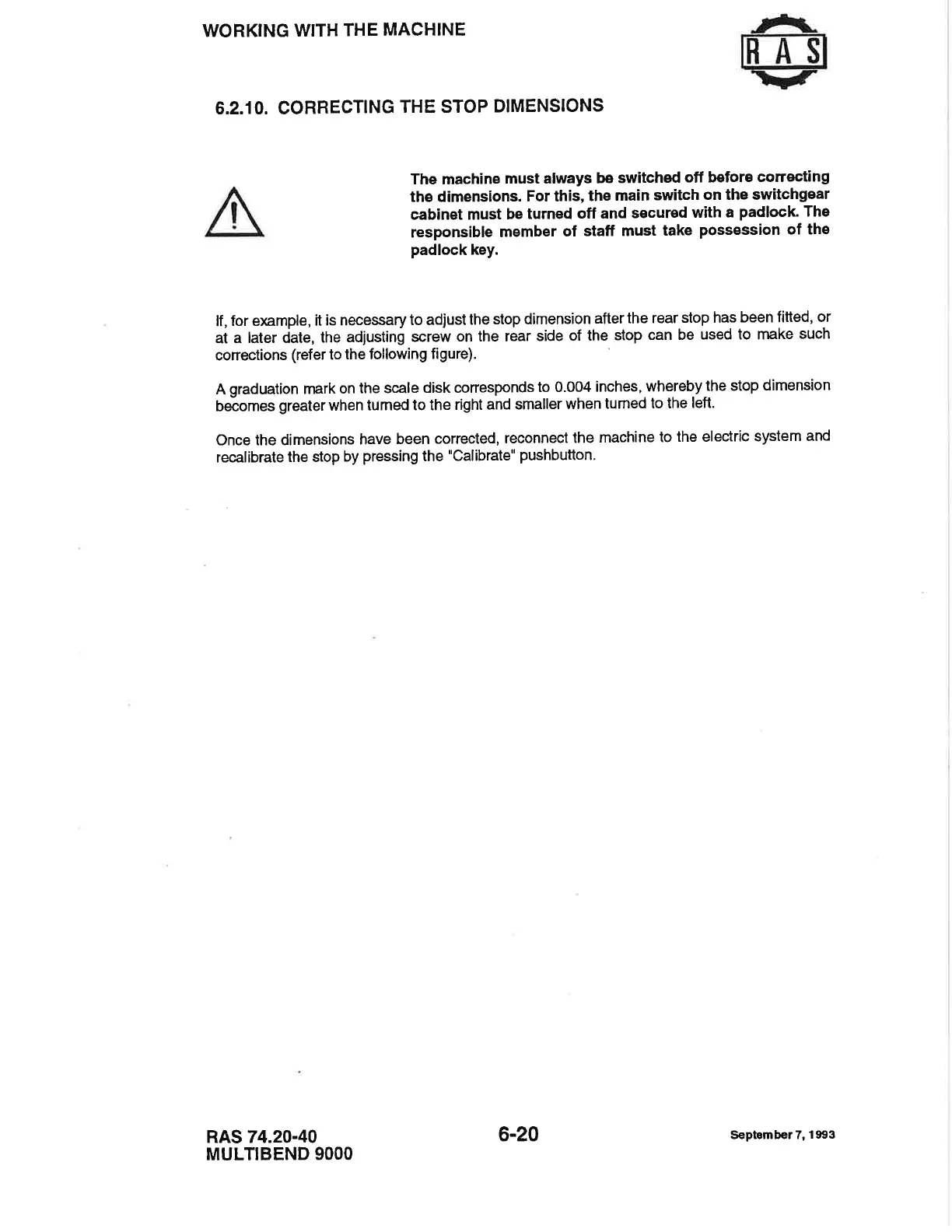

6.2.10. CORRECTING
THE
STOP
DIMENSIONS
The machine
must always
be
switched
off
before
conecting
the dimensions.
For this,
the main
switch
on the switchgear
cabinet must
be
turned
off and
secured
with
a
padlock-
The
responsible
member
of staff
must
take
possession of the
padlock
key.
lf
,
for
example,
it
is necessary
to adjust
the stop
dimension
afterthe
rear stop
has
been fitted,
or
at a
later date,
the
adjustin!
screw on
the rear
side
of the
stop can
be used
to rnake
such
conections
(refer
to
the following
figure).
A
graduation
nnrk
on
the scale disk
conesponds
to 0.004
inches,
wherebylhe
stop dimension
becomes
greater
when
tumed to the
right
and smaller
when
tumed
to the
left.
Once
the dimensions
have
been
corrected,
reconnect
the
machine
to the
electric
system
and
recalibrate the
stop
by
pressing
the
"Calibrate"
pushbutton'
RAS
74.20-40
MULTIBEND 9OOO
6-20
S€ptemberT, 1993
