Rath 2500-12RCF - Base Station Model 2500-205 FM;210 FM;12 RCF;16 RCF Mounting

2500-205FM, 2500-210FM, 2500-12RCF, 2500-16RCF
Page 12

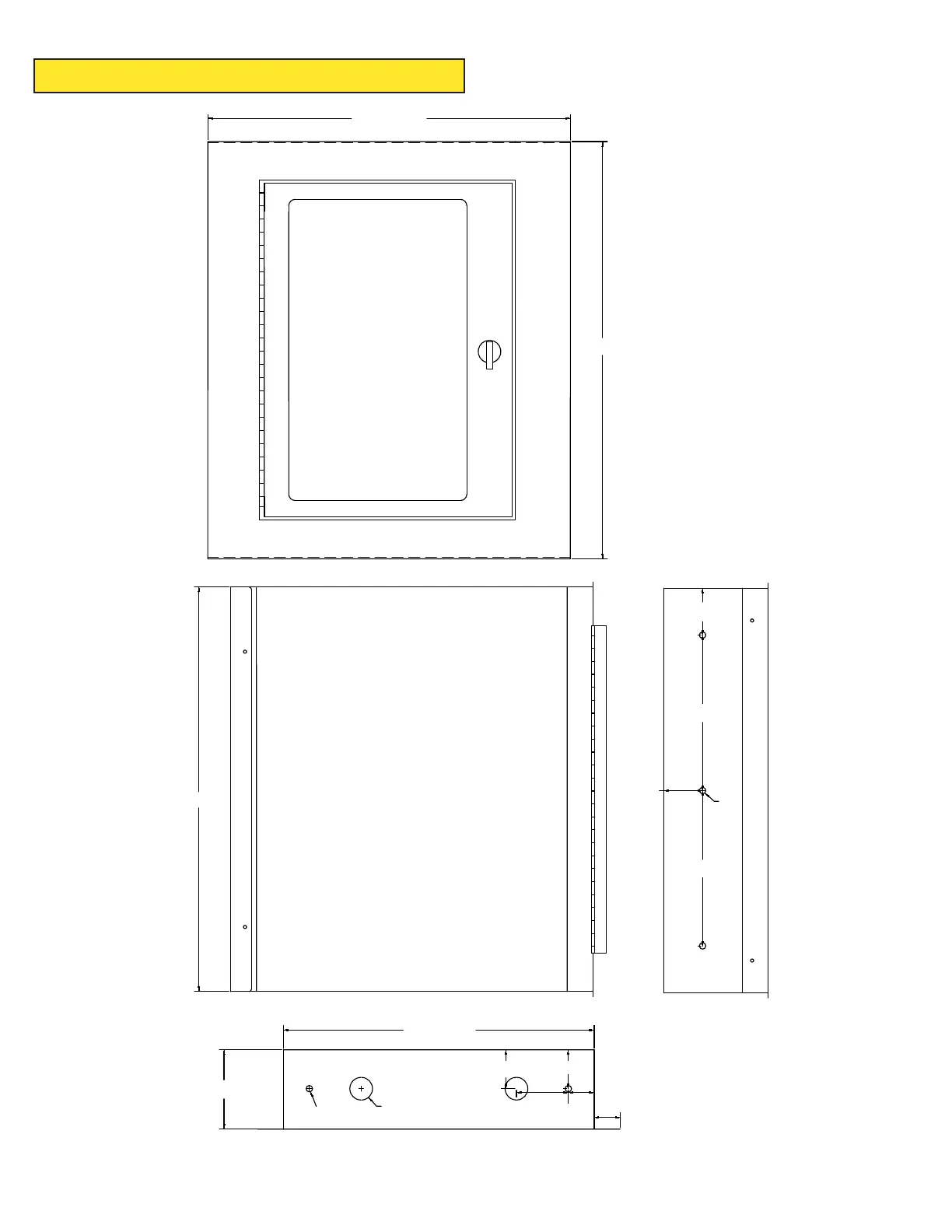

FRONT VIEW
SIDE VIEW
CABINET BACK BOX
INSIDE VIEW WITH FRONT PANEL OPENED
ø0.25” [ø6.35]
ø0.25” [ø6.35]
ø0.88” [ø22.23]
12.00” [304.69]
3.00” [76.2]
1.00” [25.42]
1.50” [38.09] 1.50” [38.09]
1.00” [25.40]2.00” [50.80]
14.00” [355.57]
16.11” [409.08]
15.62” [396.75]
1.81” [46.04]
6.00” [152.40]
6.00” [152.40]
1.50”
[37.97]
