Rath 2500-PWR24U User Manual

Neutral
Hot
2500-PWR24U
Note: A three prong plug is
included with the Power Supply.
120V Supply
Ground
- - - - - -- - -- - -
+
-
NC COM NO
OFF ON
+ + + + + ++ + ++ + +
Relay
POWER FAILURE
NC NO
S1
Ground
1 2 3 4 5 76 8 109 11 12
POWER IN
+V -V N L
R13 D13
PTC1
R1 D1
PTC2
R2 D2
PTC3
R3 D3
PTC4
R4 D4
PTC5
R5 D5
PTC6
R6 D6
PTC7
R7 D7
PTC8
R8 D8
PTC9
R9 D9
PTC10
R10 D10
PTC11
R11 D11
PTC12
R12 D12
RATH MICROTECH
SYSTEM
POWER
PTC13
Brown
Blue
Green
Page 4
Note: A three-prong plug is included with the 2500-PWR24U.
Note: The 2500-PWR24U is enabled with DC Fail Supervision using contact closures which indicate loss of DC power.
Example: The contact closures can be connected to an annunciator alarm panel (Fig. 7, pg. 4). The relay is
normally energized when DC power is present. Loss of DC power will trip the annunciator alarm panel.
FIG. 1
FIG. 2
FIG. 3
FIG. 4
FIG. 5
FIG. 6
FIG. 7
120v Supply
Brown
Blue
Green

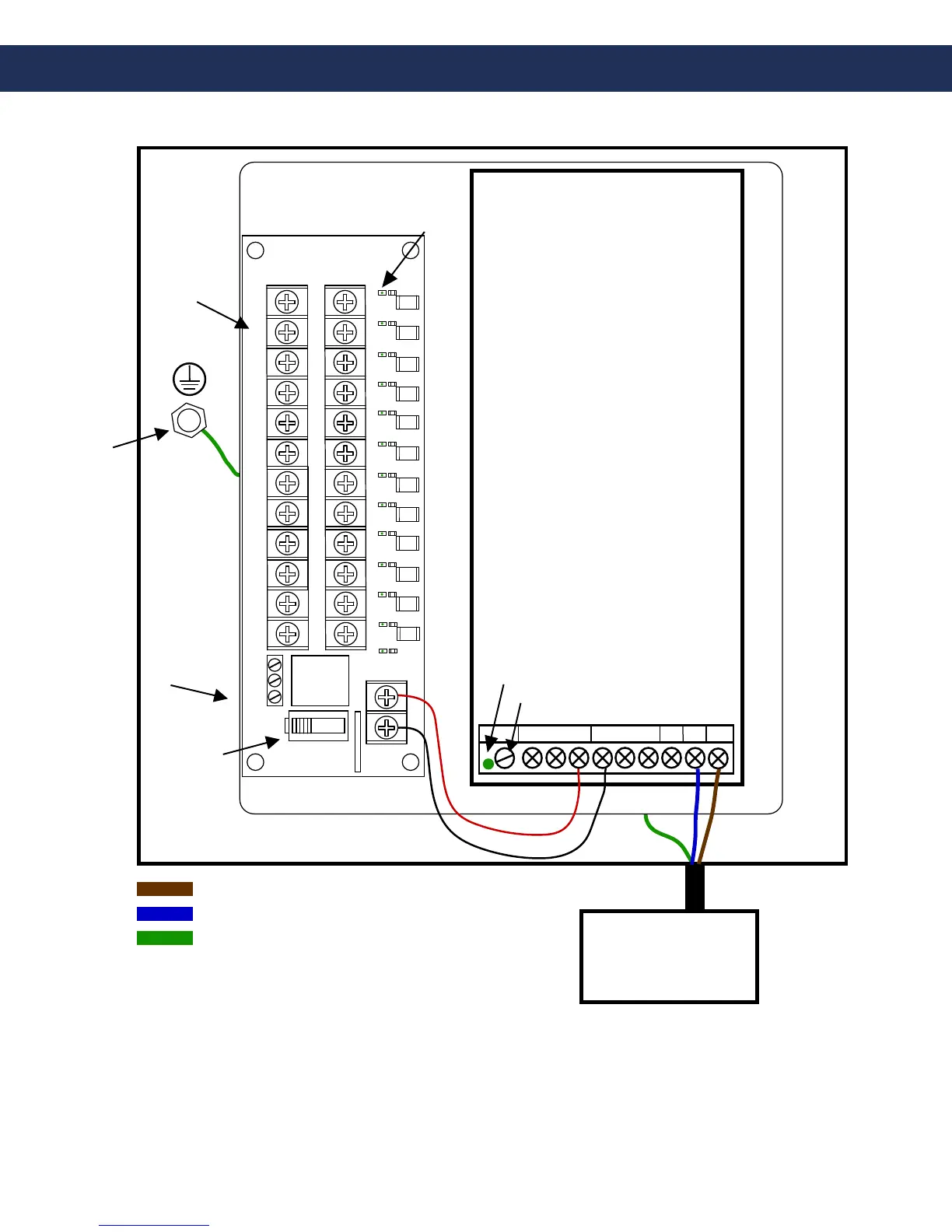

2500-PWR24U Wiring Diagram
