UV-USA_CAN SCC_WE, CM_P V06, 03/2016
12
18
19
20
16
6
7
17
6
5
6.
Also in the kit there is the cable W 23 (pic. 1 item
8). Connect this cable to X27.1 of the interface
pcb (A8) and the other end to:
X27 - A1 I/O-pcb SCC Index E & G
X27 - A4 main pcb CM and CMP, Index E to H
X27 - A2 cpu-pcb SCC_WE, Index H
X4 - A7 pcb power supply lighting SCC, Index I

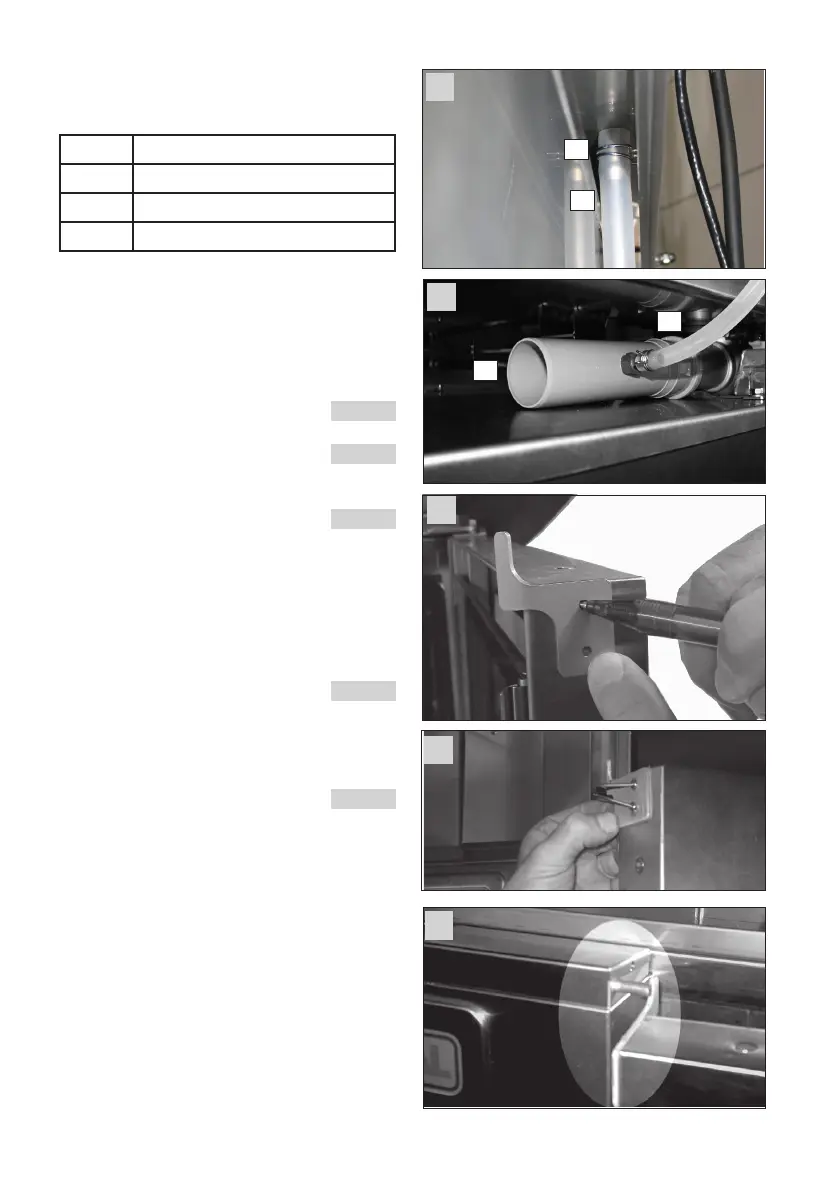

2.5 Condensation water
- At the rear side of the Ultravent there is a drain
connection for the condensated water inside the
hood.
- Connect the silicone hose (pic. 1 pos 6) with the
hose
clips (pic. 1 pos. 7) to the drain tube
pic 16
- Put the drain pipe (pic 1 pos. 5) to the unit’s
drain pic. 17
- Shorten the silicone hose (pic. 1 pos 6) to the
desired length and push it over the connection
piece of the drain pipe (pic. 1 pos. 5) pic. 17
- Ensure there are no kinks or sags in the hose.
Cut length to fit depending on unit size
3. Installation of the lock plate.
a) Use lock plate (pic 2 item 12) as a template.
Hold it to the top edge of the door and mark
the two holes. pic. 18
b) Drill two holes (3,2 mm approx. 1/8”) at the
marked positions into the door frame
c) Hold lock plate (pic 2 item 12) to top edge of the
door and fix the plate with the rivets (item 13)
pic. 19/20
