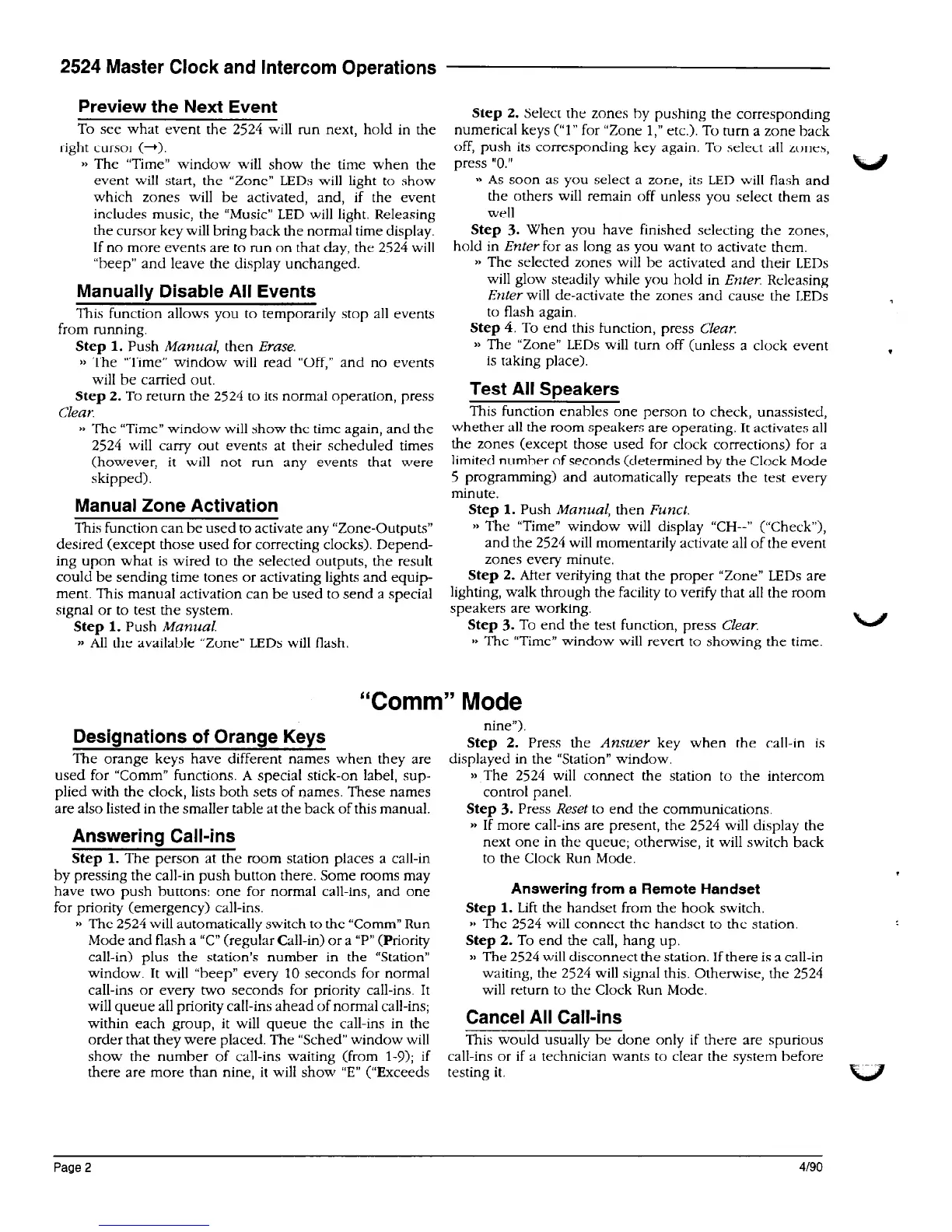

2524 Master Clock and Intercom Operations
Preview the Next Event
To see what event the 2524 will run next, hold in the
right cursor (+).
BB The “Time” window will show the time when the
event will start, the “Zone” LEDs will light to show
which zones will be activated, and, if the event
includes music, the “Music” LED will light. Releasing
the cursor key will bring back the normal time display.
If no more events are to run on that day, the 2524 will
“beep” and leave the display unchanged.
Manually Disable All Events
This function allows you to temporarily stop all events
from running.
Step 1. Push
Manual,
then
Erase.
)’ The “Time” window will read “Off,” and no events
will be carried out.
Step 2. To return the 2524 to its normal operation, press
Clear.
” The “Time” window will show the time again, and the
2524 will carry out events at their scheduled times
(however, it will not run any events that were
skipped).
Manual Zone Activation
This function can be used to activate any “Zone-Outputs”
desired (except those used for correcting clocks). Depend-
ing upon what is wired to the selected outputs, the result
could be sending time tones or activating lights and equip-
ment. This manual activation can be used to send a special
signal or to test the system.
Step 1. Push
Manual.
v All the available “Zone” LEDs will flash.
Designations of Orange Keys
The orange keys have different names
Step 2. Select the zones by pushing the corresponding
numerical keys (“1” for “Zone 1,” etc.). To turn a zone back
off, push its corresponding key again. To select all zones,
press “0.”
B) As soon as you select a zone, its LED will flash and
the others will remain off unless you select them as
well.
Step 3. When you have finished selecting the zones,
hold in
Enter
for as long as you want to activate them.
B’ The selected zones will be activated and their LEDs
will glow steadily while you hold in
Enter.
Releasing
Enter
will de-activate the zones and cause the LEDs
to flash again.
Step
4.
To end this function, press
Clear.
a~ The “Zone” LEDs will turn off (unless a clock event
is taking place).
Test All Speakers
.
This function enables one person to check, unassisted,
whether all the room speakers are operating. It activates all
the zones (except those used for clock corrections) for a
limited number of seconds (determined by the Clock Mode
5 programming) and automatically repeats the test every
minute.
Step 1. Push
Manual,
then
Funct.
a> The “Time” window will display “CH--” (“Check”),
and the 2524 will momentarily activate all of the event
zones every minute.
Step 2. After verifying that the proper “Zone” LEDs are
lighting, walk through the facility to verify that all the room
speakers are working.
Step 3. To end the test function, press Clear.
3) The “Time” window will revert to showing the time.
“Comm” Mode
when they are
used for “Comm” functions. A special stick-on label, sup-
plied with the clock, lists both sets of names. These names
are also listed in the smaller table at the back of this manual.
Answering Call-ins
Step 1. The person at the room station places a call-in
by pressing the call-in push button there. Some rooms may
have two push buttons: one for normal call-ins, and one
for priority (emergency) call-ins.
)a The 2524 will automatically switch to the “Comm” Run
Mode and flash a “C” (regular Call-in) or a “P” (Priority
call-in) plus the station’s number in the “Station”
window. It will “beep” every 10 seconds for normal
call-ins or every two seconds for priority call-ins, It
will queue all priority call-ins ahead of normal call-ins;
within each group, it will queue the call-ins in the
order that they were placed. The “Sched” window will
show the number of call-ins waiting (from l-9); if
there are more than nine, it will show “E” (“Exceeds
nine”).
Step 2. Press the
Answer
key when the call-in is
displayed in the “Station” window.
N The 2524 will connect the station to the intercom
control panel.
Step 3. Press
Reset
to end the communications.
v If more call-ins are present, the 2524 will display the
next one in the queue; otherwise, it will switch back
to the Clock Run Mode.
Answering from a Remote Handset
Step 1. Lift the handset from the hook switch.
‘B The 2524 will connect the handset to the station.
Step 2. To end the call, hang up.
x The 2524 will disconnect the station. If there is a call-in
waiting, the 2524 will signal this. Otherwise, the 2524
will return to the Clock Run Mode.
