CHAPTER
3
CAN INSTALLATION
________________________________________________________________________
If the machine you are working on does not currently have a Raven CAN
system, you will need a Kit, CANbus, Terminators & Power Adapter “T”

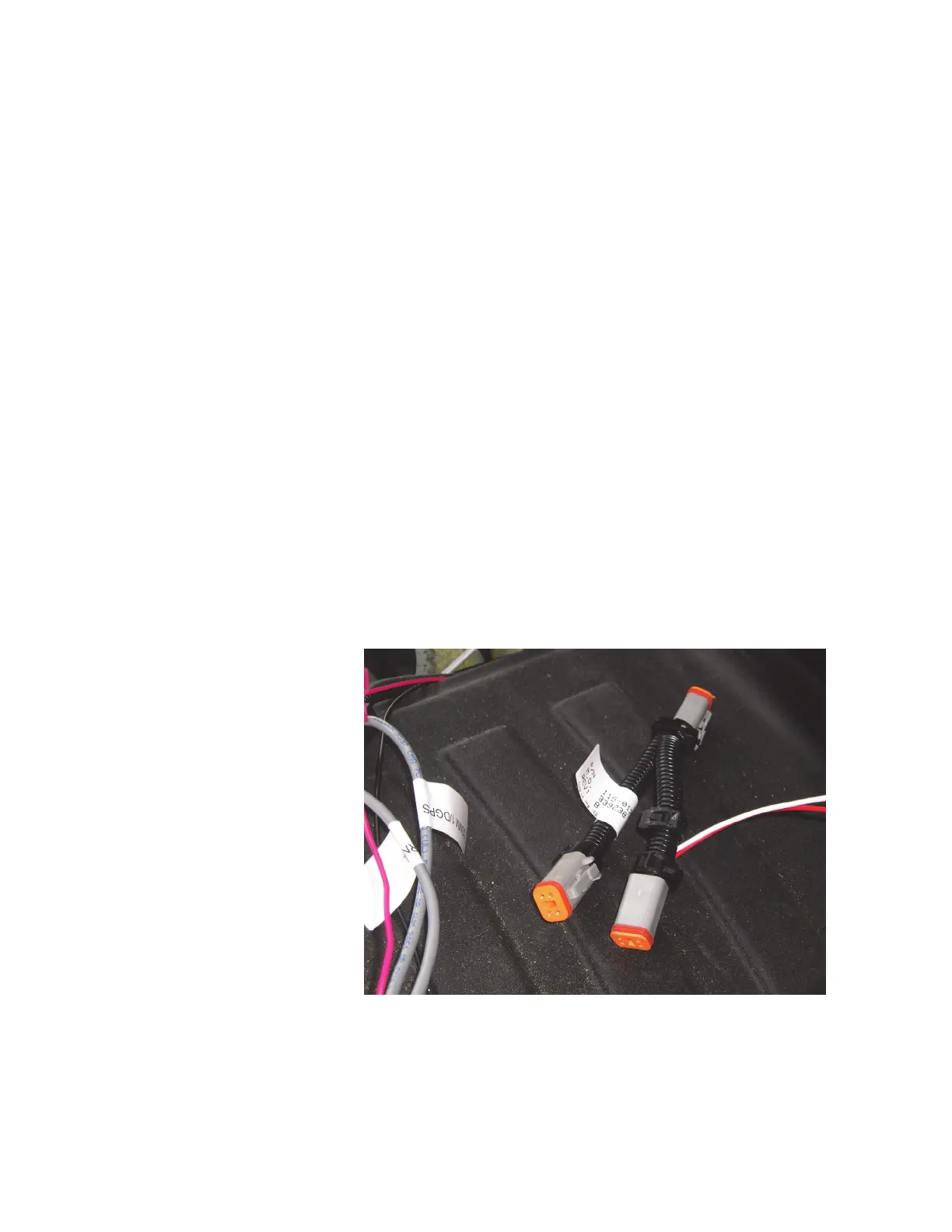

P/N 117-0159-923. This kit contains the CAN Cable Adapter Tee With
Power P/N 115-0171-368 and two (2) CANBus Terminators P/N 063-
0172-369. To install a Raven CAN system:
1. Connect CAN Tee to power and ground.
a. Locate a convenient source of power and ground near the control
system.
b. Connect the power wire of the CAN Cable Adapter Tee With
Power P/N 115-0171-368 to a source of clean 12 volt power.
c. Connect the ground wire from the CAN Cable Adapter Tee With
Power P/N 115-0171-368 to a clean battery ground.
Manual #016-0171-073 Rev. C 01/17
7
