Heading Sensor Owner’s Handbook

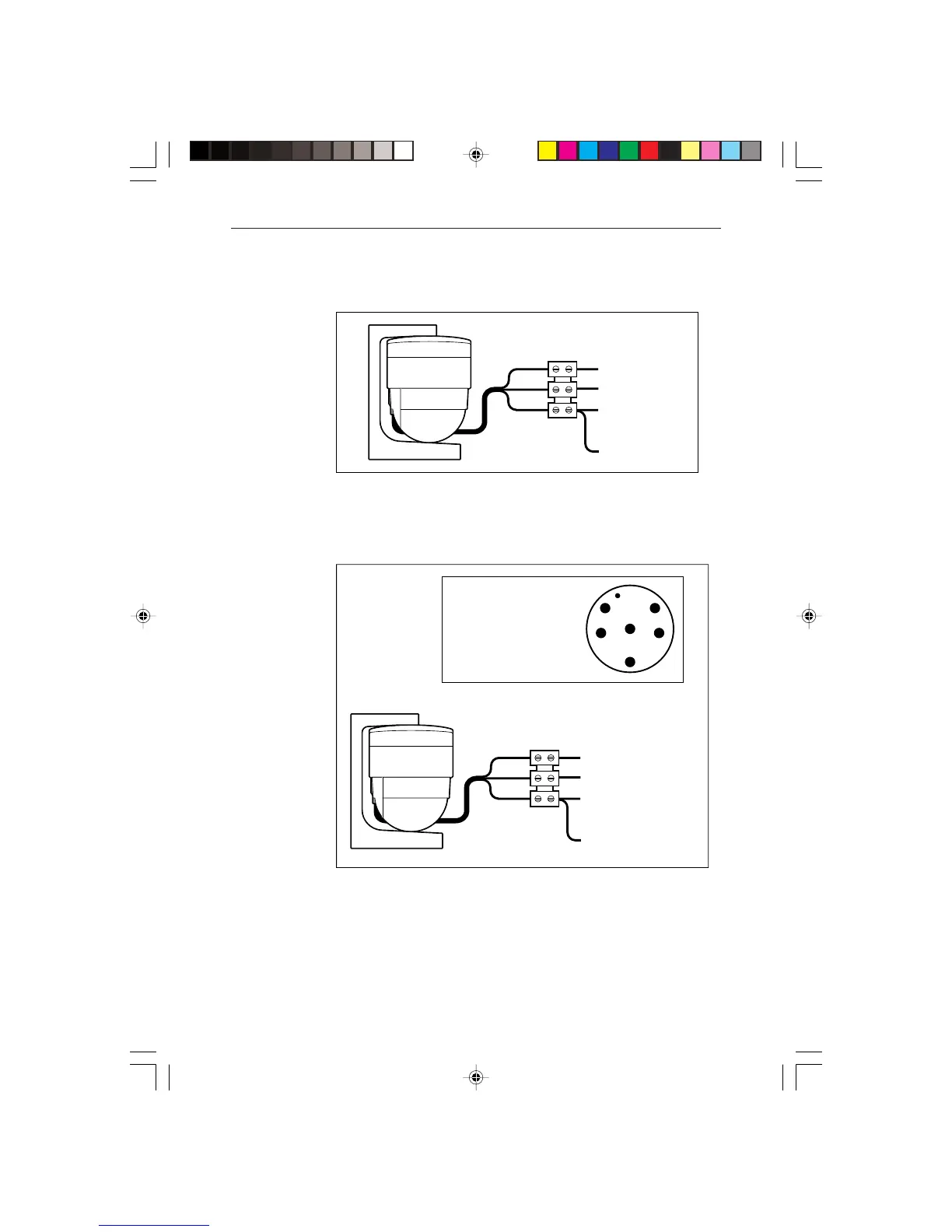

equipment, using a suitable connector block, as shown in the
diagram below. A 16.25ft (5m) NMEA accessory cable is
available for more distant connection if required.
D5508-1
NMEA power
Ground
-- NMEA data
+ NMEA data
Red
Black
Yellow
Check the handbook supplied with NMEA 0183 compatible
equipment, to determine the correct pin connections for the heading
sensor input. For example, the connections for a XX Radar are shown
in the following diagram.
(5) 12VDC (Heading sensor)
(6) Ground (Heading sensor)
(4) NMEA - (Heading sensor)
(3) NMEA + (Heading sensor)
(2) NMEA - (Navigation aid)
(1) NMEA + (Navigation aid)
D5507-1
Red
Black
Yellow
6
15
42
3
XX Radar
J404 NMEA Chassis Connector
viewed from the solder side of the
G263129-17k connector
Heading Sensor
