.17Changingtheradioregion

PriortousingtheradioyoumustsettheFrequencybandtotheregionyourradiowillbeusedin.

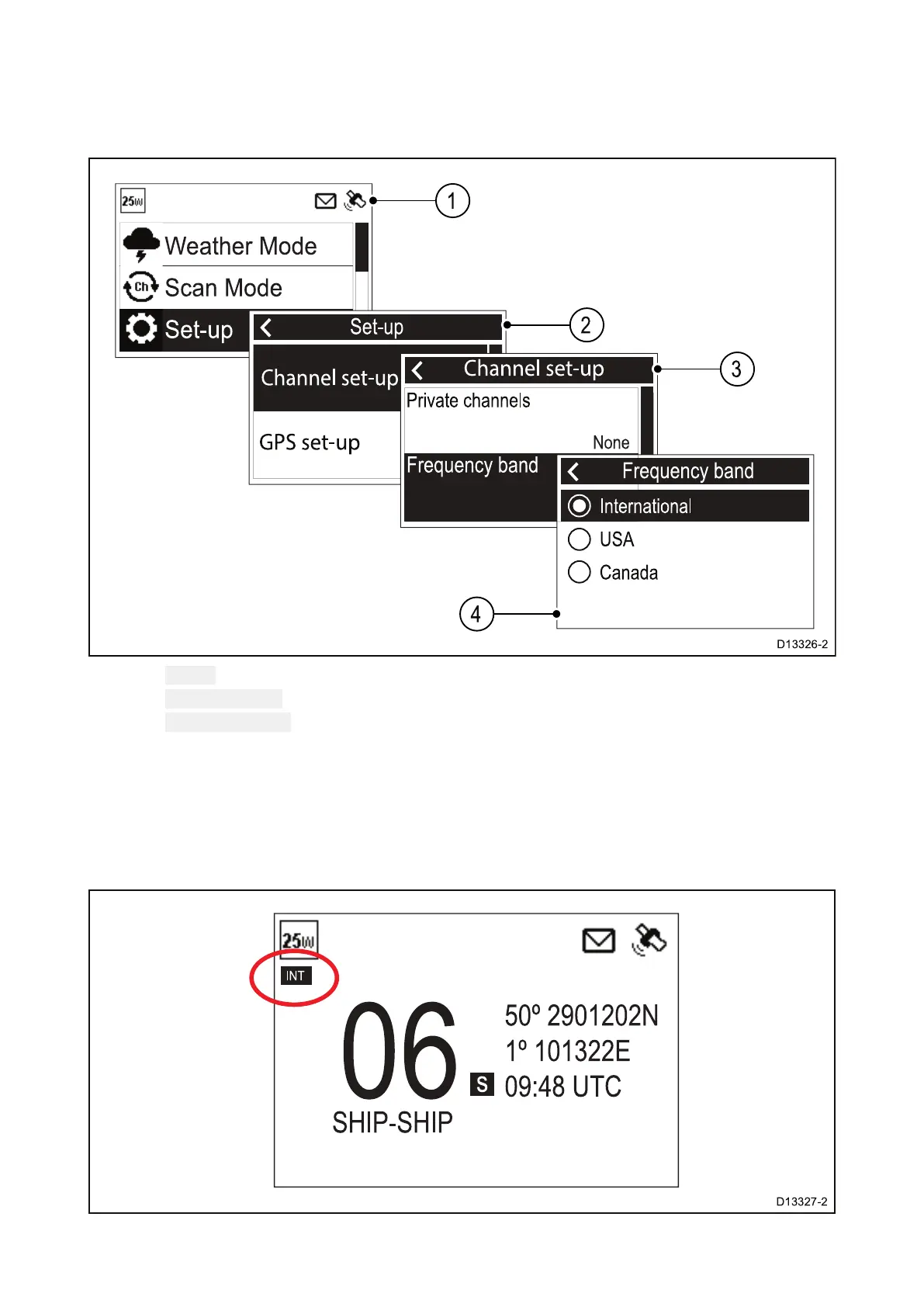

FromtheMainmenu:

1.Select Set-up.

2.SelectChannelset-up.

3.SelectFrequencyband.

4.Selecttherelevantregionfromthelist.

Theavailableoptionsare:

•International International

International

•USA USA

USA

•Canada Canada

Canada

AniconisdisplayedontheHomescreenthatidentiﬁeswhichregionhasbeenset.
