MountingtheBasestation
Beforemounting,ensurethatyourselectedlocationmeetsthelocationrequirementsfoundin
thisdocument.
•Alsoensureyouhaveplannedthelocationforanyadditionalcomponents,suchastheHandset
orSpeak
eretc.

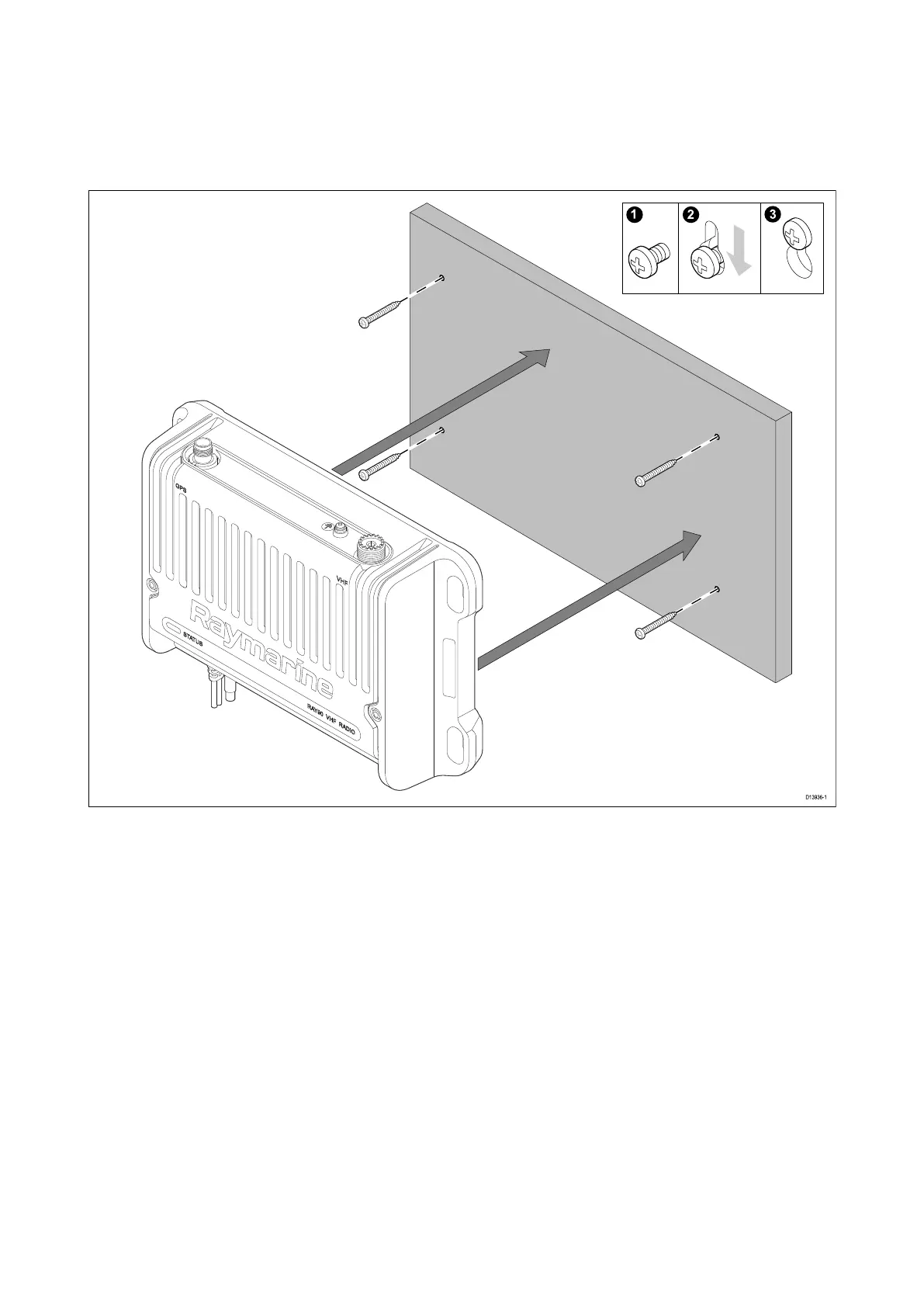

1.Usingthesuppliedmountingtemplate ,markthelocationofthefixingholesonthemounting
surface.
2.Drillholesforthemountingfixingsusingadrillwithasuitablesizeddrillbit.
3.Screwthefixingsapproximatelyhalfwayintotheholesinthemountingsurface.
4.PlacetheBasestationoverthefixingsscrewsandpushdowntolockintoposition.
5.Fullytightenthescrews.
6.Connectthenecessarycables.
Wiredandwirelessspeakermounting
Beforemounting,ensurethatyourselectedlocationmeetsthelocationrequirementsfoundin
thisdocument.
