15
6. As the pool temperature rises to the desired tem-
perature as controlled by the Pool aquastat, small
adjustments to valves “A” and “B” will be required
for optimum performance. Heater temperatures
should be checked regularly to prevent heater
condensation. The heater inlet temperature can
be higher than 105°F without heater damage but
operating at less than 105°F inlet can cause dam-
age from condensation.
NOTE: Consult factory if target temperatures cannot
be achieved.

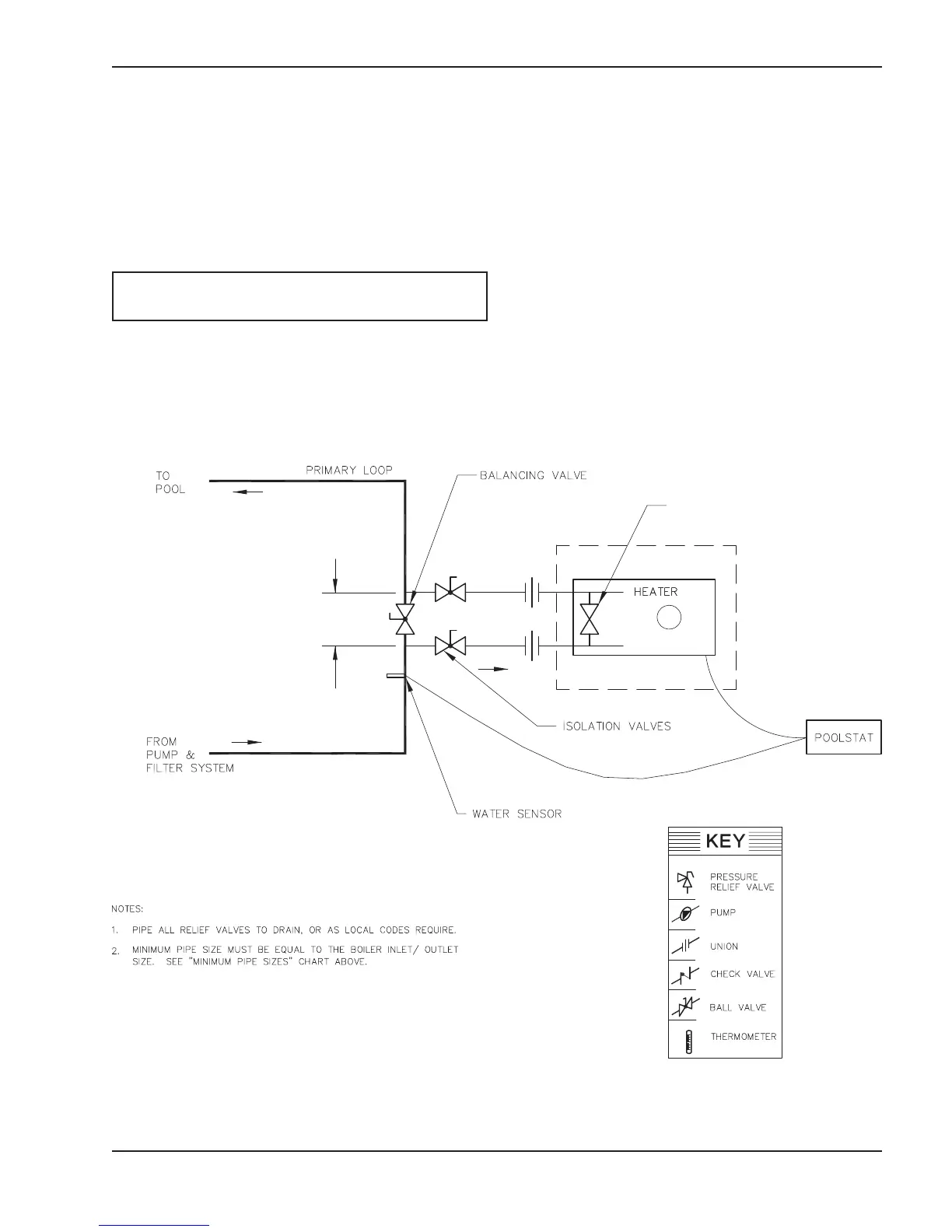

Piping Configurations for Raytherm Commercial Pool Heaters
Models 0926 thru 1223 with UG
INTERNAL DIVERTING
BYPASS SYSTEM (UG)
4 PIPE
DIAMETERS
MAX.
