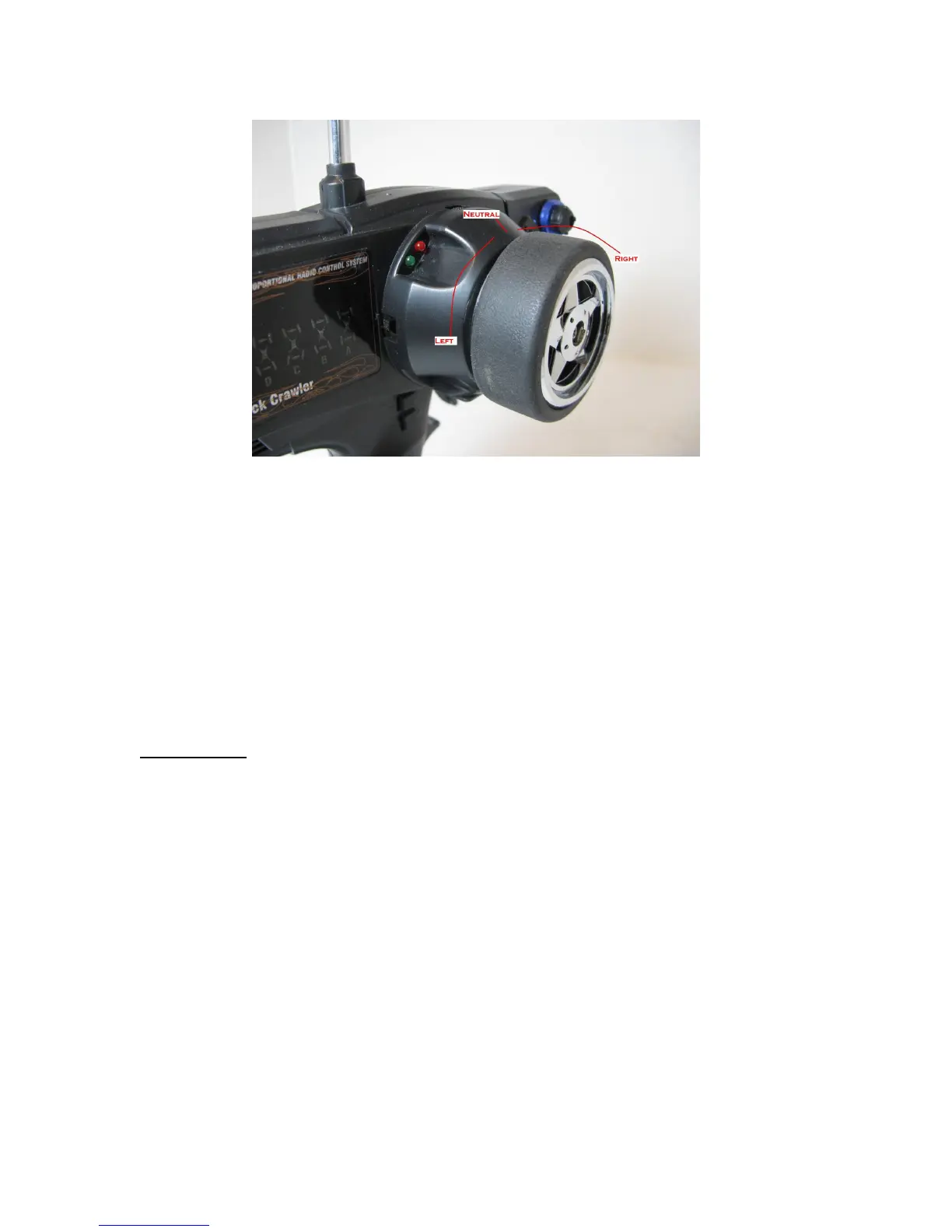

B. Steering Wheel
1. Turn the steering wheel to the left or right to let the vehicle to turn left or right.
Throttle Trim is used to slightly trim the throttle servo when the trigger is at neutral
position.
Steering Trim is used to slightly trim the front steering wheels
Note: If the front wheels are not straight when the trigger is set at neutral position,
you can adjust the steering trim to make them aligned.
Connecting
As you operate the unit for the first time, the transmitter and receiver need to check
for signal. Follow these steps.
1. Turn on the receiver power, press the SW switch. At the same time the
receiver's red LED will begin to flash.
2. Turn on the Transmitter
3. The flashing red LED on the receiver becomes bright all the time. This
means the signal between the transmitter and receiver is connected.
The unit is now ready to use.
