Setup and Connections
How to View Your Components
To watch the satellite receiver in this connection,
press TV to put the remote control into TV mode,
then press WHO•INPUT to scroll through the video
input channels until you tune to VID (or S-VID) input.
To watch the VCR in this connection, enter 03 to
tune to the VCR channel.
In the Interactive Setup you can program the TV to
automatically tune to the correct input channel
when you turn on your component.

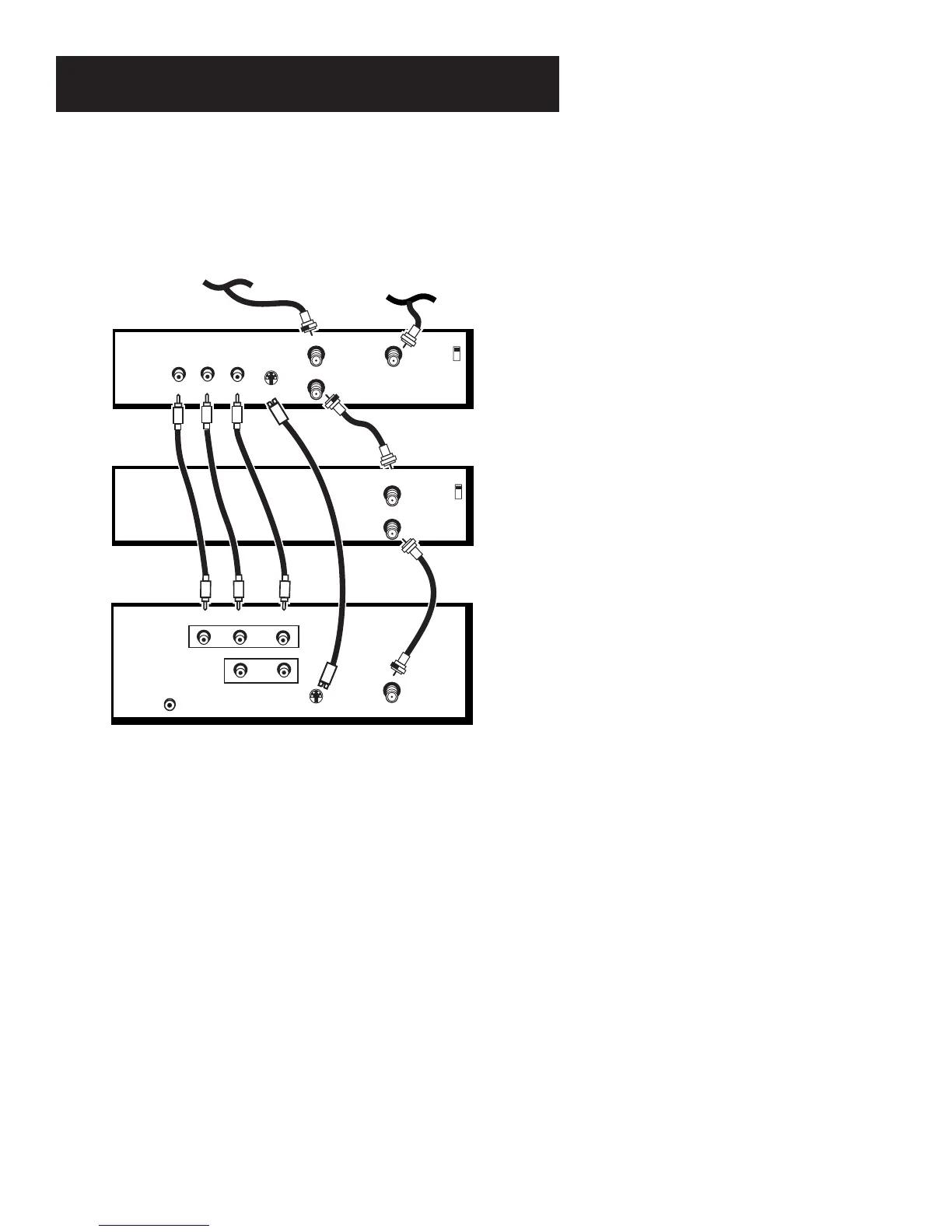

TV, VCR and Satellite Receiver
SATELLITE RECEIVER
VCR 1
TV
S-VIDEO
L
R
VIDEO
OUT
IN FROM ANT
OUT TO TV
SATELLITE
IN
CH3
CH4
IN FROM ANT
OUT TO TV
CH3
CH4
VIDEO
R
L / MONO
S-VIDEO
AUDIO
R
L
CABLE/
ANTENNA
VCR
CONTROL
IN
OUT
SATELLITE SIGNAL
CABLE, CABLE BOX, OR ANTENNA
To Next Page
