RCA RTD396 User Manual

8

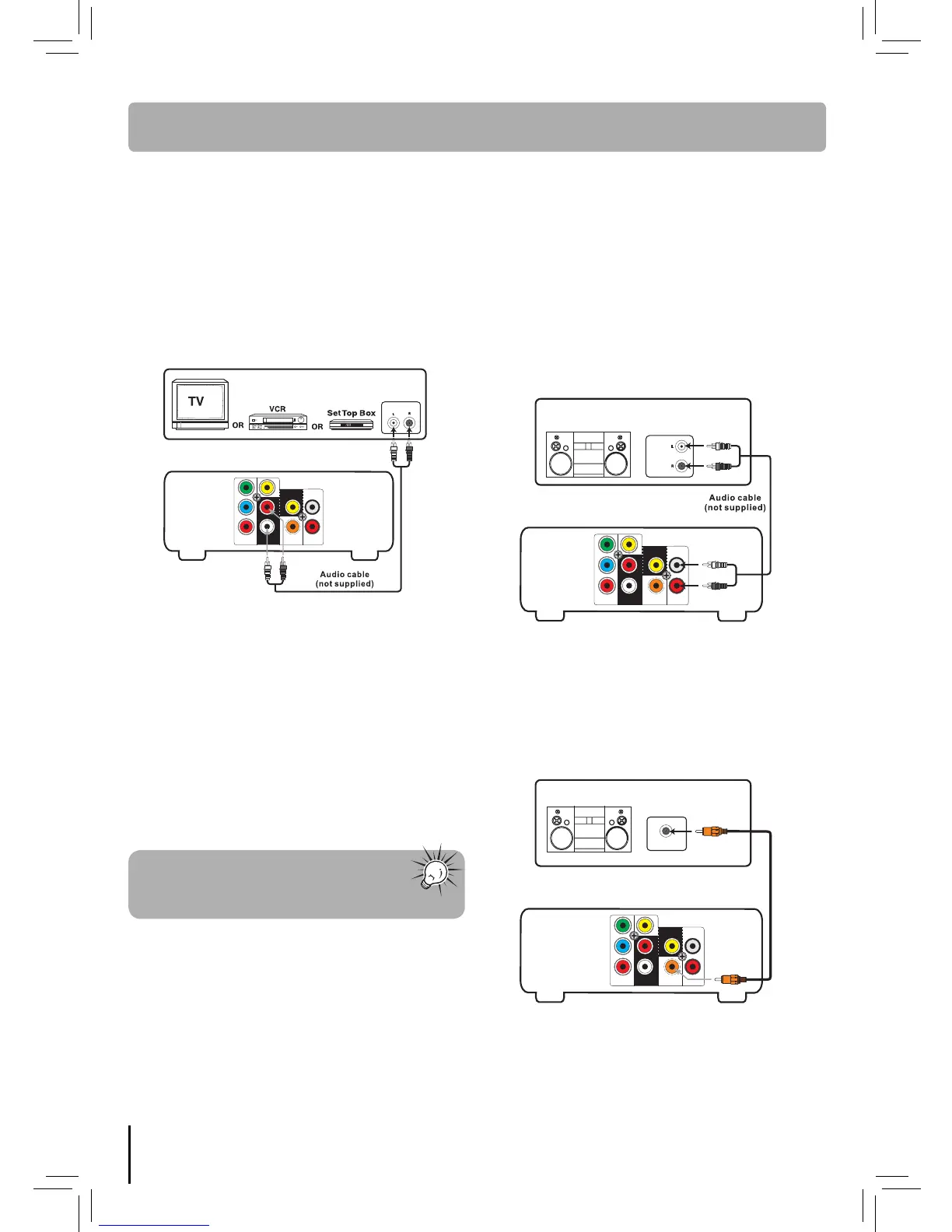

Getting sound from external sources such
as a Cable Set Top Box or a TV
Using AUDIO IN (ANALOG R/L) jacks
1. Connect the AUDIO IN (ANALOG R/L) jacks on
the back of the unit to the AUDIO OUT jacks on
TV, VCR, Set Top Box or other component.
2. Press the FUNCTION button on the remote
control to select AV IN mode.
Using AUX IN jack
1. Connect the Ø3.5mm AUX IN jack on the front
panel of the unit to the headphone output on
mp3 players.
2. Press the FUNCTION button on the remote
control to select the AUX IN mode.
Using DIGITAL AUDIO OUT jack
Using a coaxial digital audio cable (not supplied),
connect the DIGITAL AUDIO OUT on your unit
to the DIGITAL AUDIO IN jack on your another
equipment.
Note
Ø3.5mm jack to Ø3.5mm jack audio cable (not
included).
• If the AUX IN audio signal is mono,
you may not receive audio on all
speakers.
P R
DIGITAL
AUDIO OUT
COMPONENT
VIDEO OUT
VIDEO
IN
L
TV
VIDEO OUT
AUDIO OUT
R
L
Y
P
B
L
R
AUDIO IN
AUDIO OUT
Rear of the unit
This system allows you to connect to auxiliary
audio systems such as a second audio ampli er
or perhaps a wireless audio transmitter.
PR
DIGITAL
AUDIO OUT
COMPONENT
VIDEO OUT
VIDEO
IN
L
TV
VIDEO OUT
AUDIO OUT
R
L
Y
P
B
L
R
AUDIO IN
AUDIO IN
Audio System
Rear of the unit
Connecting AUDIO OUT to an auxiliary Audio
System (optional connection)
Using AUDIO OUT (ANALOG R/L) jacks
Using an audio cable (not supplied), connect the
left/right AUDIO OUT jacks on your unit to the
AUDIO IN jacks on your another equipment.
Rear of the unit
PR
DIGITAL
AUDIO OUT
COMPONENT
VIDEO OUT
VIDEO
IN
L
TV
VIDEO OUT
AUDIO OUT
R
L
Y
P
B
L
R
AUDIO IN
DIGITALAUDIO IN
Audio System
Coaxial Digital Audio cable
(not supplied)
Connections and Setup
