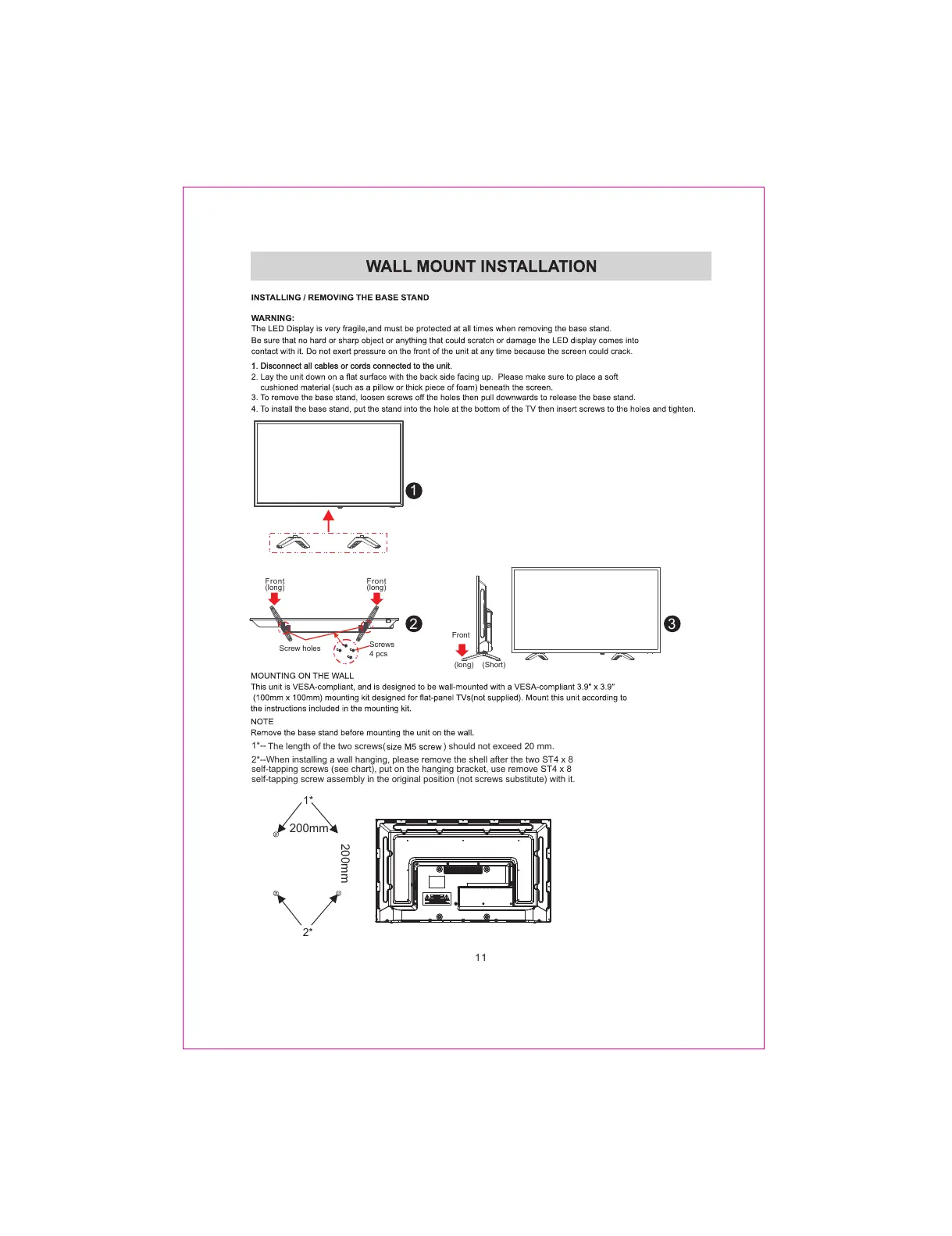

RCA TR3201A - Wall Mount Installation Guide; Base Stand Installation and Removal; TV Wall Mounting Procedures

1*--
The length of the two screws( ) should not exceed 20 mm.
2*--When installing a wall hanging, please remove the shell after the two ST4 x 8
self-tapping screws (see chart), put on the hanging bracket, use remove ST4 x 8
self-tapping screw assembly in the original position (not screws substitute) with it.
11
Screws
4 pcs
Front
(long)
Front
(long)
Front
(long) (Short)
Screw holes
1
2 3
1*
2*
200mm
200mm
