RCBS GRAND User Manual

5
NOTE: No wad present.

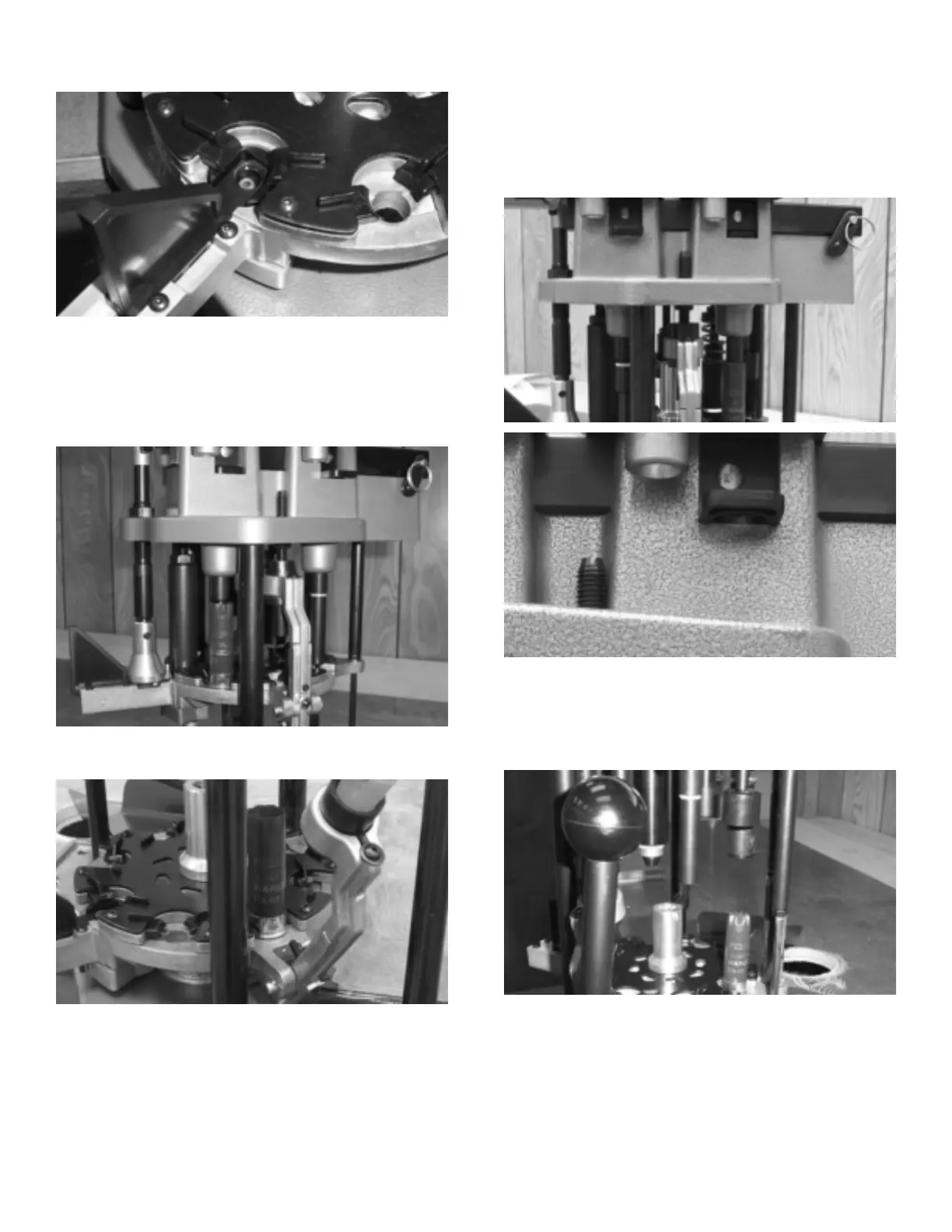

STATION 6
Crimp Start. An 8 point Crimp Starter is installed at the factory
(photo 28) . A 6 point Crimp Starter is included in the
accessory box.
STATION 4
Wad insertion (photo 25) .
25
STATION 5
Shot Drop and Wad Seating. Case activated, will not drop a
shot charge without a hull with a wad present. Drop Tube (A),
driven by the bottom of the wad cup, drives the Shot Shut Off
gate (B) to drop the shot charge
(photo 26) . If no hull is
present or a hull with no wad
(photo 27) , the Drop Tube
assembly does not activate the Shot Shut Off gate. The Wad is
seated at the top of the stroke.
26
27
28
➞
➞
A
B
➞
Primer Transfer Bar delivers the primer to the primer station
(photo 23) .
23
Primer is seated at the top of the stroke.
STATION 3
Powder Charge. Case activated, will not drop powder if a hull is
not present. Drop Tube (A) drives the Powder Shut Off gate (B)
to drop the powder charge
(photo 24) . If no hull is present, the
Drop Tube assembly does not activate the Powder Shut Off gate.
➞
➞
24
A
B
