6

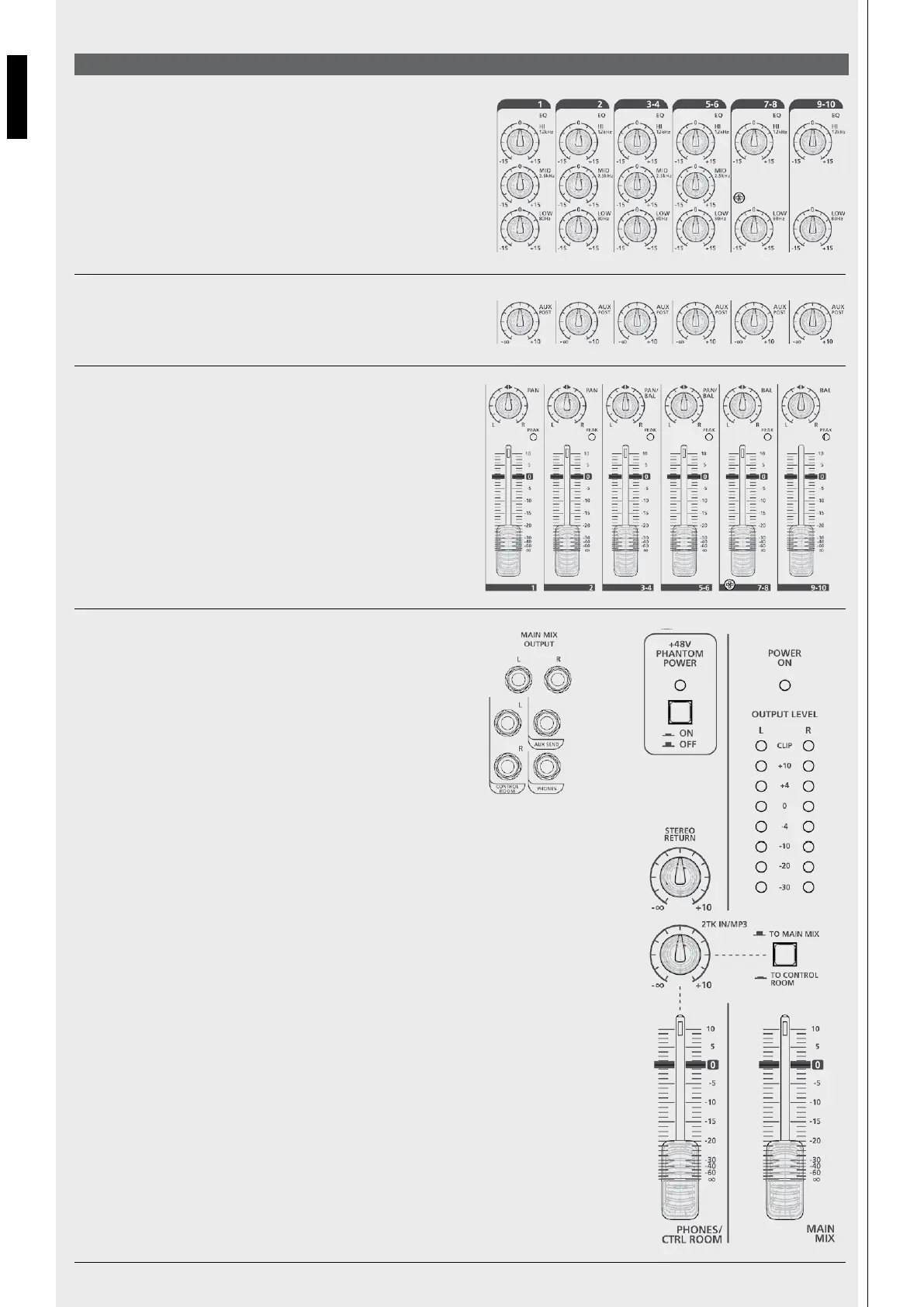

FUNCTIONS
EQ: a three‑band EQ is available for mono channels:
HI = ±15 dB@12 kHz
MID = ±15 dB@2.5 kHz
LOW = ±15 dB@80 Hz
Dual‑band EQ for stereo channels:
HI = ±15 dB@12 kHz
LOW = ±15 dB@80 Hz
AUX Auxiliary send, level ‑∞ to +10 dB. The signal is routed to the
AUX SEND output jack. The signal is extracted in post‑fader position.
PAN or PAN/BAL: This control define the position of the signal into the
stereo image in case of a MONO channel or the balance between left and
right in case of a STEREO channel.
FADERS Ch. 1 - Ch. 2: MONO Channels level control
FADERS Ch. 3/4 - Ch. 5/6: MONO/STEREO channels level control
FADERS Ch. 7/8 - 9/10: STEREO channels level control
ENGLISH
MAIN MIX output: Unbalanced TRS jacks. Plug in your active speakers or
main sound reinforcement system amplifier (for passive speakers) of here.
CONTROL ROOM output: Connect to these TRS Jack your Studio Monitor
or local speakers.
AUX SEND output: Connect to this TRS Jack a wedge stage monitor or an
external FX device. The processed signal from the FX device is returned to
the RCF mixing consoles mixer via the Stereo Return jacks.
PHONES: TRS stereo jack, Tip = Left, Ring = Right, Sleeve = Common Earth.
Plug your headphone in here to listen to MAIN MIX.
+48 V PHANTOM POWER ON-OFF switch: Switches on and off the
microphone input phantom power. It must be employed when condenser or
electret microphones are used.
OUTPUT LEVEL: These leds show the MAIN MIX OUTPUT level. Keep under
CLIP level to prevent generating distorted sounds or dangerous sound levels.
STEREO RETURN control: Defines the STEREO RETURN input signal level
routed to MAIN MIX output.
2TK IN/MP3 control: This defines the signal level from the 2TK IN input or
from optional cards (such as the RCF mixing consoles player, recorder or
Bluetooth cards).
TO MAIN MIX/TO CONTROL ROOM switch: Defines where to route the
signal coming from 2TK IN or optional cards: to MAIN MIX when in upper
position, to CONTROL ROOM when pressed (lower position).
CONTROL ROOM/PHONES control: Defines the level of the signal routed to
CONTROL ROOM output and PHONES output.
FADER MAIN MIX: MAIN MIX output level control.
