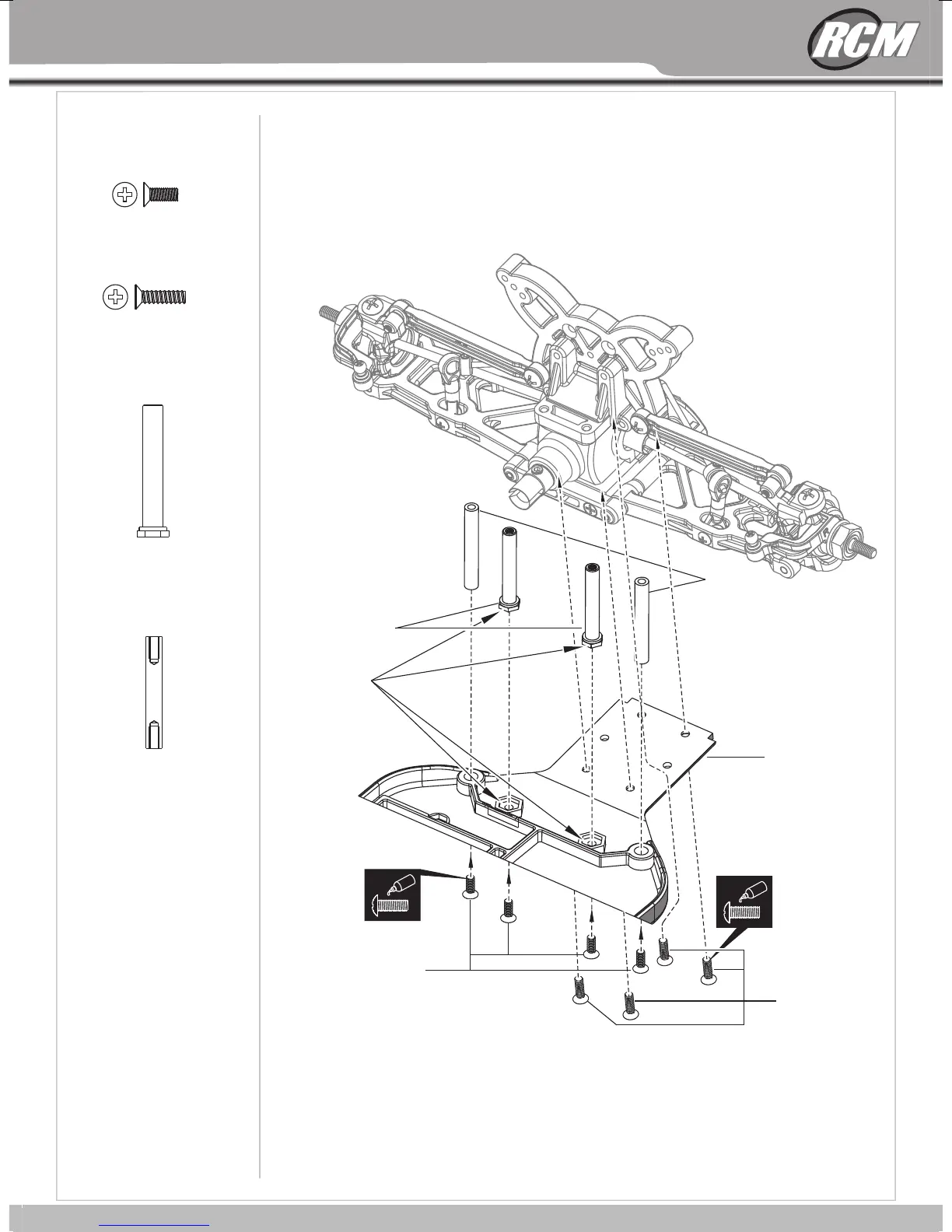

11.THE ASSEMBLING OF THE UPPER
DECK PILLAR, PIVOTING POINT AND CHASSIS
7200
7199
7249
7198
7246
x4
7249
x4
7246
7200
x2
7199
x2
M3X8 Flat Head Screw Set
M3X10 Flat Head Self-tapping
Screw Set
Aluminium strut
Servo Saver Post
1:1 Scale
Add appropriate
amount of oil
Add appropriate
amount of oil
Hexagon of the
pivoting point should
align to that of baseboard
19
7264
7264
7197
7197
7196
7247
7251
9.FRONT UPPER ROD SET ASSEMBLY
10.REAR UPPER ROD SET ASSEMBLY
7264
7264
7264
7195
7195
7264
7195
7264
x4
7196
x4
7251
x1
7247
7264
x4
M3x4.8 Screw rod
M3x4.8 Screw rod
M3X10 Pan Self-tapping Screw Set
M3X12 Flat Head Self-tapping
Screw Set
1:1 Scale
The camber of tire can be changed when you adjust the length of the pull rods
Different driving feeling appears with different pull- rod length
You can choose appropriate pull rods based on the field
The front up pull-rod 3°(selective use)
The front up pull-rod 2°(standard Use)
The front up pull-rod 1°(selective use)
The rear up pull-rod 3°(selective use)
The up pull-rod 2°(standard Use)rear
The up pull-rod 1°(selective use) rear
The camber of tire can be changed when you adjust the length of the pull rods
Different driving feeling appears with different pull- rod length
You can choose appropriate pull rods based on the field
B-10E
18
17
16
