RCm Kapton EB10 - Page 22

22.SERVO\ RECEIVER ESC\ ASSEMBLY
23.BATTERY ASSEMBLY
7233
7283
7287
7245
7250
7246
Receiver
90. 00°
Installment of the servo arm.
2.Adjust the servo in the middle, then
adjust the steering system to the same
situation. The servo rocker should keep an
angle of 90° ±5°with the horizon
1.Press the F crank set into servo
wheel(The tooth profile of the crank set
should aim at that of servo)
3.Press the servo rocker into the out tooth
of the crank set(The tooth profile of the
servo rocker should aim at the tooth profile
of the crank set), finally lock the screw.
7274
7284
7288
7211
7274
x4
7252
x1
7245
x1
7250
x1
7246
x2
7274
7252
7211
7286
7286
7286
M3X12 Pan Self-tapping Screw Set
M3X8 Flat Head Self-tapping
Screw Set
M3X6 Pan Self-tapping Screw Set
M3X10 Flat Head Self-tapping
Screw Set
R-Pin Set
Sponge double-
sided tape
Sponge double-
sided tape
25
1:1 Scale

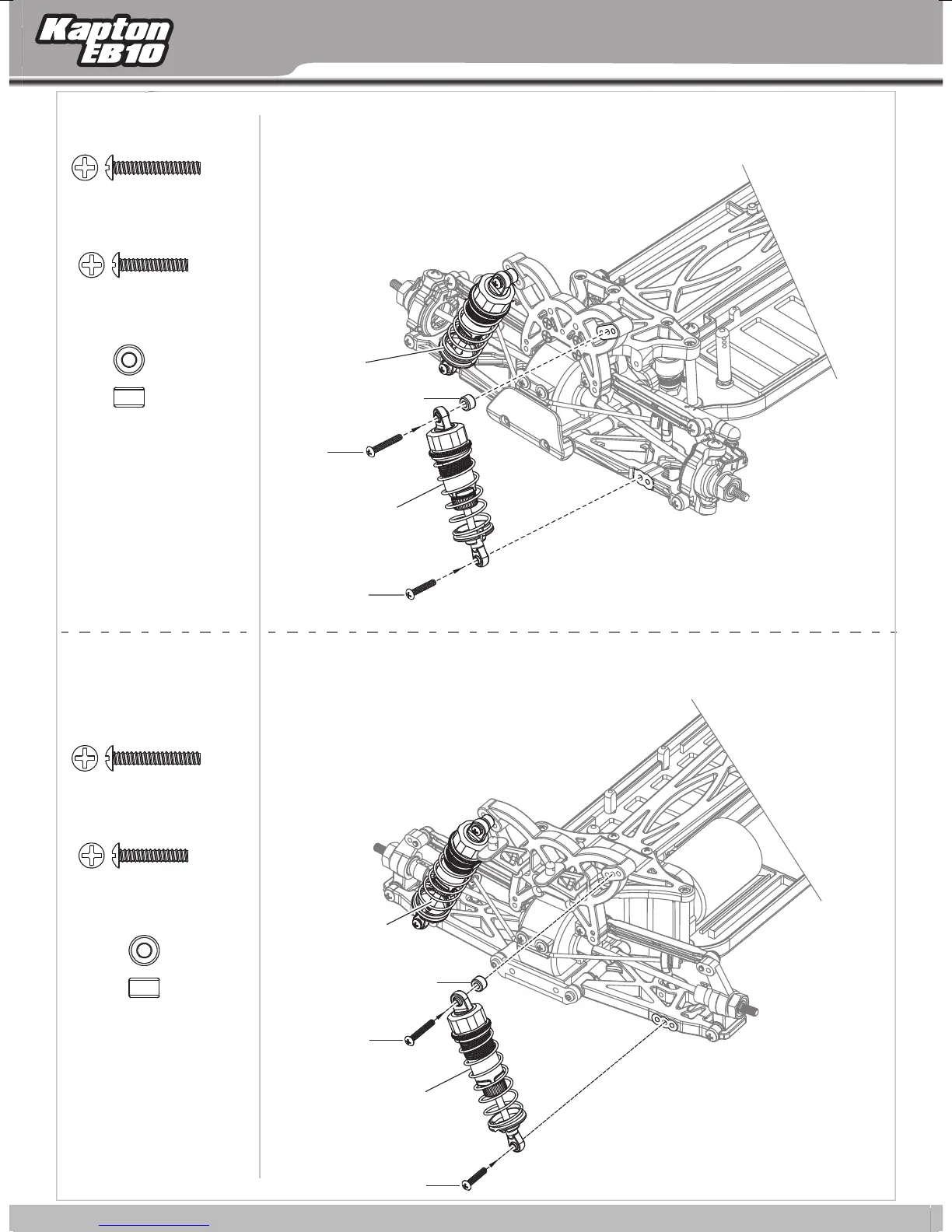

20. SHOCK ABSORBER ASSEMBLY FRONT
21.REAR SHOCK ABSORBER ASSEMBLY
7255
7254
7230
x2
7255
x2
7254
x2
7230
x2
7255
x2
7254
x2
7230
7219
7219
7255
7230
7254
7220
7220
M3X20 Pan Self-tapping Screw Set
M3X16 Pan Self-tapping Screw Set
M3X20 Pan Self-tapping Screw Set
M3X16 Pan Self-tapping Screw Set
Shock End Set
Φ7x4.5
Shock End Set Φ7x4.5
B-10E
24
1:1 Scale
23
22
