SURE 49

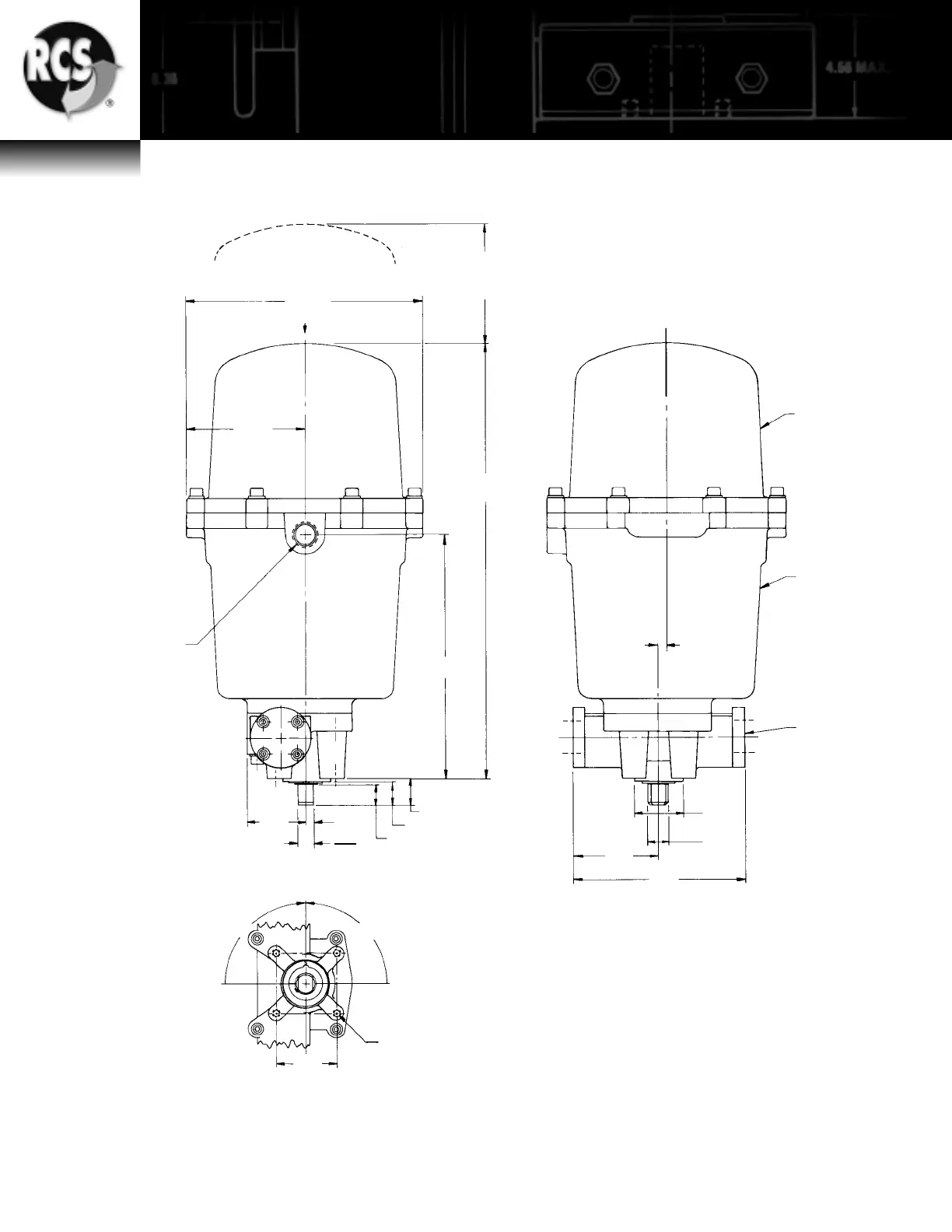

NEMA 4, 6, AND 7 DIMENSIONAL INFORMATION

Figure 4

Operational Information:

Standard unit is viewed from the top looking thru the actuator.

Output shaft is motorized in a counter-clockwise direction and

is returned to its original position by a spring in a clockwise

direction. Unit designation is spring clockwise.

Optional unit: The output shaft is motorized in a clockwise

direction and returned counter-clockwise to the original position.

Unit designation is spring counter-clockwise.

Allow 5" Clearance

For Cover Removal

5.11

3/4-14

N.P.T.

18.18

Ref.

Control

Cover

Spring

Housing

Shock

Absorber

.334

7.125

3.56

.875

Dia.

1.998

Pilot Dia.

10.09

Ref.

Spring CCW

2.250

Sq.Ref.

Spring CW

5/16-18 UNC-2B x .63 Dp.

4 Places Typ.

2.50

.86

1.02

1.145

.312

.621

.625

10.22

Top
