- 6 -
将电源开关用预先准备好的连接线焊接在供电 Key 背面焊盘。
e) 装好输出接线端子,将准好的带有冷压端子的输出线接到
输出接线端子上,并螺帽拧紧(输出端子上正下负安装,输
线不要接错)

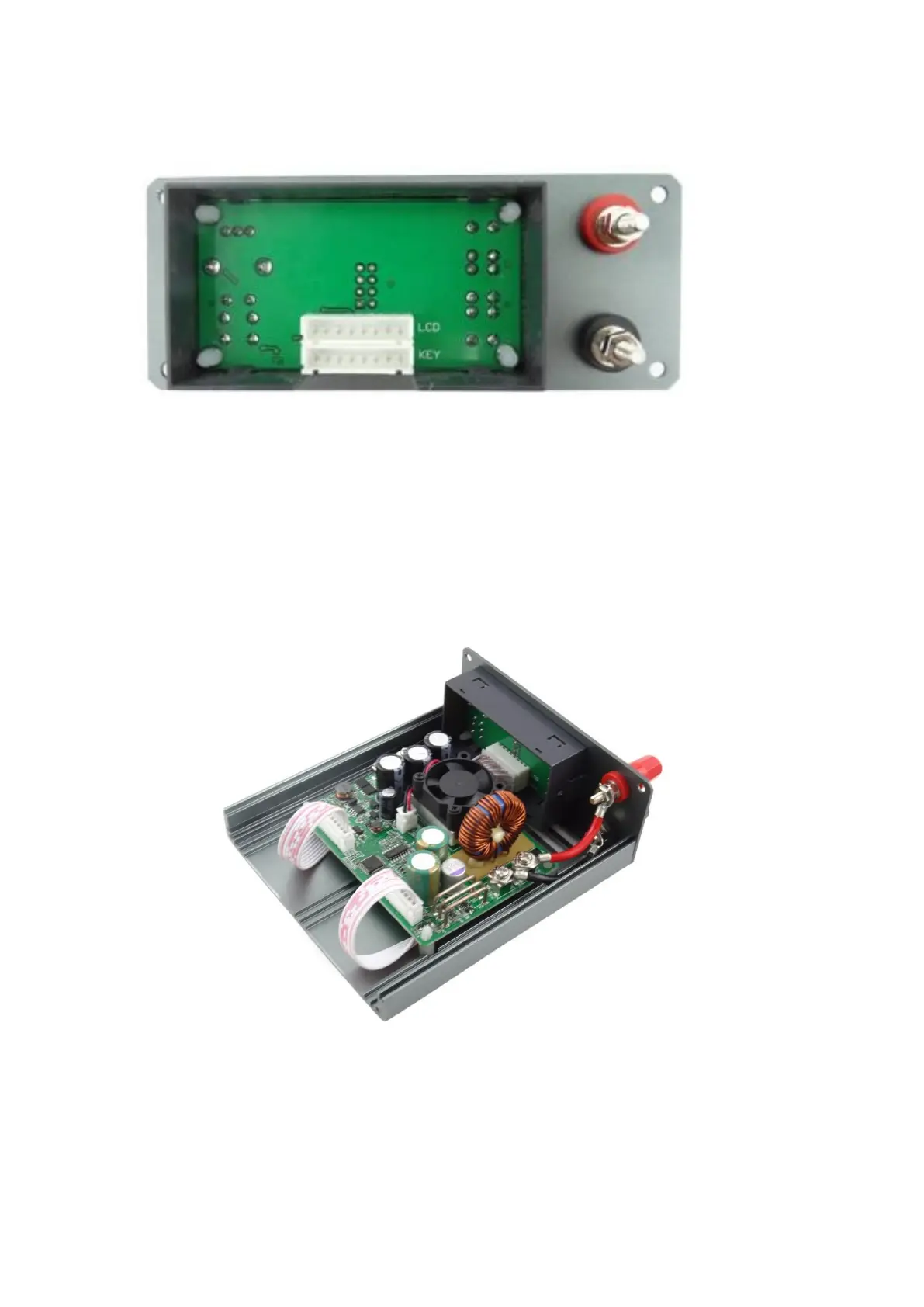

f) 本外壳针对的产品分为显示模块和功率模块,安装过程为:
安装显示模块将其卡入前面板卡槽(卡入过程用力要适当,
防止造成前面板变形)
安装上显示模块和功率模块连接的排线,注意 PCB 板的丝印
