- 7 -

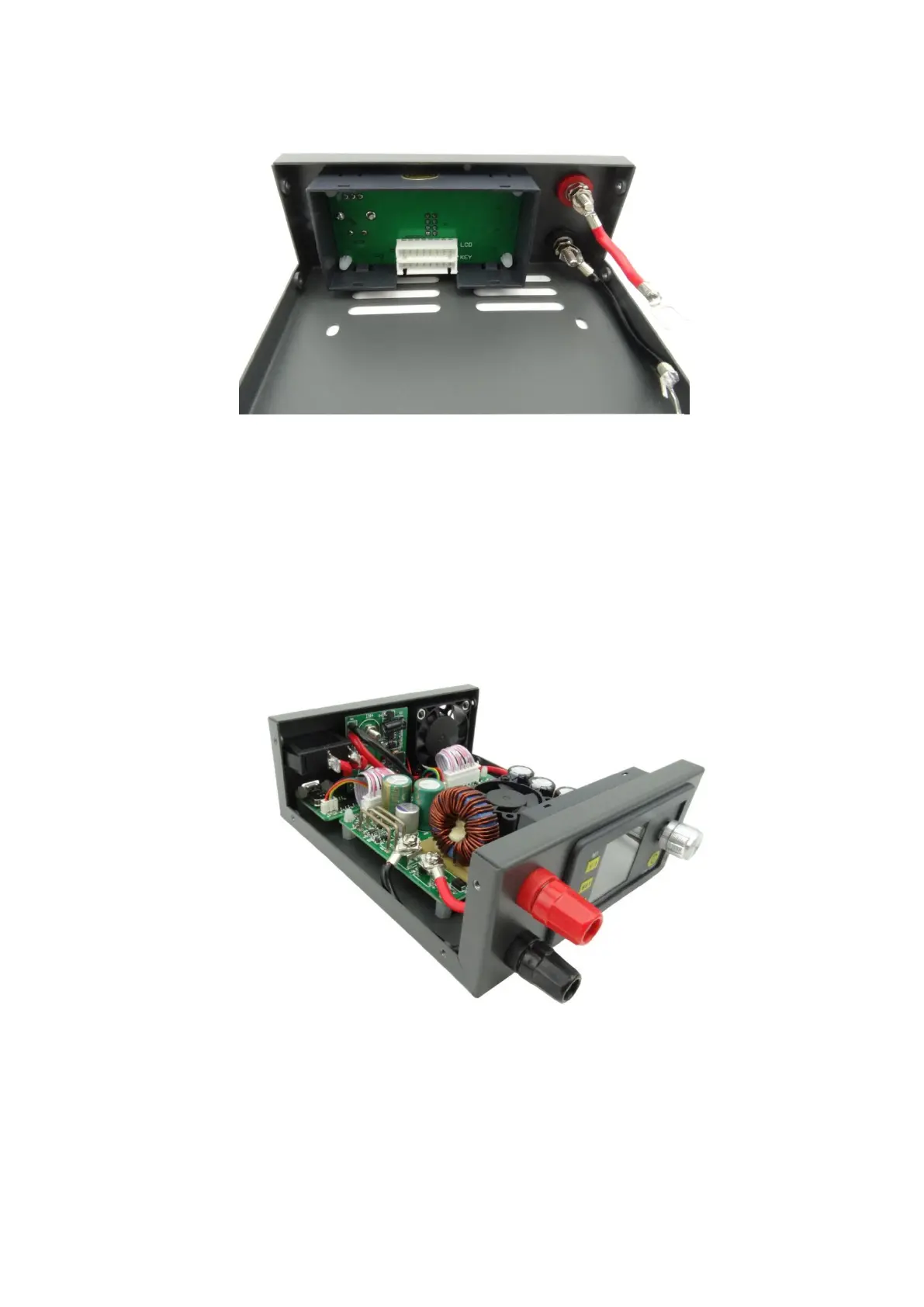

e) 安装好输出接线端子,将准备好的带有冷压端子的输出线连接到
输出接线端子上并用螺母拧紧(输出端子上正下负安装,输出
线不要接错)
f) 本外壳针对的产品分为显示部分、功率部分、USB 通信部分,
装过程为:
首先安装通信部(如果产品不附带通信功能本步骤忽略
使用尼龙支撑柱和尼龙螺母把通信板支撑起来,然后使用通
信板固定螺丝将其固定在底壳预定位置上
