RD DPS5020 Installation Instructions

- 9 -
2.1 Kit parts list
Item
Specification
Qty.
Remark
Front panel
49.2*120*130
MM(H*W*D)
1
36 aluminum
Rear panel
1
Upper cover plate
1
Lower cover plate
1
Fan
4010
1
5V power supply
Fan power supply board
36*40（L*W）
1
Binding post
M4*36
4
Red 2pcs
Black 2pcs
Cold press connecting
terminal
UT2.5-4
7
Spade Terminal
Rocker Switch
KCD3
1
Connecting line
RV 2.5 square single
core flexible cord
2
Red 30cm
Black 25cm
Screw for housing
Flat head M3*6
8
Fan fixed screw
Fillister head M3*13
4
Screw 4 pcs
Nut 4 pcs
Power module fixing screw
Fillister head M3*5
4
Transparent sticky mat
Φ12*4
4

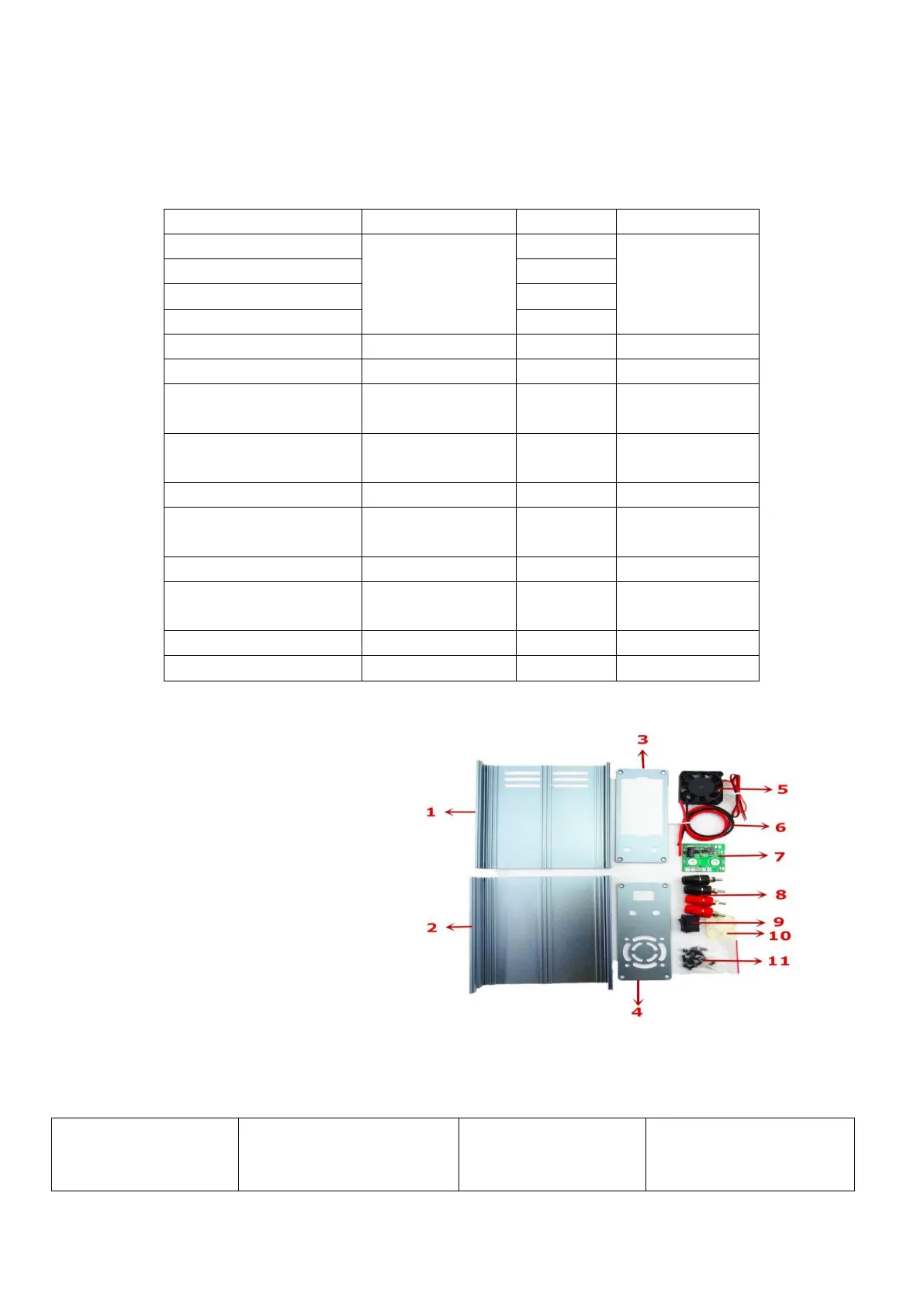

2.2 Kit parts picture
1- Lower cover plate
2- Upper cover plate
3- Front panel
4- Rear panel
5- Fan
6- Connecting line
7- Fan power supply board
8- Binding post
9- Rocker Switch
10- Transparent sticky mat
11- Screw
Note:
Screw for housing Flat
head M3*6 8pcs
Fan fixed screw Fillister
head M3*13 Screw 4 pcs
Nut 4 pcs
Cold press connecting
terminal UT2.5-4 7pcs
Power module fixing screw
