90
º
9
RECCO THEORYSEARCH METHODS

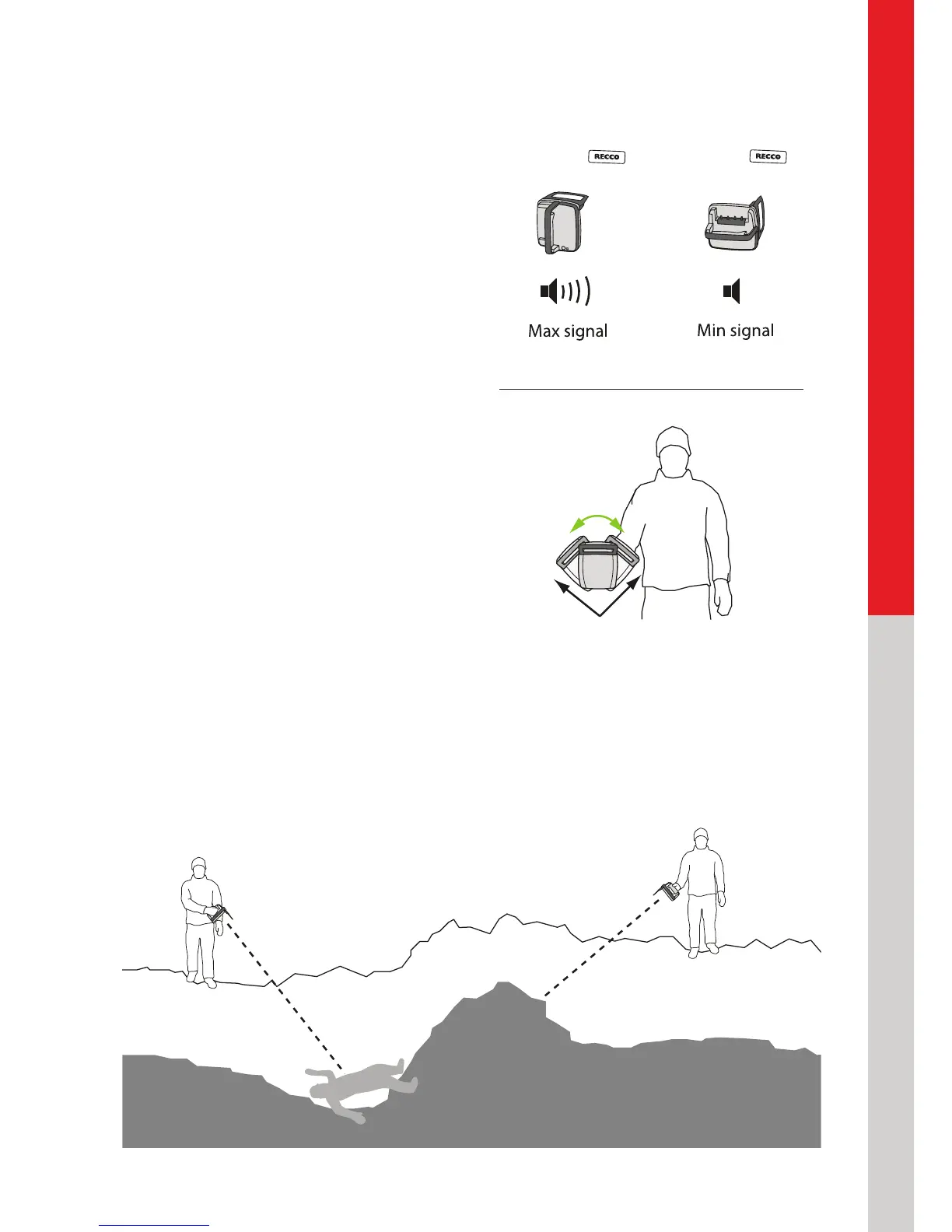

POLARISATION
The RECCO system is polarized
to achieve the best signal.
When the antenna is parallel with
the reflector the range and signal
are at maximum.
Therefore, rotate the detector
slightly from side to side to seek
the maximum signal.
TERRAIN AND DEBRIS OBSTACLES
Differences in the buried terrain and the irregular surface of the de-
bris can mean different depths of snow to search through.
5. RECCO BASICS
