Recoil RW8D2 - Speaker Connection Diagrams

RW8D2/4,RW10D2/4,RW12D2/4
SUBWOOFER SPEAKER SYSTEM 8/10/12-INCH

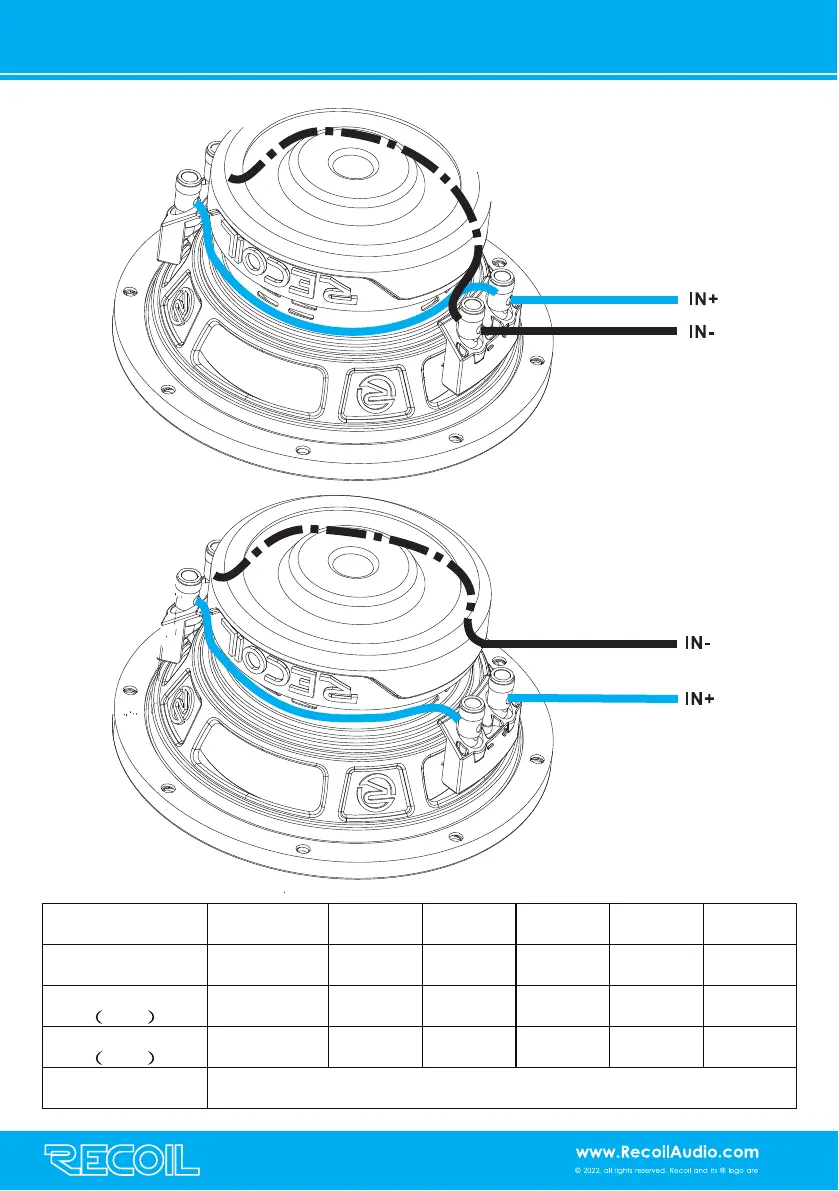

PARALLEL
CONNECTION
SERIES
CONNECTION
Speaker DCR
Speaker
(1 PC)
Parallel Connection
2 PCS
series connection
2 PCS
Connection
RW8D2 RW8D4 RW10D2 RW10D4 RW12D2 RW12D4
2+2 2+2 2+2
4+4 4+4 4+4
0.5/2 1/4 0.5/2 1/4 0.5/2 1/4
2/8 4/16 2/8 4/16 2/8 4/16
Measurements in Ohm (Ω)
（ ）
（ ）
