Red Sea REEFER 170 User Manual

C
L
N
V1
P
R
S
V2
X 2
X 6
X 6
X 32
X 44
X 12
X 32
X 1
X 1
X
2
ST4.0 x16
ST3.5 x14
X
32
D
B
A
C
G
H x2
E
x2
E
B1
B1
G
F
B
A
H
H
F
M
Y
B1
Cabinet
ST5x35
V3
W

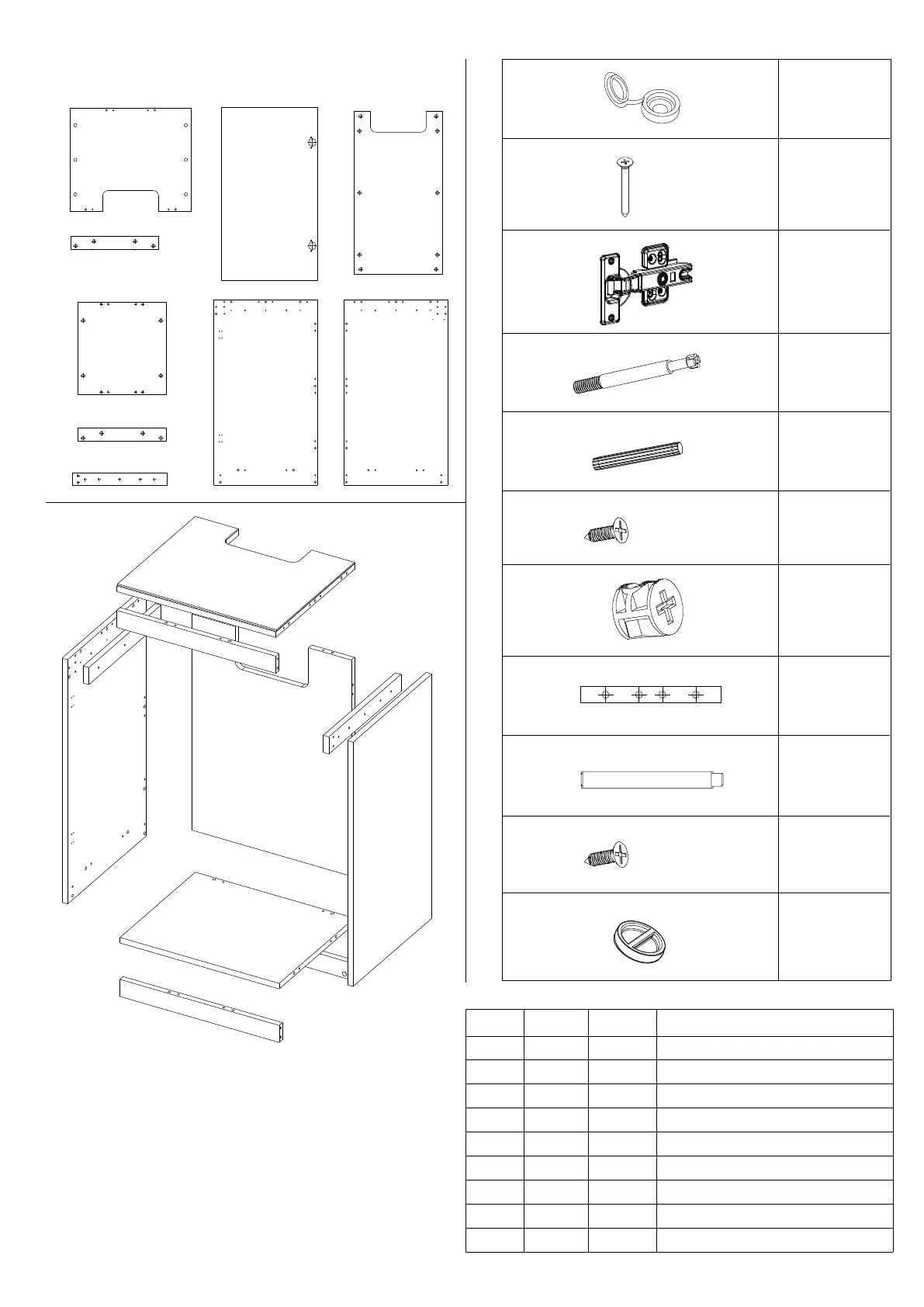

170A Black White Part Description
A 5272B-P 5272B-P Cabinet Bottom
B 5274B-P 5274B-P Cabinet Rear
B1 4904B 4904B Cabinet Top Side Support
C 4899B 4899B Cabinet Top
D 5275B 5275W Cabinet Door
E 5279B-P 5279B-P Cabinet Front Upper
F 4900B 4900WB Cabinet Side Left
G 4901B 4901WB Cabinet Side Right
H 5273B-P 5273W-P Cabinet Sockel

Red Sea REEFER 170 Specifications

General

Lighting	Not included
Skimmer	Not included
Display tank water volume	130 liters
Display tank length	60 cm / 23.6 inches
Display tank width	20" (50cm)
Total system height with cabinet	135 cm
Return Pump Outlet	0.63" (16mm)
Recommended Flow Rate	2000 lph / 530 gph
Stand Material	Marine-Spec plywood cabinet
Chiller Chamber	Yes
