Reece Roca - Spare Parts Identification; Component List and Part Numbers

PARTS

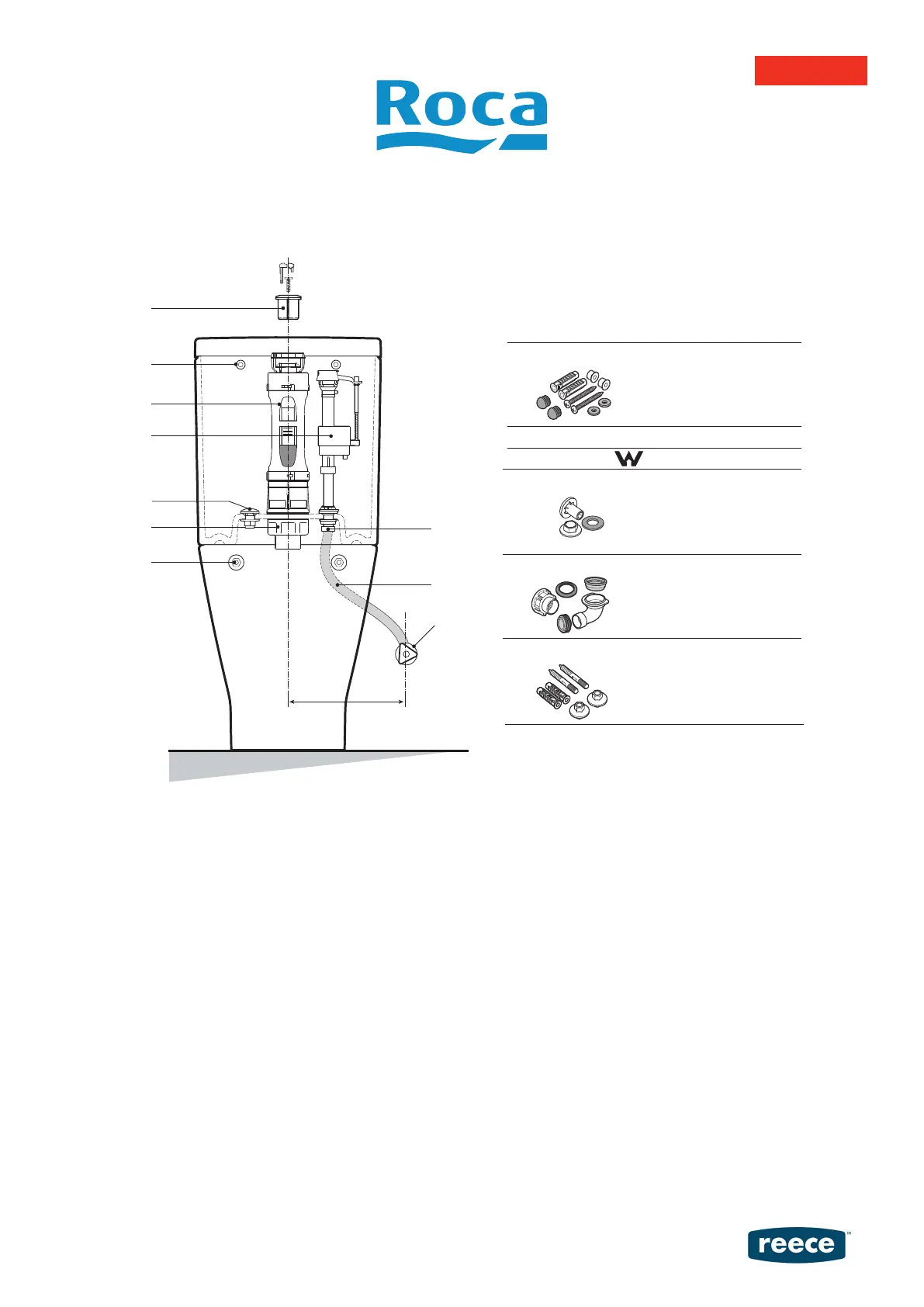

Push Button Assembly
Inlet Valve
Outlet Valve
Cistern Fixing Kit
Pan Fixing Kit
Push Button Assembly
Inlet Valve
Outlet Valve
The Gap Clean Rim Back Inlet Parts
The Gap Clean Rim Bottom Inlet Parts
1 - AH0001800R
2 - AV0014700R
3 - AH0009200R
4 - A822062000
5 - A822085100
6 - AV0014900R
7 - AV0007500R
1 - AH0001800R
2 - AV0014700R
3 - AH0009200R
4 - A822096400
5 - AV0014900R
6 - AV0007500R
Outlet Flush Assembly
Cistern Fixing Kit
Pan Fixing KIt
Outlet Flush Assembly
Cistern Locating Bolt
L=500
1/2”
200
1/2”
1
2
3
4
6
7
5
1
2
3
4
5
6
100
~740
Push Button Assembly
Inlet Valve
Outlet Valve
Cistern Fixing Kit
Pan Fixing Kit
Push Button Assembly
Inlet Valve
Outlet Valve
The Gap Clean Rim Back Inlet Parts
The Gap Clean Rim Bottom Inlet Parts
1 - AH0001800R
2 - AV0014700R
3 - AH0009200R
4 - A822062000
5 - A822085100
6 - AV0014900R
7 - AV0007500R
1 - AH0001800R
2 - AV0014700R
3 - AH0009200R
4 - A822096400
5 - AV0014900R
6 - AV0007500R
Outlet Flush Assembly
Cistern Fixing Kit
Pan Fixing KIt
Outlet Flush Assembly
Cistern Locating Bolt
L=500
1/2”
200
1/2”
1
2
3
4
6
7
5
1
2
3
4
5
6
100
~740
Spare Parts
page 5 of 5
