10
8540554
•
20 Aprile 2011
•
Rev.10

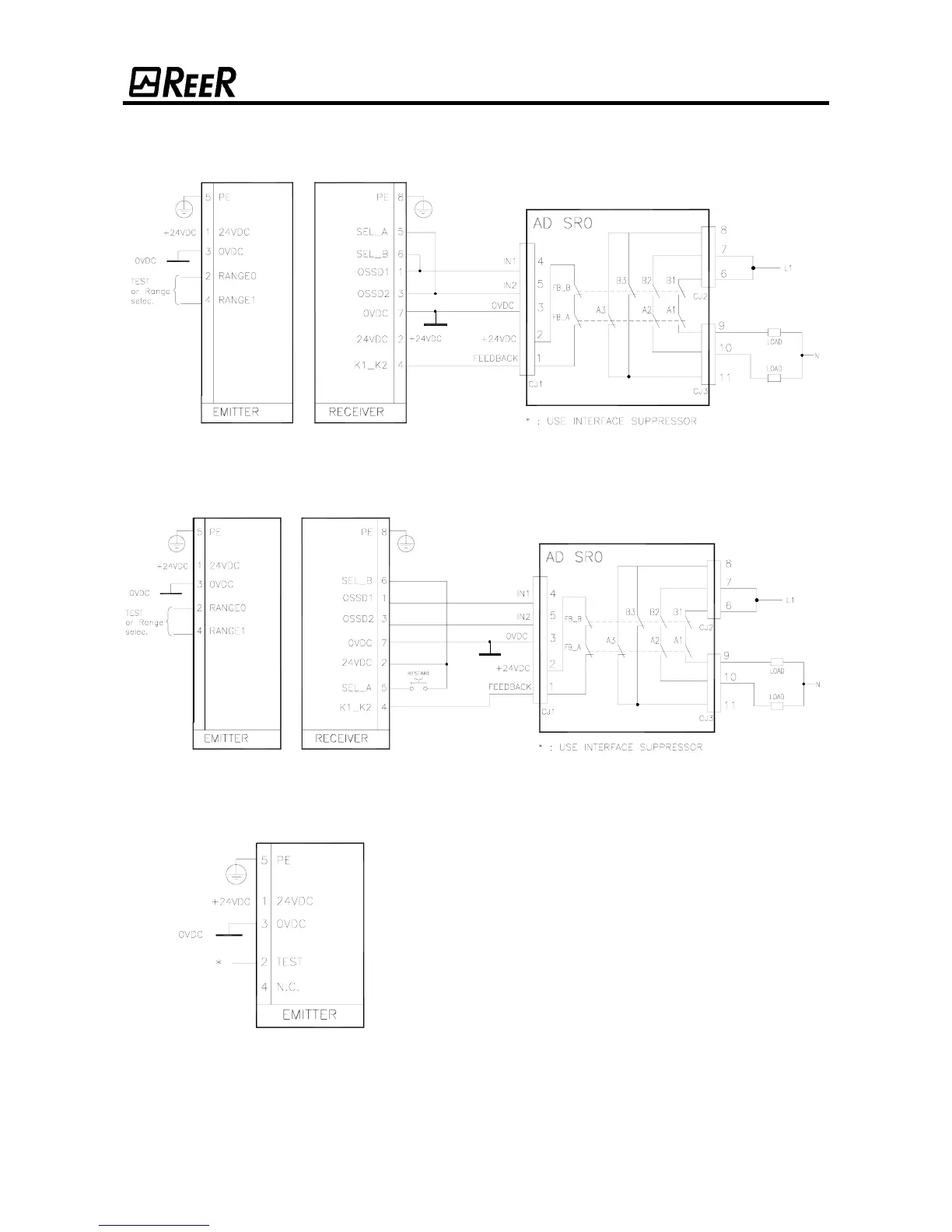

Example of connection of the AD SR0 module with AX / VX / VXL safety light
curtain in AUTOMATIC operatione mode
Example of connection of the AD SR0 module with AX / VX / VXL safety light
curtain in MANUAL operatione mode
Connection of VXL Emitter (modification of the above schematics)
* If the TEST function is not required by the
application, connect pin 2 of the emitter to
+24Vdc.
To Next Page
