USE OF MOUSE RIGHT BUTTON
ON BLOCK INPUT / OUTPUT
 Copy / Paste
 Delete
 Delete all the assigned pins
 Alignment with other functional blocks (multiple selection)
 On-line Help
 Monitor Mode: Show / Hide Properties window
 The block Status: pin input enable / disable logical negation
ON BLOCK OPERATORS
 Copy / Paste
 Delete
 Alignment with other functional blocks (multiple selection)
 On-line Help
 On input pin: activate / deactivate logical negation
 Monitor Mode: Show / Hide Properties window
ON TERMINALS
 Alignment with other blocks
ON CONNECTION (WIRES)
 Delete
 Display full path of the connection (network)

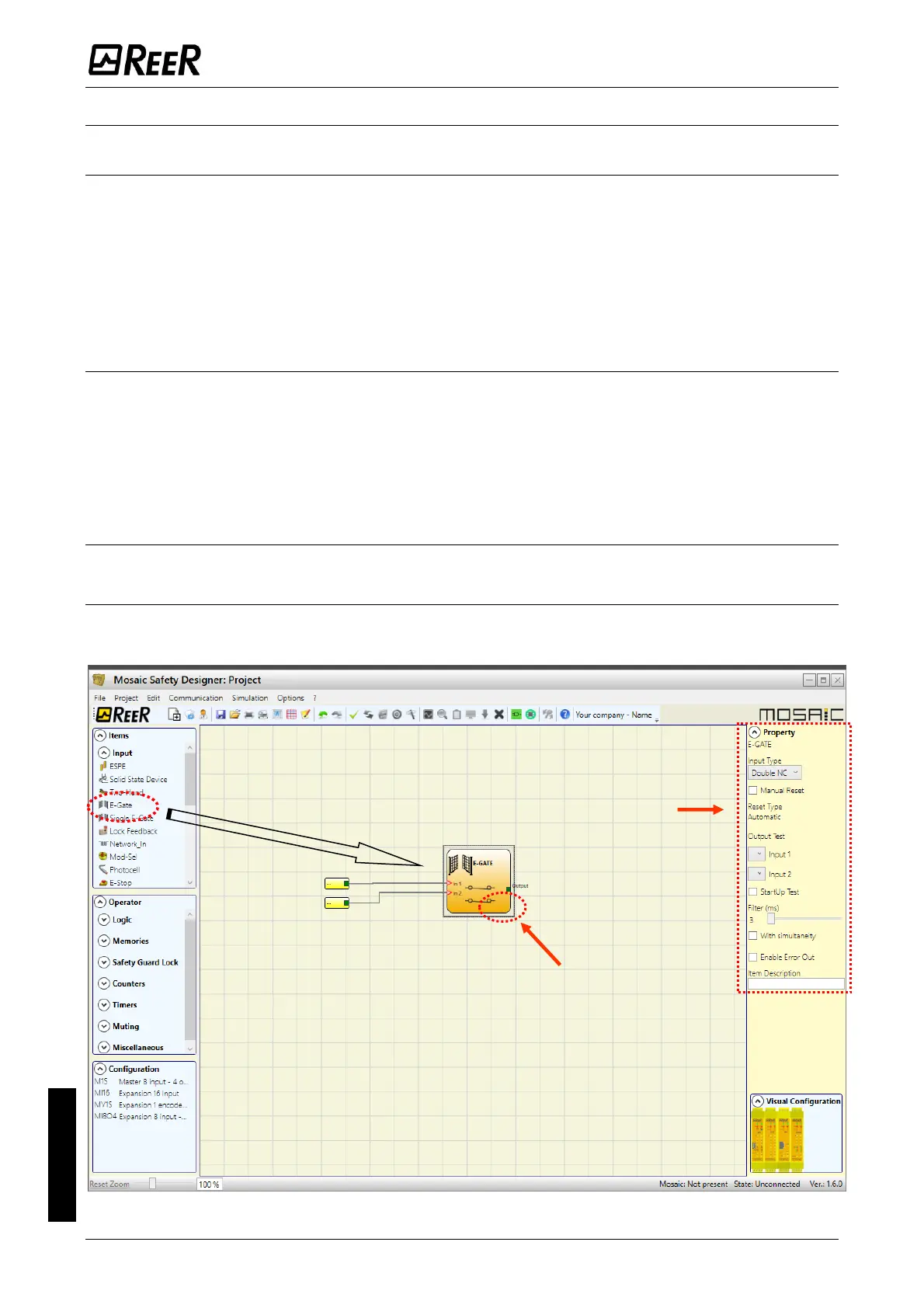

Figure 57
DESIGN
AREA
OBJECT
PROPERTIES
WINDOW
Connection
start point
