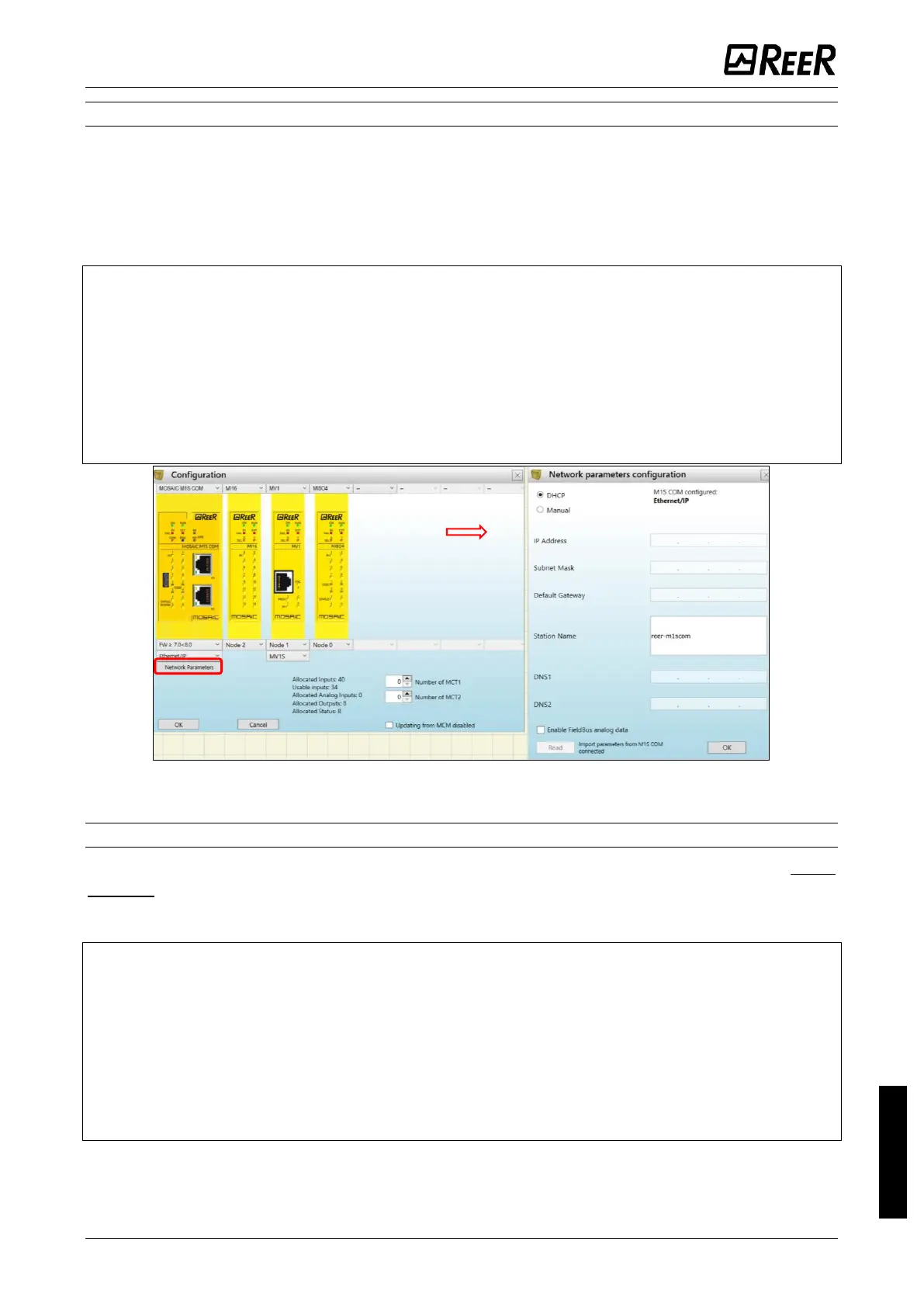

EtherNet/IP parameters
When MOSAIC M1S COM has to be connected with EtherNet/IP fieldbus you can
choose if the stack automatically set the LAN parameters (DHCP active) or (selecting
"Manual") directly complete the necessary network parameters:
IP Addres, Subnet Mask, Default Gateway, DNS1, DNS2, Station Name
(optional).
âž”
"Enable FieldBus analog data" will activate the transmission of MA2/MA4 analog data.
âž”
Please note that the selection of this tick is a function of the process map (if "Enable FieldBus
analog data" is selected, a process map with analog data must be used).
âž”
Clicking on "Read" enables MSD to compile the network parameters by reading them from those
set on the connected MOSAIC M1S COM master. The required parameters must be those of the
currently loaded fieldbus. For example, if the connected module is ModBus TCP and you try to
read the network parameters by setting Profinet RT as "Configuration" then reading will not be
enabled.
Figure 65
Profinet RT parameters
When MOSAIC M1S COM has to be connected with Profinet RT fieldbus you must
directly complete the necessary network parameters:
IP Addres, Subnet Mask, Default Gateway, Station Name.
âž”
"Enable FieldBus analog data" will activate the transmission of MA2/MA4 analog data.
âž”
Please note that the selection of this tick is a function of the process map (if "Enable FieldBus
analog data" is selected, a process map with analog data must be used).
âž”
Clicking on "Read" enables MSD to compile the network parameters by reading them from those
set on the connected MOSAIC M1S COM master. The required parameters must be those of the
currently loaded fieldbus. For example, if the connected module is ModBus TCP and you try to
read the network parameters by setting Profinet RT as "Configuration" then reading will not be
enabled.
