Reflex iC60N - Page 15

Installation
A9MA03EN 02/2012 15

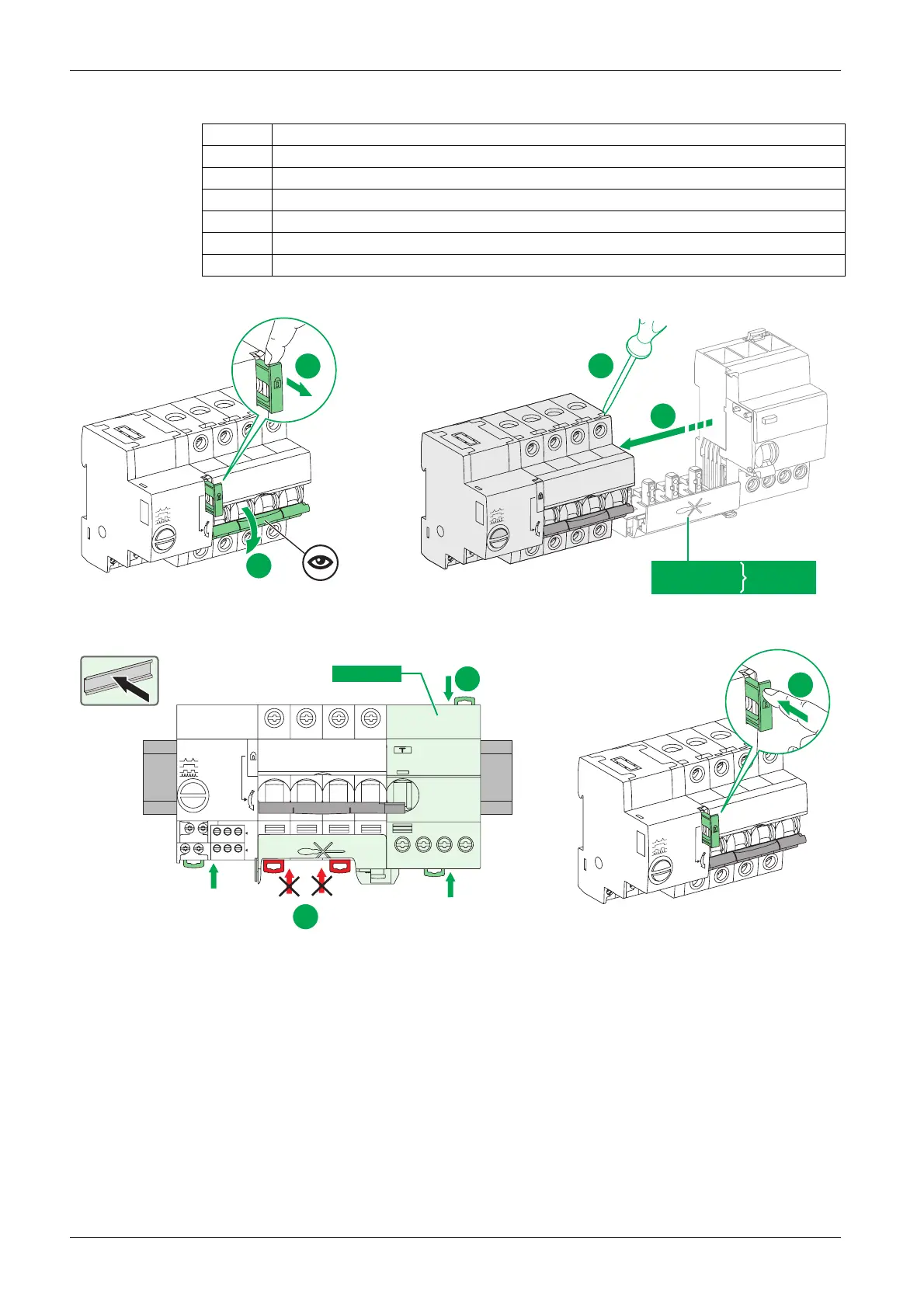

Assembly procedure with Vigi iC60 A9Q••••• auxiliary
Step Action
1 Pull out the padlocking device
2 Check that the handle is in OFF position (circuit breaker open)
3 Remove the blanking plate on the right-hand side of the Reflex iC60 circuit breaker using a screwdriver
4 Assemble the Vigi iC60 auxiliary with the Reflex iC60 circuit breaker
5 Place the assembly on the DIN rail and push in the 3 locking clips
6 Push the padlocking device back in
