Technical Characteristics
42
A9MA03EN 02/2012
Control Circuit: Inputs Y1 and Y2
Remote Indication: O/C, auto/OFF
NOTE: (Filtering) The O/C and auto/OFF contacts may change state for less than 10 ms. These brief
changes of state (bounce) must not be taken into account and must be filtered by a device external to the
Reflex iC60 circuit breaker.
Ti24 Interface (according to IEC 61131)

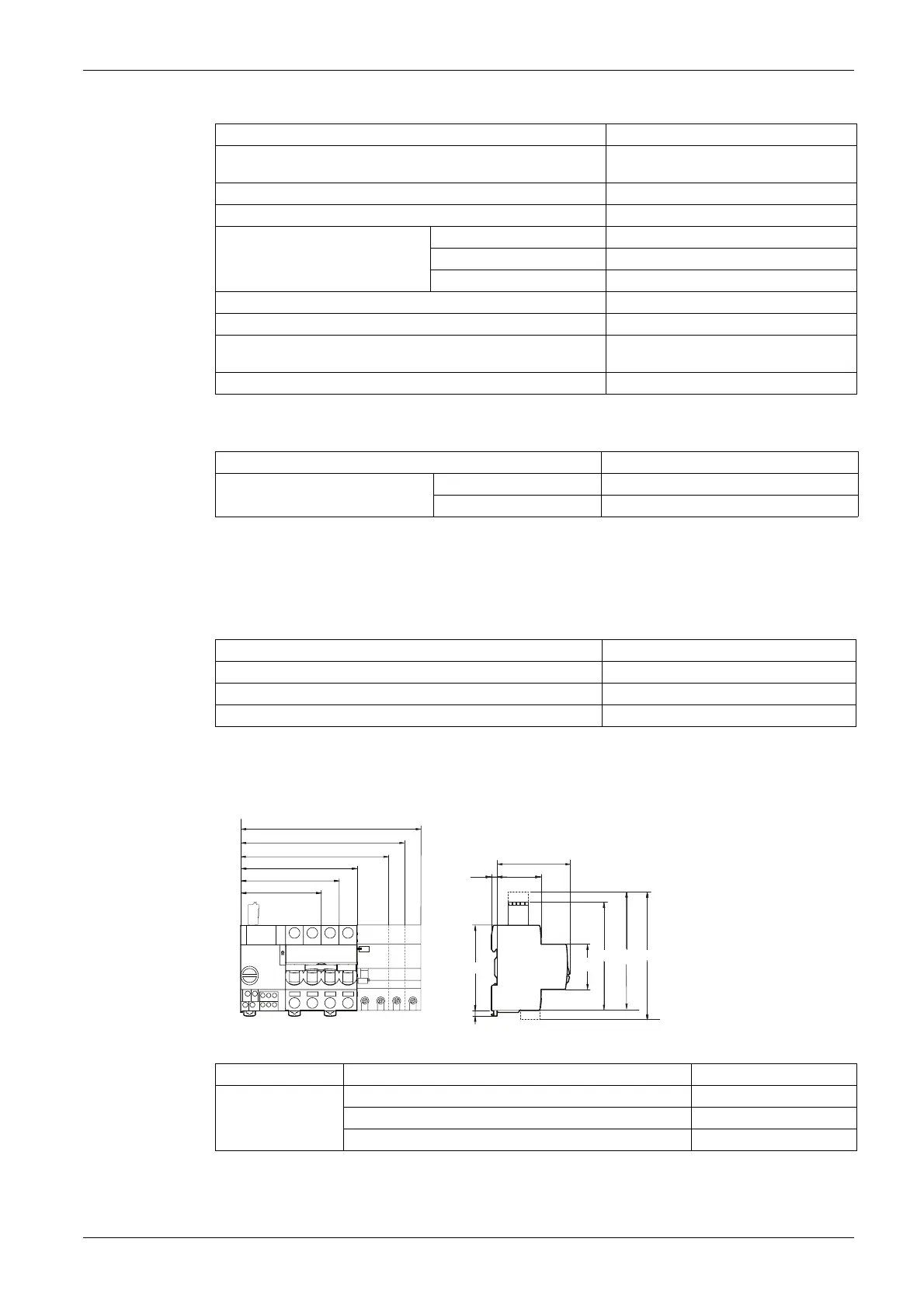

Dimensions
The dimensions of the Reflex iC60 integrated control circuit breaker, optionally assembled with a Vigi
iC60 are as follows:
The widths of the Vigi iC60 auxiliaries are as follows:
Characteristics Value
Control voltage Uc of inputs Y1 and Y2 230 V AC (according to IEC 61131)
24 to 48 V AC/DC, with iMDU auxiliary
Minimum duration of control pulse for input Y2 200 ms
Maximum response time of input Y2 250 ms
Inrush currents for 230 V AC/50 Hz
control
2P 4.2 A peak
3P 8.2 A peak
4P 16.2 A peak
Consumption ≤ 1 W
Inrush consumption < 1000 VA
Length of control wires for inputs Y1 and Y2 at 230 V AC
z cable: 100 m
z wires in a cable sheath: 500 m
Consumption of inputs Y1/Y2 230 V AC type 1 according to IEC 61 131-2
Characteristics Value
Capacity of volt-free changeover
contacts O/C/auto/OFF
Minimum 0.1 A (24 V DC)
Maximum 1 A (230 V AC)
Characteristics Value
Consumption of input Y3 230 V AC type 1 according to IEC 61 131-2
Maximum capacity of O/C/auto/OFF outputs 100 mA DC according to IEC 61 131-2
Length of control wires for input Y3 at 24 V DC/AC 500 m
Auxiliary Type Width
Vigi iC60 2P 36 mm
3P 54 mm
4P 72 mm
Vigi iC60
X = 117
X = 99
X = 81
6
84
45
4P
3P
2P
X + 36
X + 54
X + 72
4P
3P
2P
44.5
5.5
128
108 118
77
