Reflex Lexicon - Disassembly and Reassembly Procedures

Reflex
Service
Manual
Performance
Verification

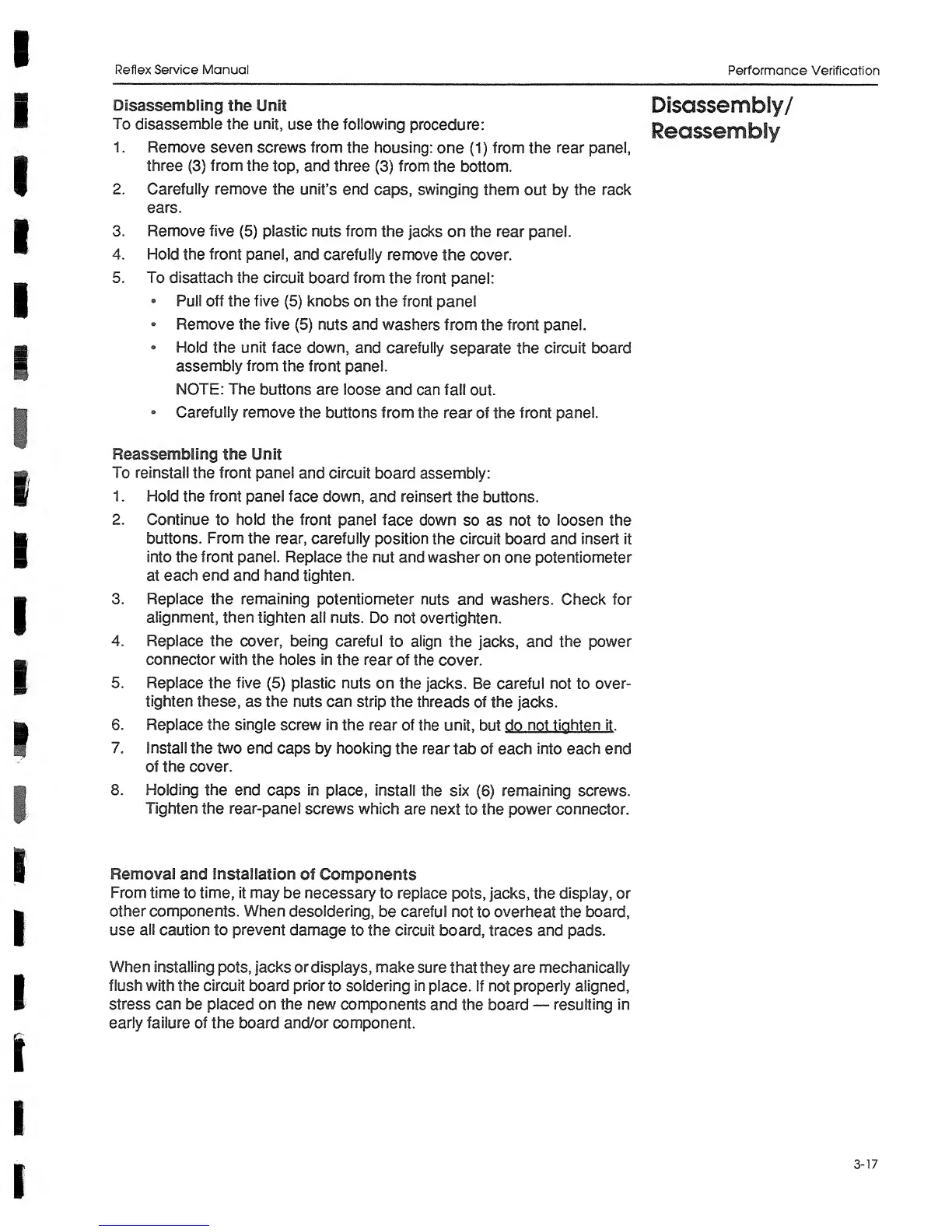

Disassembling
the Unit
To disassemble the unit,
use
the
following
procedure:
1 .
Remove seven
screws from
the housing:
one
(1
)
from
the rear panel,
three
(3)
from
the
top,
and
three
(3)
from
the
bottom.
2.
Carefully remove the
unit’s
end
caps,
swinging
them
out by
the rack
ears.
3.
Remove
five
(5)
plastic
nuts
from
the jacks
on the rear panel.
4.
Hold
the
front
panel, and carefully
remove
the cover.
5.
To disattach the circuit
board
from
the front
panel:
•
Pull
off the five
(5)
knobs on
the
front
panel
•
Remove the
five
(5)
nuts
and
washers
from
the
front
panel.
•
Hold the unit face
down,
and carefully
separate the
circuit
board
assembly
from
the front
panel.
NOTE:
The
buttons are
loose and
can fall
out.
•
Carefully
remove the
buttons from
the rear of the
front
panel.
Reassembling the Unit
To
reinstall
the
front
panel
and
circuit
board assembly:
1 .
Hold the
front
panel
face down, and
reinsert
the buttons.
2.
Continue
to
hold the front
panel face down
so
as
not
to
loosen
the
buttons.
From
the rear, carefully
position
the circuit board and
insert
it
into the
front
panel. Replace the
nut
and
washer
on
one
potentiometer
at
each end
and hand tighten.
3.
Replace the remaining
potentiometer
nuts and washers.
Check for
alignment,
then tighten
all
nuts.
Do not
overtighten.
4.
Replace the
cover, being careful
to
align
the
jacks,
and
the
power
connector with
the holes
in
the rear
of
the cover.
5.
Replace the
five
(5)
plastic
nuts on the
jacks. Be careful not
to
over-
tighten
these,
as
the
nuts can strip
the
threads
of the jacks.
6.
Replace the
single
screw
in
the rear
of
the
unit,
but
do not tighten it .
7. Install
the two
end
caps by
hooking
the
rear
tab
of
each
into
each
end
of
the cover.
8.
Holding the end
caps
in
place,
install
the
six
(6)
remaining screws.
Tighten
the rear-panel
screws which
are
next
to the
power connector.
Disassembly/
Reassembly
Removal
and Installation
of
Components
From
time
to
time,
it may
be necessary
to
replace
pots,
jacks, the
display,
or
other components. When
desoldering,
be
careful
not
to
overheat the
board,
use
all
caution
to
prevent
damage
to
the circuit
board,
traces
and pads.
When
installing
pots,
jacks ordisplays, make
sure
that
they
are
mechanically
flush
with the circuit
board
prior
to
soldering
in
place.
If
not
properly aligned,
stress can
be
placed on the new
components
and
the
board
—
resulting
in
early
failure
of the board and/or
component.
3-17
