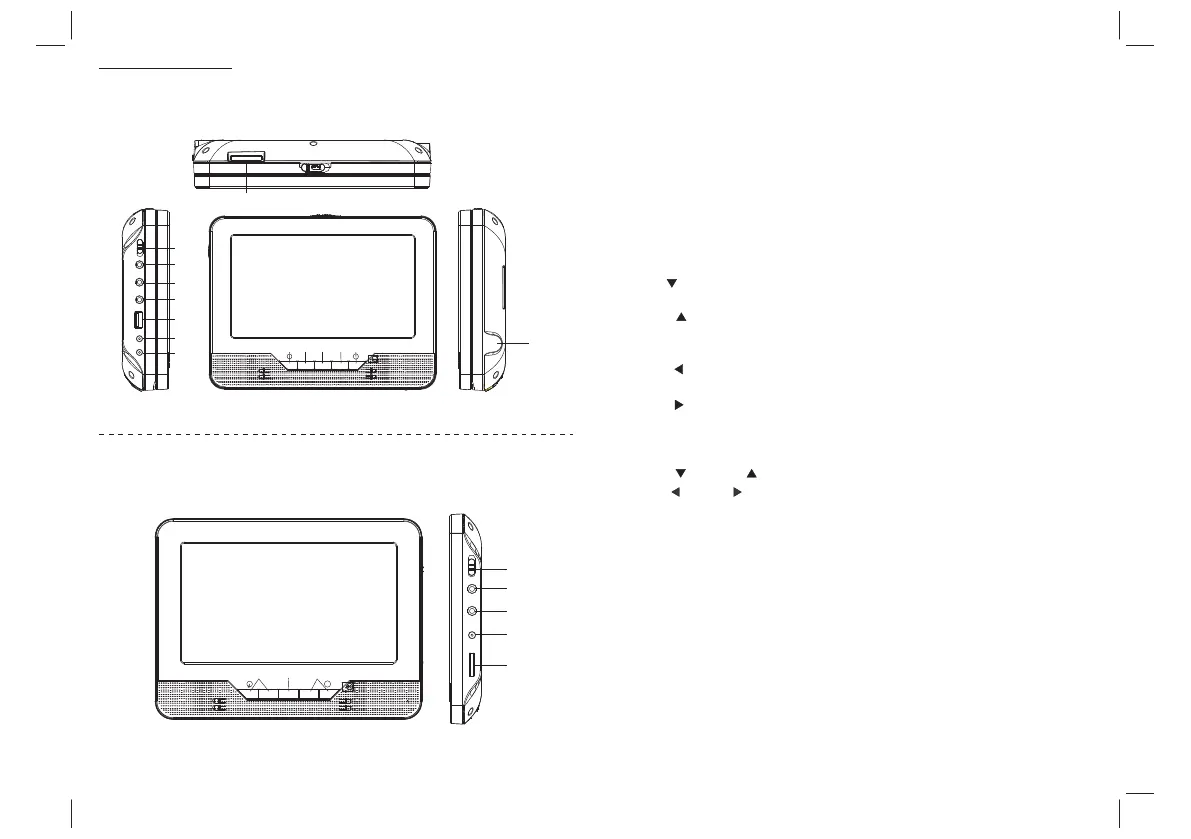

Main Unit
3
1.CARD SLOT
2. POWER ON/OFF
3. HEADPHONE OUT JACKS
4. COAXIAL
5. AV OUT
6. USB
7. DC OUT
8. DC IN 9-12V
9. / SOURCE
short press is DOWN,long press is SOURCE.
10. / DVD/DVB
short press is UP,long press is DVD/DVB.
11. OK
12. / VOL-
short press is LEFT, long press is VOL-.
13. / VOL+
short press is RIGHT, long press is VOL+.
14. ANT
15.MODE
16. DOWN ； UP
17. LEFT； RIGHT
18. POWER ON/OFF
20. HEADPHONE OUT JACKS
22. Volume Rotary
19. AV IN
21. DC IN
MASTER TFT SCREEN
SLAVER TFT SCREEN
1
2
3
4
5
6
7
8
14
18
19
20
21
22
9
10
1112
13
15
16
17
PDVT-163C
