47

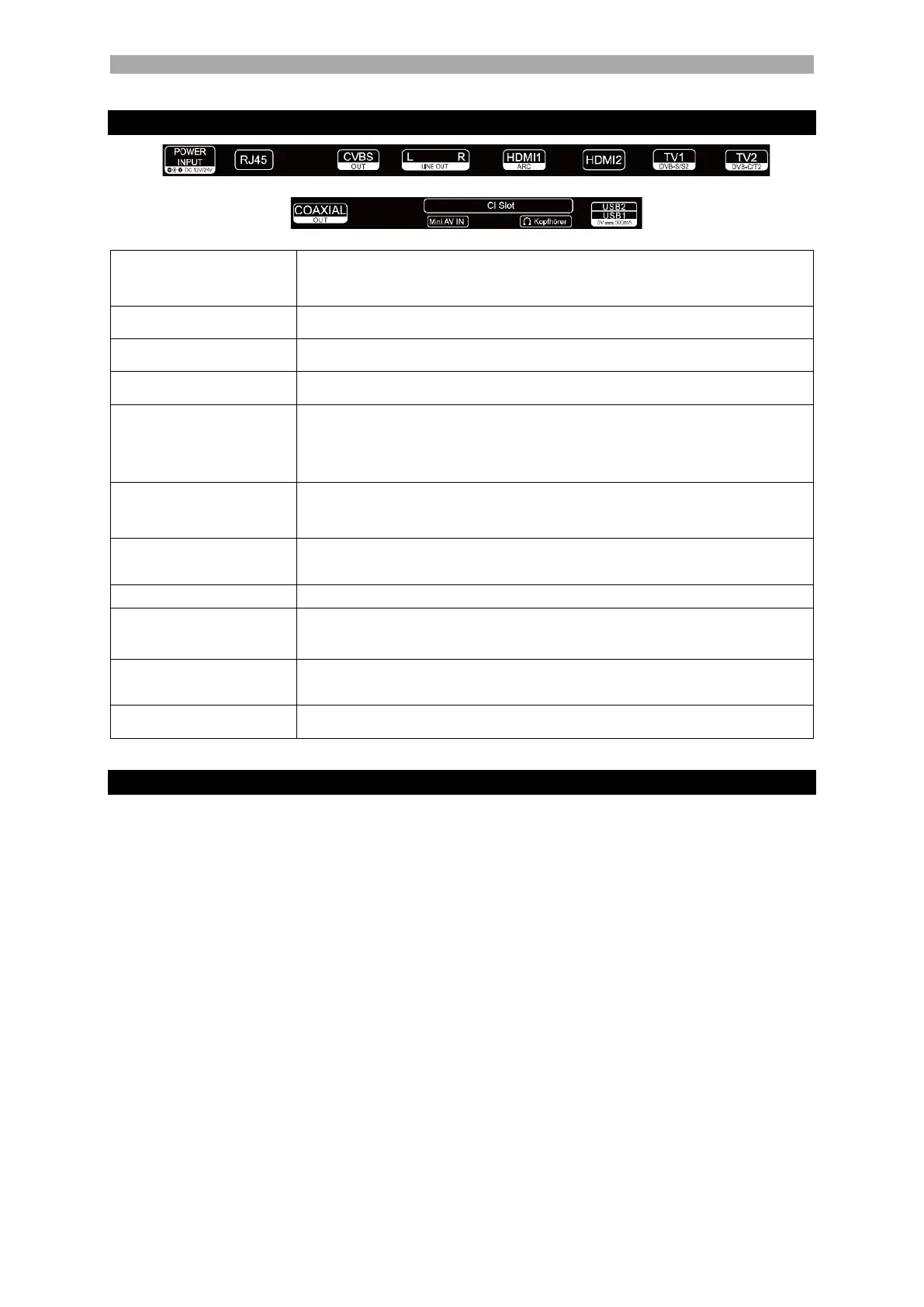

CONNECTIONS ON THE UNIT
POWER INPUT
(DC IN: 12V / 24V)
Mains connection for the power supply unit or the 12V car
adapter.
RJ45
Connection for the LAN cable.
CVBS OUT
Only mirrors the TV picture (no sound) from the mini AV input.
L/R LINE OUT
Cinch audio output. For connecting external audio devices.
HDMI 1 (ARC)
HDMI 2
Connection for an external HDMI device.
e.g. Blu Ray player / soundbar.
HDMI 1 is ARC capable.
TV1 (DVB-S/S2)
TV2 (DVB-C/T2HD)
TV1: Connection of the satellite antenna.
TV2: Connection of the DVB-T antenna or the cable system.
COAXIAL (OUT)
Digital audio output for external audio devices (e.g. amplifiers or
soundbars).
CI+SLOT
Slot for CI+ modules for decoding encrypted TV programmes.
MINI AV IN
Connection of external AV devices via adapter (not included)
e.g. video recorder
HEADPHONES
3.5mm headphone jack. When used, the internal speakers are
muted.
USB (5V 500mA)
2x USB connection for USB sticks and hard disks (max. 1TB).
REMOTE CONTROL
The remote control uses infrared waves (IR). Hold the remote control in the direction of the
TV set. If the remote control is out of range or angle, the remote control may not work
properly.
