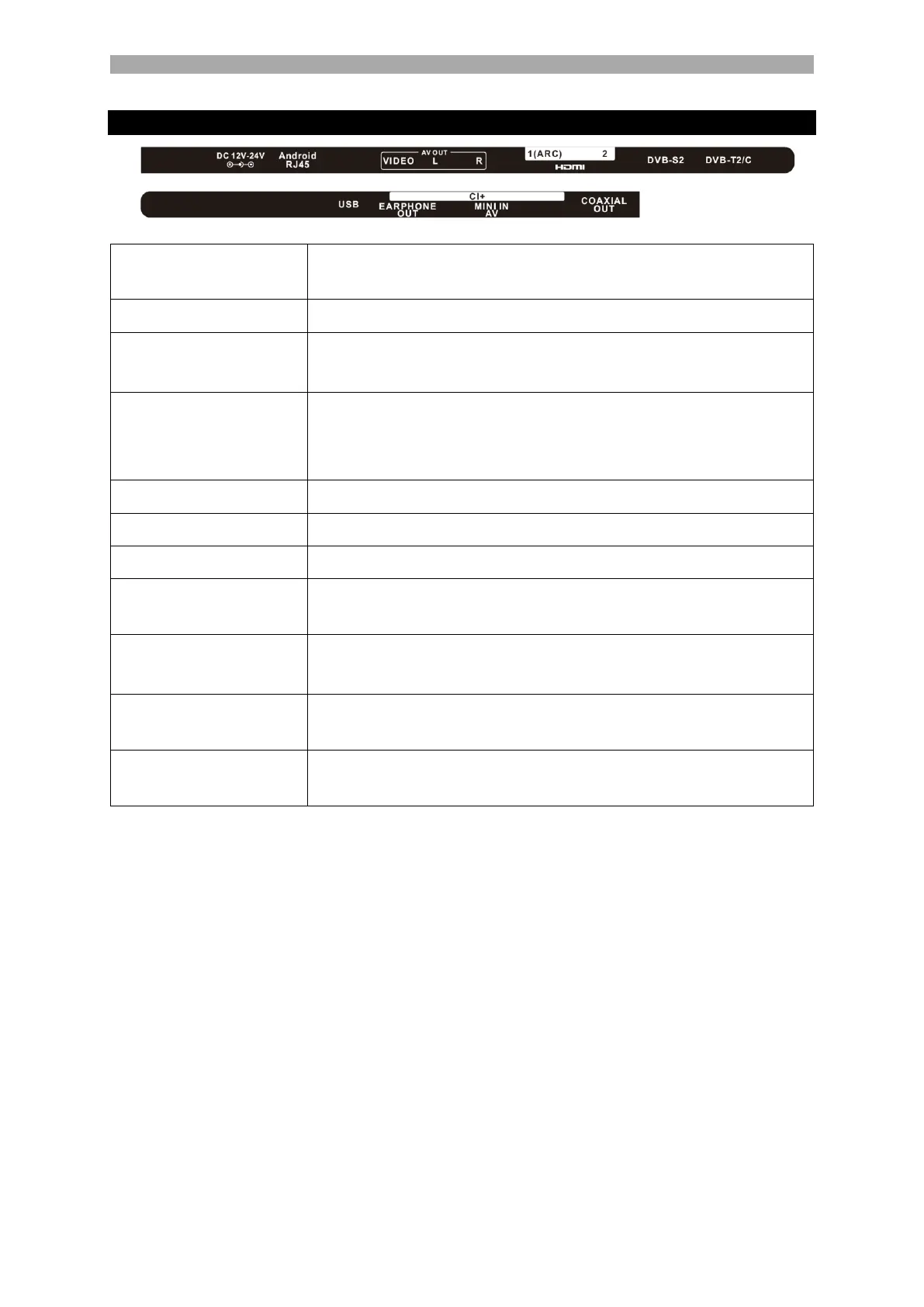

CONNECTIONS ON THE UNIT
DC IN 12/24V
Main connection for the power supply unit or the 12V car
adapter.
RJ45
Connection for LAN cable.
AV OUT
Video: Mirrors only the TV picture (no sound) from the AV input.
L / R: Cinch audio output. For connecting external audio devices.
HDMI 1 / HDMI 2
Connection for an external HDMI device.
e.g. Blu Ray player / soundbar.
HDMI 1 is ARC capable.
DVB-S2
Connection of the satellite antenna.
DVB-T2/C
Connection of the DVB-T antennas or the cable system.
USB
2x USB connection for USB sticks and hard disks (max. 1TB).
EARPHONE (OUT)
3.5mm headphone jack. When used, the internal speakers are
muted.
MINI AV (IN)
Connection of external AV devices via adapter (not included)
e.g. video recorder.
CI+
Slot for CI+ modules for decoding encrypted TV programmes
(not included).
COAXIAL OUT
Digital audio output for external audio devices (e.g. amplifiers or
soundbars).
