173

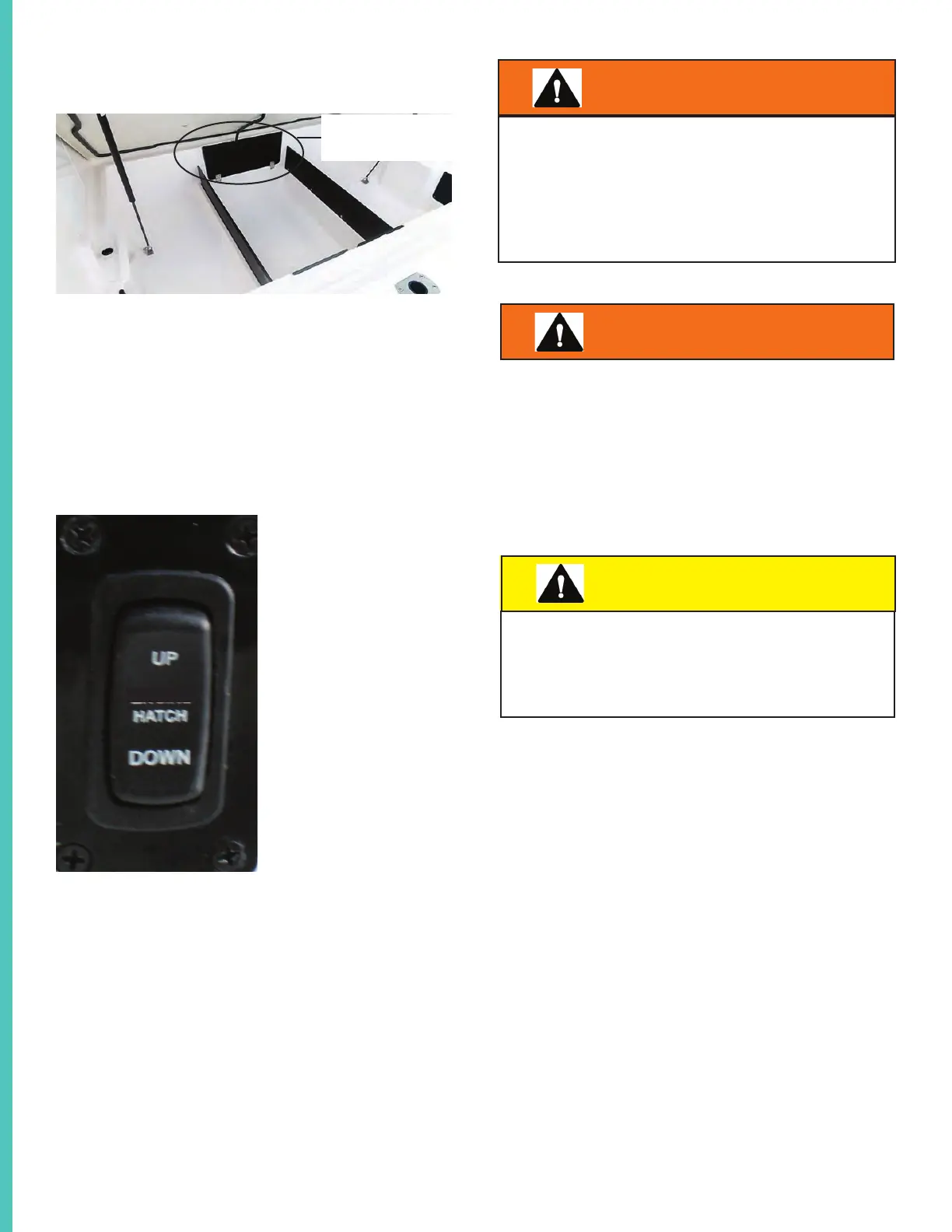

Lazarette Storage
The Lazarette compartment features bountiful stor-
age for water toys, extra safety equipment, and
cruising supplies. It operates through a set of ac-
tuators. It is accessed by using the hatch control
switch located in the aft cockpit.
Always ensure the
slide-away rear seat is
in the fully aft position
before activating the
hatch switch.
This will prevent pos-
sible damage to the
slide-away structure
and the hatch.
Pressing the upper
portion of the switch
will lift the hatch.
Pressing the down
portion of the switch will lower the hatch. Ensure
that the hatch is completely down before making
headway.
There is a hinged black locker in the forward cen-
ter section of the Lazarette for accessing equip-
ment including the fuel tank connections, hoses,
and hardware. Fuel system components need to
be inspected at least once annually,
Lazarette Actuator Control Box
This component integrates a breaker to control
the actuator cylinders used to open and close the
Lazarette storage compartment. There are relays
inside the control box. A breaker controls the up-
ward cylinder travel and the other breaker controls
the downward cylinder travel. The control breaker
protects the relay circuit wiring.
AVOID BODILY INJURY!
WHEN OPERATING HATCH
KEEP ALL BODY PARTS CLEAR
OF HATCH AND ALL HARDWARE.
CAUTION
WARNING
AVOID SERIOUS INJURY OR DEATH
FROM EXPLOSION OR FIRE
RESULTING FROM LEAKING FUEL!
INSPECT ENTIRE FUEL SYSTEM
AT LEAST ONCE A YEAR.
WARNING
AVOID SERIOUS INJURY OR DEATH
FROM EXPLOSION OR FIRE!
NEVER STORE FUEL
OR FLAMMABLE LIQUIDS
ON BOARD.
FUEL SYSTEM
ACCESS
