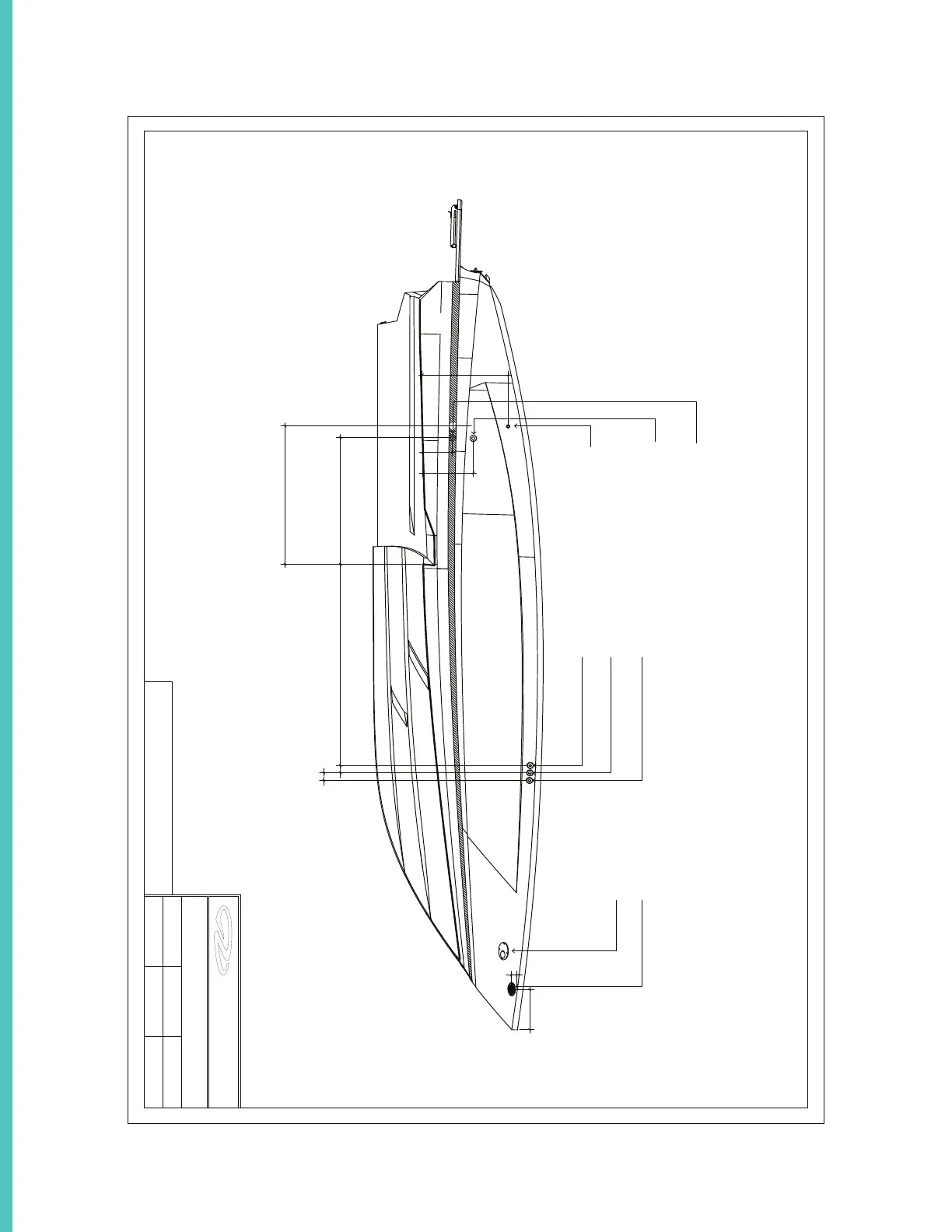

TYPICAL LS SERIES HULL HARDWARE LS6 SHOWN
17 13/16
48 1/16
Bilge Pump Drain Thru Hull; 1-1/8" W/Barb - 316 S.S./ Plastic Part No.30145 Drill Hole Size: Ø 1 3/8" Hose Size: Ø 1 1/8"
76 5/16
Center Ballast Bag Thru Hull
15 1/4
AFT STBD Ballast Bag Thru Hull
52 7/16
2
AFT Port Ballast Bag Thru Hull
2800 Light
2 7/8
30 3/16
STBD Side
2 7/8
10 3/8
Horn
Fuel Tank Vent (2 Pieces) - 90 Deg 24 STD PK Part No. 12753 Drill Hole Size: Ø 3/4"
Cockpit Drain Thru Hull; 1-1/2" W/Barb - 316 S.S./Plastic Part No. 30146 Drill Hole Size: Ø 1 5/8" Hose Size: Ø 1 1/2"
-
PAGE:
DATE:
APPROVED BY:
1 OF 4
2/12/2018
Spencer M.
CVL
PROPRIETARY AND CONFIDENTIAL: THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF REGAL MARINE INDUSTRIES. ANY REPRODUCTION IN PART OR AS WHOLE WITHOUT THE WRITTEN PERMISSION OF REGAL MARINE INDUSTRIES IS PROHIBITED.
REVISION:
DRAWN BY:
DRAWING TITLE:
2300 JETPORT DRIVE ORLANDO, FLORIDA 32809 TEL (407) 851-4360
REGAL MARINE INDUSTRIES
ALL RIGHTS RESERVED
DWG. NO.:
LS6 (MH) Hull Hardware
