INSTRUCTIONS
A. Lithium Battery Installation
1. Before installing the lithium battery, please keep the power switch in
the "O" position and install the lithium battery into the battery slot
of the cutting machine. Please pay attention to the insertion
direction of the battery.
B. Turning on the Cutting Machine
1
. The power switch is located below the handle.
2. On in th
e "I" position and off in the "O" position.
3. Dou
ble click the "speed" button to start the blade.
C. S
etting the Speed
1. Adjust the speed using the multifunction key above the finger-
o
perated handle.
2. S
peed can be set to five levels. 800/950/1100/1250/1400RPM.
j
B
C

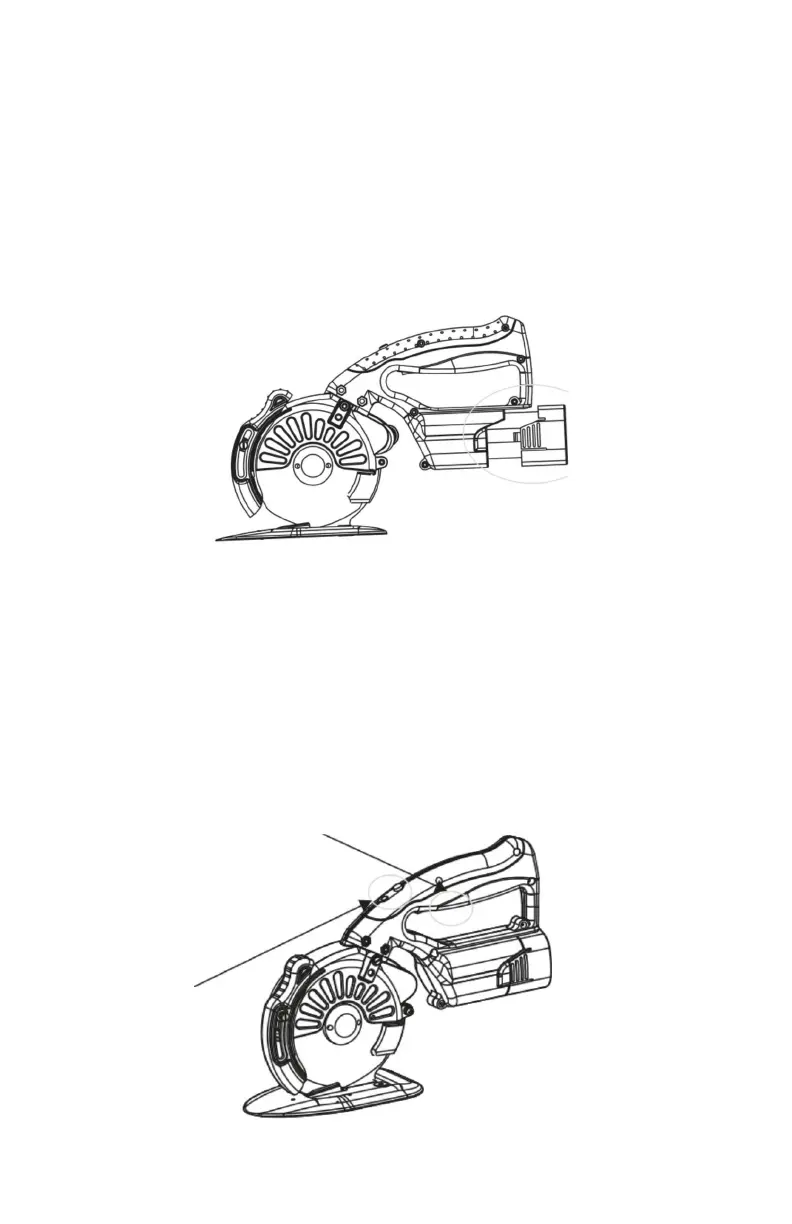

Figure 1.
Figure 2.
2
IMPORTANT: Check blade screw before use. If blade is loose, see section G to
reset the blade
