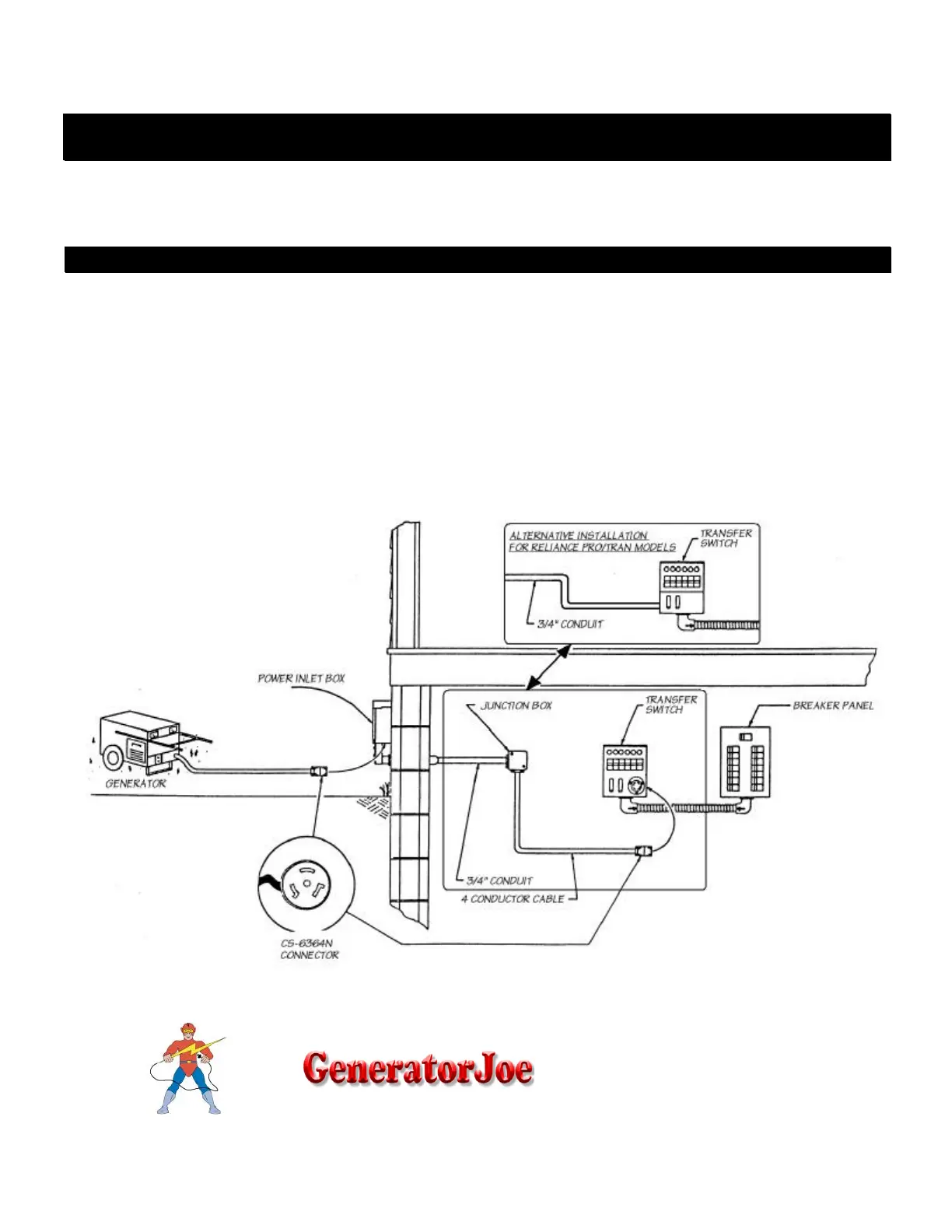

INSTALLING A REMOTELY LOCATED POWER INLET BOX FOR CONNECTION DIRECTLY TO A
HARD-WIRE TRANSFER SWITCH OR PANEL:
Installation will generally be as described above, except that the wiring can be run directly to the transfer switch or
panel. Wire connections are to be made at the transfer switch or panel according to manufacturer's instructions.
PREPARING A CORD FROM THE GENERATOR TO THE POWER INLET BOX:
Using a 4-conductor 50 Amp. portable cord suitable for the purpose, attach a male plug matching the configuration of
the generator outlet to one end, and a Type CS-6364N connector (which will mate with the power inlet in the power
inlet box) to the opposite end.
Following the wiring device manufacturer's instructions, wire the generator plug and the CS-6364N connector as
follows:
Red and black wires to the brass terminals marked "X" and "Y".
White wire to the nickel-plated neutral terminal marked "W".
Green wire to the green ground terminal marked "G".
